PL520 Diodes - What Host Will YOU Use?

mhemling33

Active member
Joined
Oct 19, 2012
Messages
981
Points
28
I'm going real small, I'll buy a diode for myself after we get the results from the GB ones.

I would show you what host I'm going to be using but it's a custom lathed one I'm purpose building for this, fixed focus :)
I'm aiming to get a 50mW green laser in the smallest space possible, still debating on if I should use CR2's or AAA or 10440. I would go even smaller but I want to have a decent amount of time before I have to recharge.
Go to 1:07 and check out this small little red I got from daguin, I think it will be harder to go smaller then this and it is focusable ;)





Wolfman29

Well-known member
Joined
Jan 14, 2011
Messages
3,828
Points
63
Why would you want something small? With something big and hunky, this thing should have no duty cycle ^_^


mhemling33

Active member
Joined
Oct 19, 2012
Messages
981
Points
28
Why would you want something small? With something big and hunky, this thing should have no duty cycle ^_^
Well as you can imagine I don't think he was worried about duty cycle when building this. I bought it from his recent sale and didn't realize how small it actually was but I love it. You are good with a 30sec cycle plus the batteries are so small they look like fake mini relics. How many 250mw reds are there out there that are smaller then your pinky and can even be adjusted for burning! Up until a couple of weeks ago this was my most powerful red! So to sum it up I didn't build it and I don't know exactly why daguin did it but i love it and thats all that matters lol

Last edited:

IsaacT

Well-known member
Joined
Aug 25, 2010
Messages
5,947
Points
83
Why would you want something small? With something big and hunky, this thing should have no duty cycle ^_^
I think for the 520nm diodes we aren't too worried about Duty Cycles....well, I am not anyway. At only 200mA I don't think it will heat up too terribly much.


ARG

Well-known member
Joined
Feb 27, 2011
Messages
6,892
Points
113
I think for the 520nm diodes we aren't too worried about Duty Cycles....well, I am not anyway. At only 200mA I don't think it will heat up too terribly much.
They take 8V though.

8V*200mA - 0.05W = 1.55W heat + driver heat.
(for reference a 445nm diode at 1A is about double that)


Fiddy

Well-known member
Joined
May 22, 2011
Messages
2,745
Points
63
Will be using the RL-118 Stainless steel with a copper heatsink and module, jayrob knurled focus adapter.


Last edited:

ApexProxy

New member
Joined
Jul 8, 2012
Messages
1,772
Points
0
They take 8V though.

8V*200mA - 0.05W = 1.55W heat + driver heat.
(for reference a 445nm diode at 1A is about double that)
Mine at 300mA only barely closes in on 7V. At 200mA its just over 6V.


IsaacT

Well-known member
Joined
Aug 25, 2010
Messages
5,947
Points
83

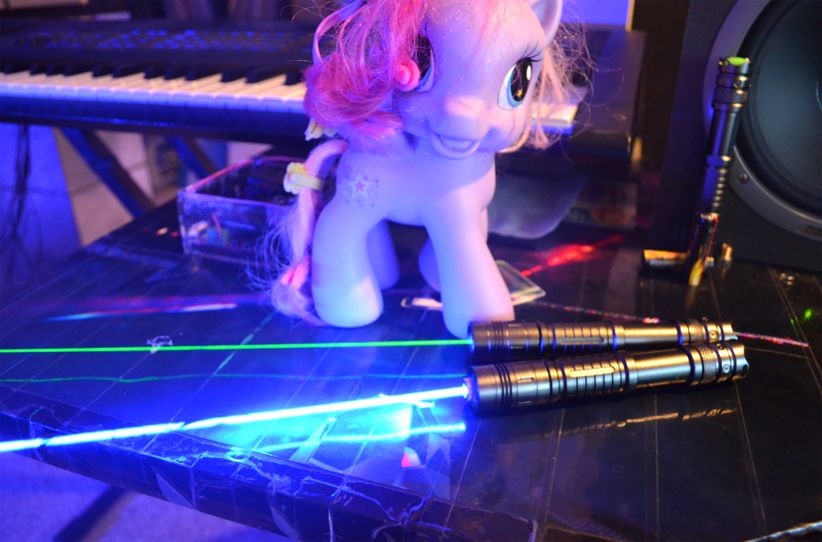

Danefex, what host is that?! that looks magnificent! I feel like I am going to start spending more on hosts than lasers lol.


danefex

Well-known member
Joined
Aug 30, 2010
Messages
1,605
Points
63
My 3 yr old daughter loves MLP, I'm ashamed to admit I know all their names & personalities after watching months of it on TV with her :crackup:

:beer:
