Custom 405 nm laser transit

bdgreenb

Active member
Joined
Jul 20, 2011
Messages
722
Points
28
In your sig put the words between the color tags:
your colored text here [color]




Joined
Apr 26, 2010
Messages
4,182
Points
83
The second color would be [/COLOR] Not sure if caps matters.

Also, an update, MrCrouse and I are working this, should turn out nice if we can all decide on some things. Ha, all joking aside, this should turn out pretty nice.


trussmonkey25

Active member
Joined
Nov 12, 2011
Messages
927
Points
43
well this is a collaborative project. if Mr crouse would sign the chassis and you engrave the average power of the completed unit. not just a sticker like most chinese lasers. that would make it awesome. If you ever watch Sons of Guns on history channel you will know what I mean.

Joined
Apr 26, 2010
Messages
4,182
Points
83
I don't have the capabilities to engrave. I live in a dorm, no power tools ;)

I know one thing, this is going to be pretty awesome by the end. From what I'm envisioning so far, I will enjoy building this. I've wanted to do something similar for a while.

Last edited:

Mrcrouse

Well-known member
Joined
Jul 10, 2009
Messages
1,476
Points
63
We don't have engraving capabilities, but we could probably stamp it on the chassis, which is basically the same.


trussmonkey25

Active member
Joined
Nov 12, 2011
Messages
927
Points
43
you can use a small sharp knife since this is soft aluminum or one of those little electric inscribers you can get at any hardware store. a great big sharpened nail will work too. just practice your name on something else

Joined
Apr 26, 2010
Messages
4,182
Points
83
Simply carve soft aluminum with a nail or knife. I'm not going to dull one of my knives, or go out and get a nail, to carve my name into this soft aluminum. On top of that, it would be MAYBE 1/64th of an inch deep, MAYBE. It's not really worth the benefit, but, if you REALLY want it. I can work something out.

Last edited:

trussmonkey25

Active member
Joined
Nov 12, 2011
Messages
927
Points
43
We don't have engraving capabilities, but we could probably stamp it on the chassis, which is basically the same.
of course your maker's mark would be in order. do you know what i mean by lamb's tongues in the edges?


Attachments

Last edited:

Mrcrouse

Well-known member
Joined
Jul 10, 2009
Messages
1,476
Points
63
Do you what actual lamb's tongue, or just a curve cut into the side? Those are two completely difference things, and the curve isn't really an easy thing to mill out either.

Last edited:

trussmonkey25

Active member
Joined
Nov 12, 2011
Messages
927
Points
43
With all these add-ons you want, these is no way you are getting this made for $500-$600. Especially if you want me to do special edge-profiling machining with special end-mills. Machining aluminum isn't the same as woodworking.
ok what is your price for what i have.. i think it will be worth it judging your other work i've seen. The edges , Lamb's tongues, just needed to be done with a hand held belt sander and vice and have a rough texture for grip and cooling
the other things are machined precisely

Last edited:

Mrcrouse

Well-known member
Joined
Jul 10, 2009
Messages
1,476
Points
63
ok what is your price for what i have.. i think it will be worth it judging your other work ive seen

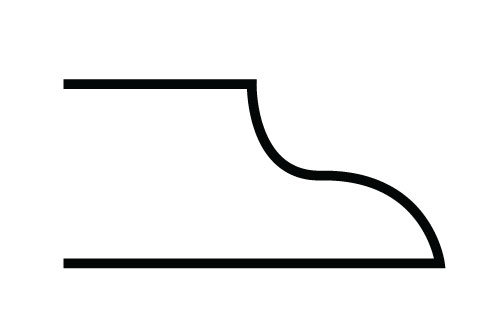

Well, I don't even understand what kind of edge profiling you are talking about, this is lamb tongue edge profile:


Last edited:

trussmonkey25

Active member
Joined
Nov 12, 2011
Messages
927
Points
43
It would be worth the money.. I've seen your work.. the Lamb's tongues can be done with just a hand held belt sander. I want a little texture from the sixty grit paper


Mrcrouse

Well-known member
Joined
Jul 10, 2009
Messages
1,476
Points
63
You can't just take a belt sander to a block of aluminum and magically shape it. You can't grind it either because aluminum clogs grinding wheels. It is possible to mill an edge profile like that though with a corner rounding endmill and a ball endmill. I don't have the right size and shape endmills to do that though, but it can be done if we need to order them. I'd recommend just round the edges off and that being it. I don't see why you need that fancy edge profile. Plus it is just going to require more material further increasing cost.

Last edited:

trussmonkey25

Active member
Joined
Nov 12, 2011
Messages
927
Points
43
i understand about the grinding wheels..i'll use a draw knife for the lamb's tongues then. i have dealt with soft aluminium. everything else I want

Last edited:

trussmonkey25

Active member
Joined
Nov 12, 2011
Messages
927
Points
43
no thats an ogee curve.. i posted a couple thumbnail sketches on the first page

Last edited:

trussmonkey25

Active member
Joined
Nov 12, 2011
Messages
927
Points
43
a lamb's tongue is made by using the draw knife at a 45 to the edge starting from one end and pulling to the other. often the woodworker stops at the center of the piece and begins again drawing from the other end making a nice continuous line. think of the tables and woodwork at a seafood restaurant. it is a crude simple edge treatment.
