What is this? O_____O

Ears and Eggs

Super Moderator
Staff member
Joined
Oct 1, 2007
Messages
2,531
Points
113

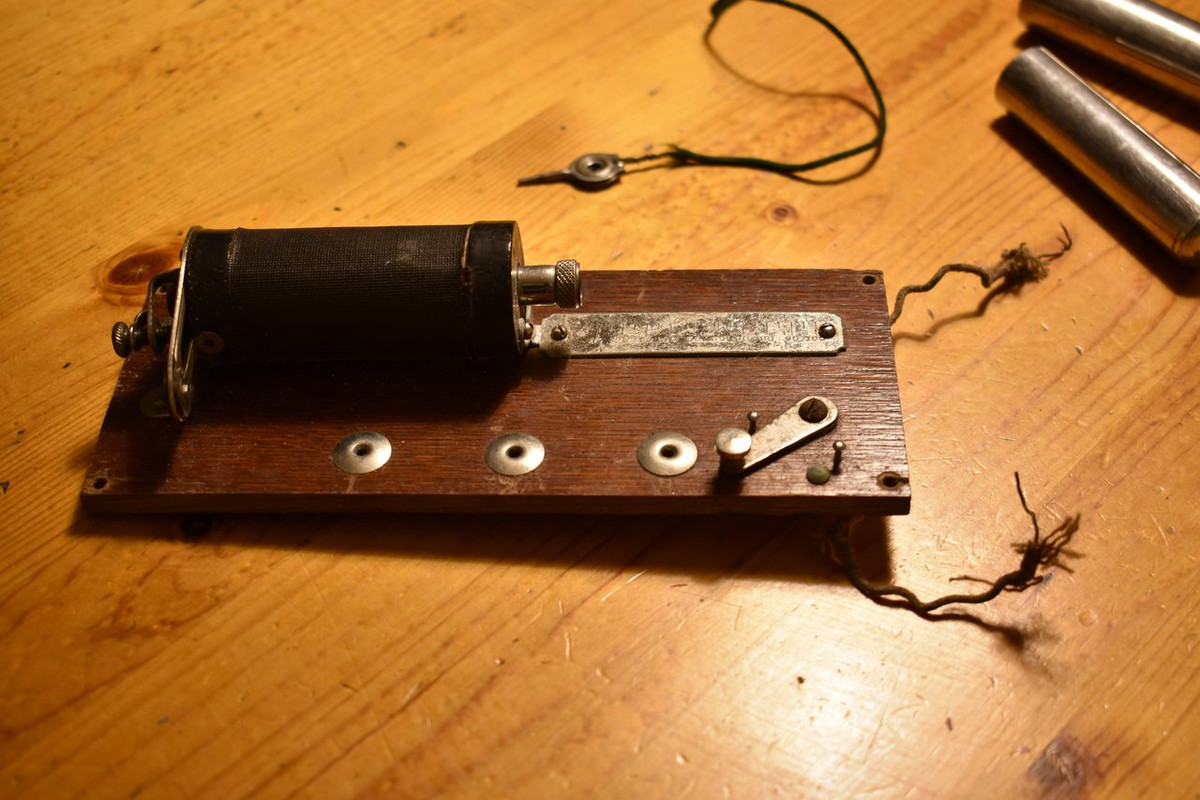

Found this item packed away while sorting through some old stuff in my basement. It belonged to my grandfather, quite possibly it's over 100 years old. It came all packed in the wooden case pictured with the No 6 Dry Cell battery under the other parts.













Last edited:



WizardG

Well-known member
LPF Site Supporter
Joined
May 9, 2011
Messages
868
Points
63

Cyparagon

Well-known member
Joined
Sep 12, 2007
Messages
9,837
Points
113
Oh sweet! I love old-school medical quackery gadgets. I'd guess it uses a vibrator (no, not that kind, THIS kind). Google tells me a no6 is 1.5V so a AA should bring it back to life if you want a bit of tingle in your life :sneaky:


icecruncher

Well-known member
Joined
Jan 2, 2008
Messages
1,405
Points
83
looks like something along the lines of the old violet wands and shock therapy.

Just add to that a container of mercury, some opium and a bottle of Dr Clark Stanleys' miracle tonic and you have a one man road show medical team. Will cure syphilis, warts, toothaches, woman fevers and grow hair after one treatment.

I bought a museum quality geissler tube a few years ago, and while searching I would run across this kind of stuff all the time on Ebay.

Some of them are worthy decent chunk of change.

Last edited:

Ears and Eggs

Super Moderator
Staff member
Joined
Oct 1, 2007
Messages
2,531
Points
113
Very cool, thanks for the responses. Think I will try to power it up and see what happens. I don't have a pacemaker, so I can take a bit of a shock I guess. :D

I'm guessing the two wires to the right here connected to the battery? Any idea if polarity matters on this device?

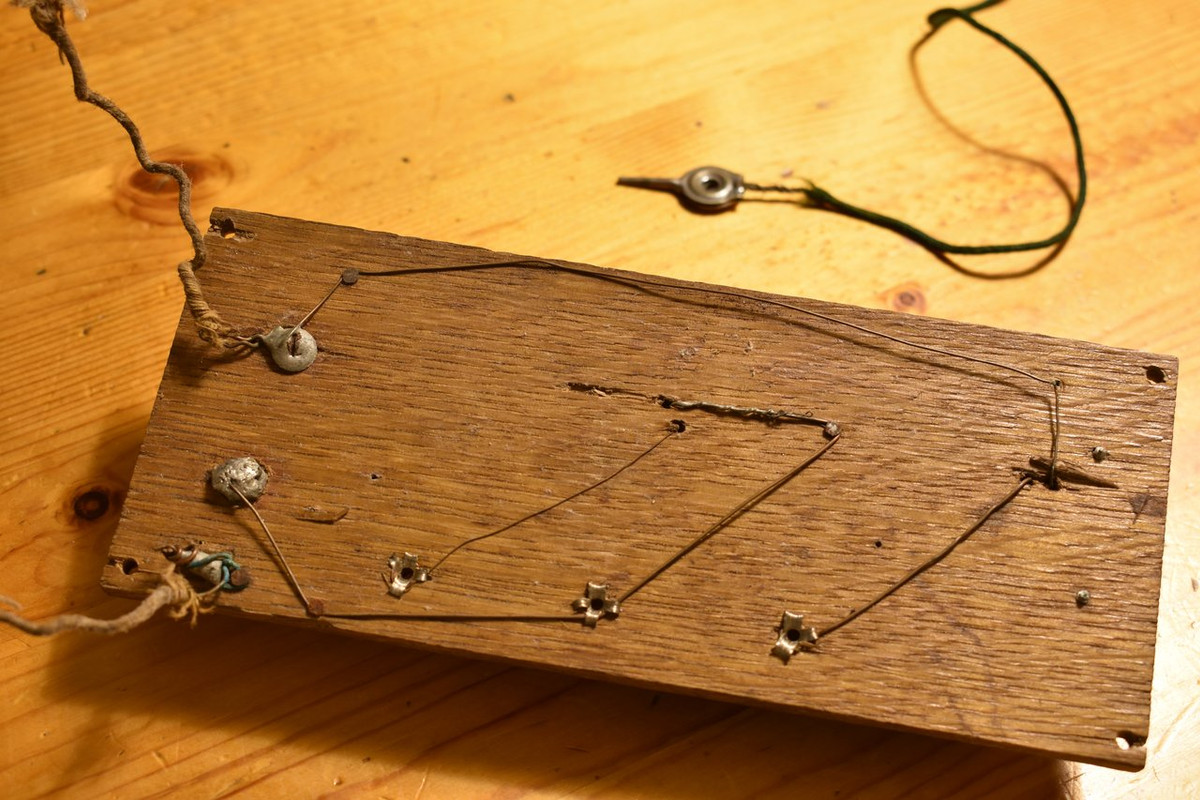

This is what the back of the board looks like:

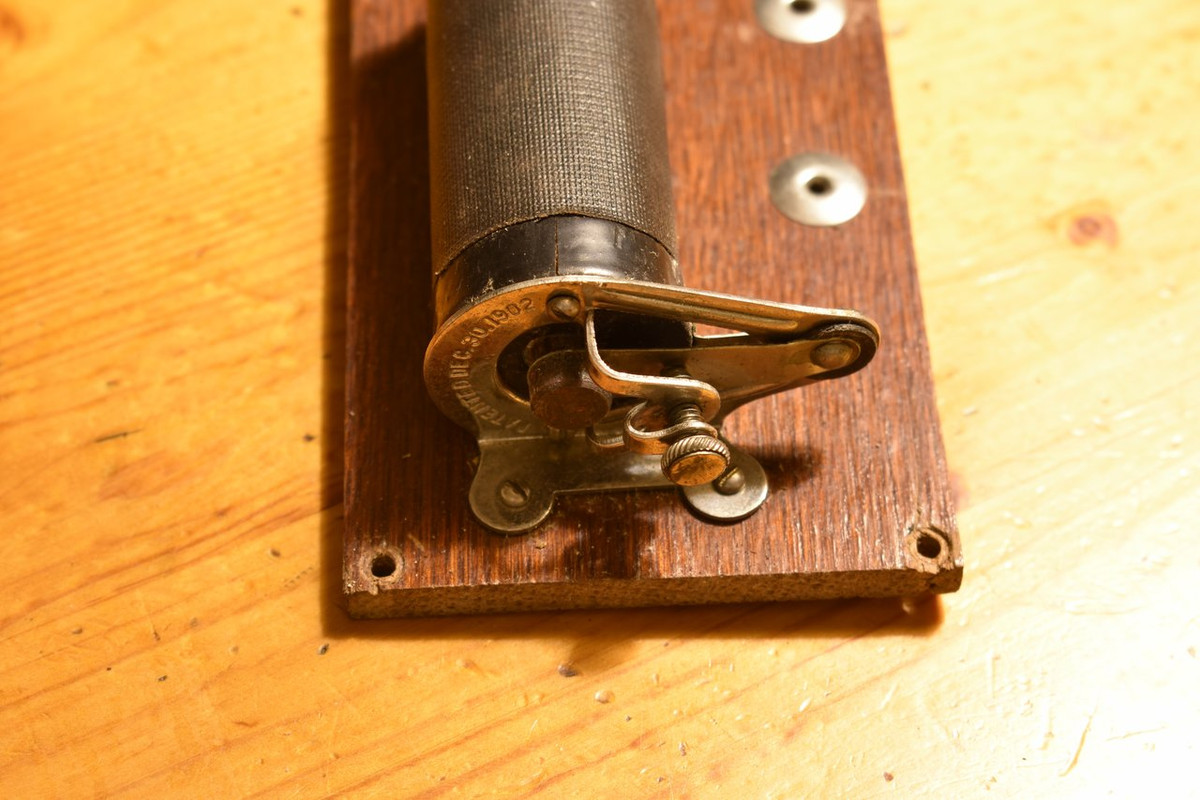

The center of the black cylinder seems to be adjustable, not sure if this controls power or what?

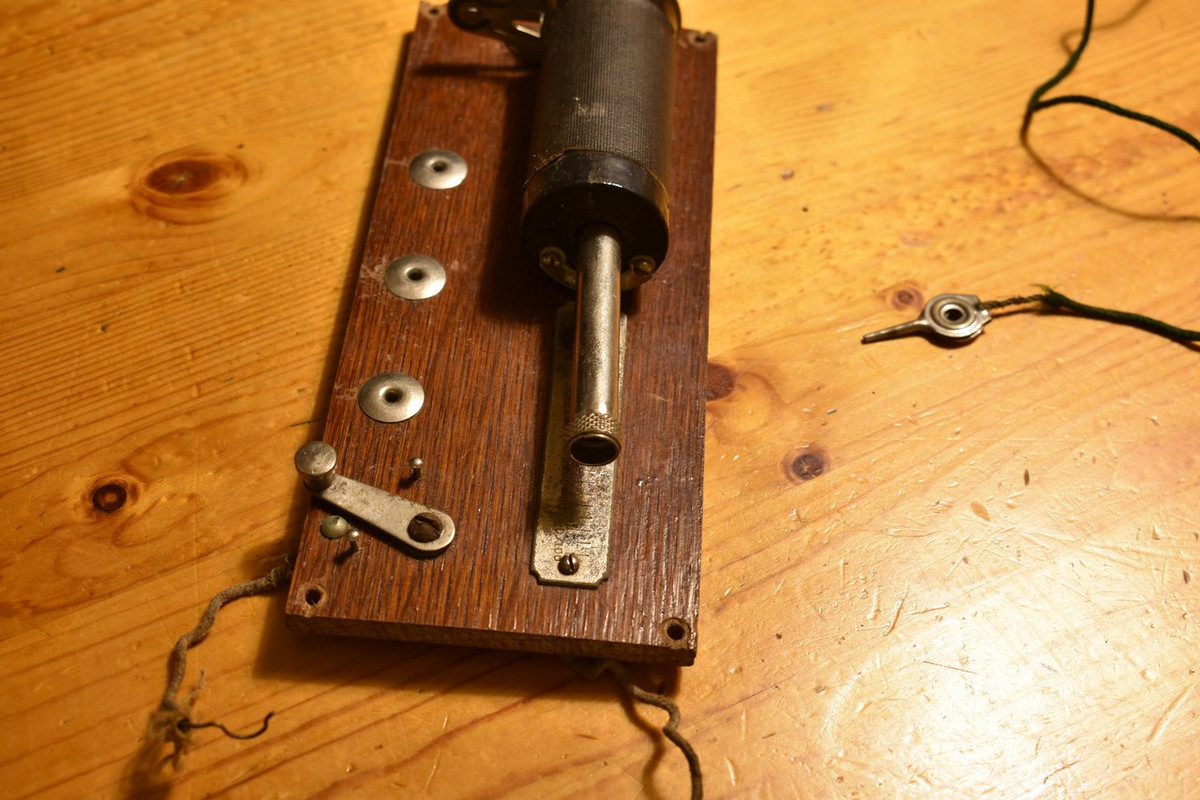

This is the other end of the black cylinder:



icecruncher

Well-known member
Joined
Jan 2, 2008
Messages
1,405
Points
83
Very cool, thanks for the responses. Think I will try to power it up and see what happens. I don't have a pacemaker, so I can take a bit of a shock I guess. :D

I'm guessing the two wires to the right here connected to the battery? Any idea if polarity matters on this device?
Not sure, but with the wiring like it is and not knowing, I would definitely have someone else in the room nearby just in case you light up, especially if it is some form of a leiden jar.

Wish you the best.


Cyparagon

Well-known member
Joined
Sep 12, 2007
Messages
9,837
Points
113
It's hard to tell without being able to poke it with a multimeter, but that indeed looks like an oscillating solenoid. Presumably it operates something like this: Applying current draws the plunger into the tube, the momentum of the plunger strikes the switch in the rear, which opens the switch, which interrupts the current to the coil, which causes the field to collapse and produce a voltage pulse

I don't think polarity would matter, since there appear to be no polarized components. However, metallurgy has come a long way in the last century, and old copper is known for being rather brittle, and in a high vibration environment like this, the coil may be open. Winding your own would be trivial, but it really is a pointless machine to begin with.


WizardG

Well-known member
LPF Site Supporter
Joined
May 9, 2011
Messages
868
Points
63
You can buy the 'modern' version of this circuit in one of those novelty 'shock' lighters.


kecked

Active member
Joined
Jun 18, 2012
Messages
573
Points
43
I think the wires attach to you and then you move the cylinder over your area of interest....
I’d try it on a multimeter first.


Seoul_lasers

Well-known member
Joined
Jul 4, 2008
Messages
2,658
Points
113
Found this item packed away while sorting through some old stuff in my basement. It belonged to my grandfather, quite possibly it's over 100 years old. It came all packed in the wooden case pictured with the No 6 Dry Cell battery under the other parts.














This is an electrostimulation machine from the early ~1900s ( it appears to be)
the battery shown is probably from the late 40's early 50s..
These quack medical devices actually started showing up around the mid-late 19th century ( 1850/60s)

The electro stimulation machine was used to relieve sore muscles. There exists no defibrillator form this era - not until 1978.
Defibrillators require huge impulse currents to work 100's of Amps.

Is there any markings on the box? ---- nmvmd , I see an engraving date of 03/1902
