Beam size meaurements

JLM

New member
Joined
Dec 4, 2011
Messages
269
Points
0
Great is around .6mrad. Good is around .8mrad. 1mrad is about average, 1.5-2mrad is typical of those stick/crown upgrade lasers.
:thanks:


Blord

New member
Joined
Dec 24, 2007
Messages
5,368
Points
0
You know that if the divergence gets lower the beam thickness also grows. Expect a pretty thick beam for the green laser with a small divergence of 0.6mrad.
There is no way around the laws of physics. :)


JLM

New member
Joined
Dec 4, 2011
Messages
269
Points
0
You know that if the divergence gets lower the beam thickness also grows. Expect a pretty thick beam for the green laser with a small divergence of 0.6mrad.
There is no way around the laws of physics. :)
Also; Why my Krypton in low mode is 1.0mRAD but in High is 2.0mRAD?
:thanks:


ARG

Well-known member
Joined
Feb 27, 2011
Messages
6,987
Points
113
You know that if the divergence gets lower the beam thickness also grows. Expect a pretty thick beam for the green laser with a small divergence of 0.6mrad.
There is no way around the laws of physics. :)
My 300mW 532nm has a 0.6mrad beam with a 2mm diameter :D


JLM

New member
Joined
Dec 4, 2011
Messages
269
Points
0
My 300mW 532nm has a 0.6mrad beam with a 2mm diameter :D
OK, let me see. In less divergence the beam travels more distance, is visible faraway and burns better, but in more divergence the beam look fat and stronger for the user. Look like a super spot light. :confused:


chipdouglas

Well-known member
Joined
Dec 23, 2008
Messages
4,011
Points
63
It doesn't necessarily burn better. Remember you are expanding the beam, so you are increasing your area but still using the same power. The best burning I believe would be to have an adjustable lens that let's you get your beam to a focal point. Now if you have a really powerful laser, yes a beam expander could increase your burning distance. With a beam expander, you are making the beam fatter, and by doing this you decrease divergence. But only with a beam expander. You don't decrease divergence by making your beam "fatter" via defocusing lens.

With a lot of divergence (defocused lens for widest spot at said distance) yes laser would be like an area light. But the. Beam is so wide you probably wouldn't see it at all.




OK, let me see. In less divergence the beam travels more distance, is visible faraway and burns better, but in more divergence the beam look fat and stronger for the user. Look like a super spot light. :confused:


JLM

New member
Joined
Dec 4, 2011
Messages
269
Points
0
It doesn't necessarily burn better. Remember you are expanding the beam, so you are increasing your area but still using the same power. The best burning I believe would be to have an adjustable lens that let's you get your beam to a focal point. Now if you have a really powerful laser, yes a beam expander could increase your burning distance. With a beam expander, you are making the beam fatter, and by doing this you decrease divergence. But only with a beam expander. You don't decrease divergence by making your beam "fatter" via defocusing lens.

With a lot of divergence (defocused lens for widest spot at said distance) yes laser would be like an area light. But the. Beam is so wide you probably wouldn't see it at all.
Thanks. My Beam look very well but I have a mountain 1/2 mile is front of my house. When I point to the mountain I can see the dot but look like a spot light. You can see my laser beam pictures here http://laserpointerforums.com/f39/price-droped-wl-krypton-300mw-250-more-79738-2.html#post1147005
:thanks:


ARG

Well-known member
Joined
Feb 27, 2011
Messages
6,987
Points
113
The laser in my avatar (also the DPSS hillside album below) is the 0.6mrad 300mW 532nm one.

The beam was about a rulers length on the mountain.


chipdouglas

Well-known member
Joined
Dec 23, 2008
Messages
4,011
Points
63

ARG

Well-known member
Joined
Feb 27, 2011
Messages
6,987
Points
113
That is normal. Get your self a beam expander if you want better divergence. You can DIY one, but I don't know how.
IIRC bionic badger made a thread about making one out of a cheaply telescope.


F4GRX

New member
Joined
Jan 21, 2013
Messages
21
Points
0
I got this picture of my red beam on a black surface, exposure time 1/2000 of a second:


2 meter from the source, the dot was about ~5mm in diameter.

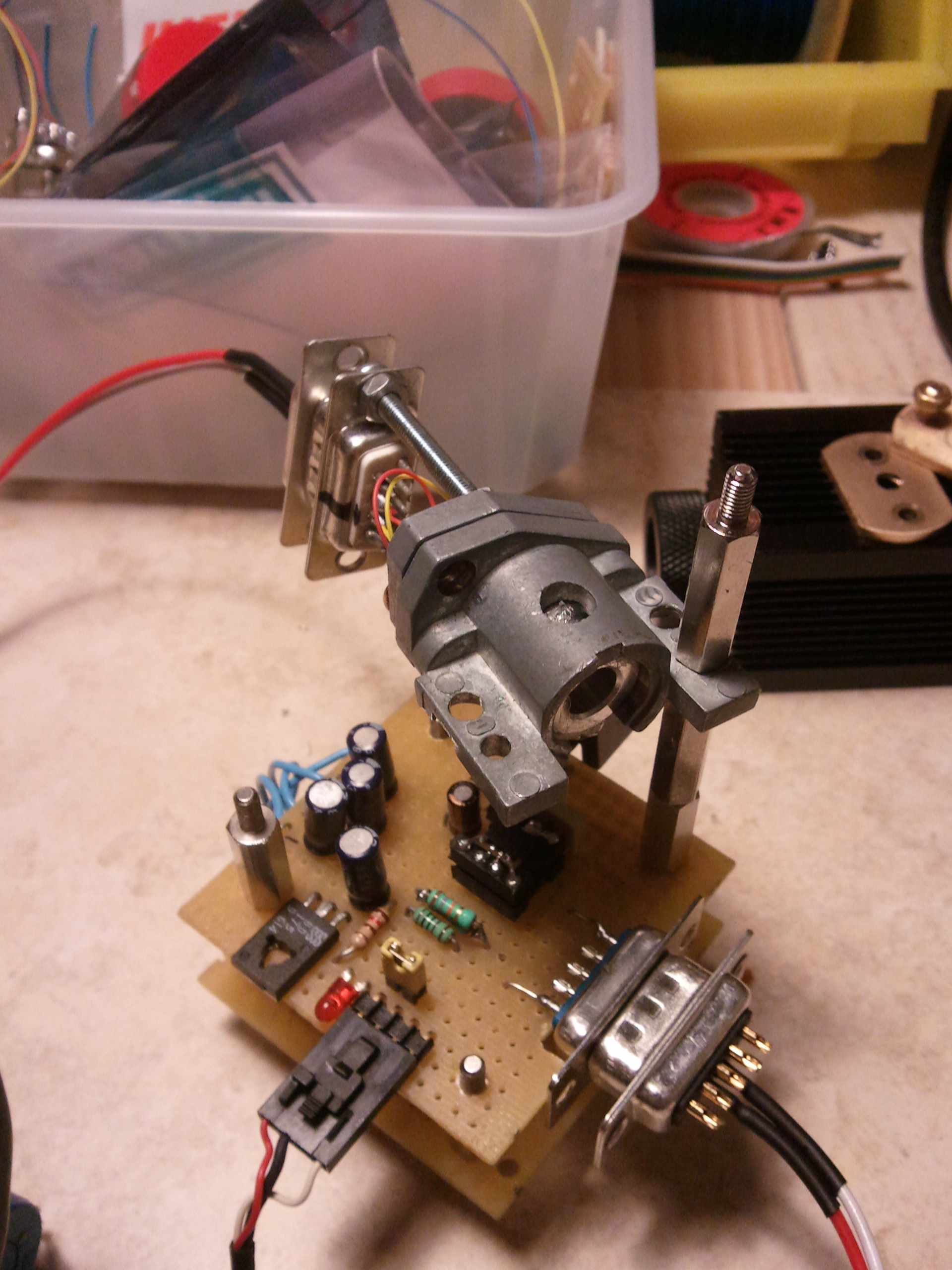

with this laser printer diode holder


power unknown, divergence unknown - and I don't really care, it was just a quick test, not meant to be optimal. I was just testing how to get beam pictures without saturating the ccd sensor :)

Last edited:

ARG

Well-known member
Joined
Feb 27, 2011
Messages
6,987
Points
113
That's a great picture of the dot! Thanks for sharing.


olsqueak

New member
Joined
Feb 2, 2013
Messages
27
Points
0
Hello,all lasers Lover,I'm new in this forum and I can see that some Lasers have more sized beam who make is beautifull to see.(Like Saber laser adapter for wicked laser artic or krypton S3).
When the Beam is bigger I think Dot don't goes to the same Range distance ?
How long distance the Dot can be see in a high power (1.3watts) pointer laser ?
In wicked laser website, I can read that Krypton S3 Dot can goes at 137KM distance it's Possible ? I can see a Picure taking from Spatial center, where we can see the green Dot from a Krypton S3....It very Impresed me.
I just order a 1.3watts Blue Laser from a member off this forum,I'm excited to reiceive it for looking how long distances I can see the Blue Dot.
Have good Vibes.
Thank's before for your help,friendly,Olsqueak.


mwang

Member
Joined
Jan 10, 2013
Messages
130
Points
18
Hello,all lasers Lover,I'm new in this forum and I can see that some Lasers have more sized beam who make is beautifull to see.(Like Saber laser adapter for wicked laser artic or krypton S3).
When the Beam is bigger I think Dot don't goes to the same Range distance ?
How long distance the Dot can be see in a high power (1.3watts) pointer laser ?
In wicked laser website, I can read that Krypton S3 Dot can goes at 137KM distance it's Possible ? I can see a Picure taking from Spatial center, where we can see the green Dot from a Krypton S3....It very Impresed me.
I just order a 1.3watts Blue Laser from a member off this forum,I'm excited to reiceive it for looking how long distances I can see the Blue Dot.
Have good Vibes.
Thank's before for your help,friendly,Olsqueak.
First off, wicked lasers is known for "lying." 137 KM is impossible for any handheld that I know of, as divergence on handhelds are, to say it plain and simple, bad. Heck, 50 KM is barely possible, if not impossible.
A 1.3 W blue laser should be very visible at night, you could probably hit something 5-10 miles away or more (correct me if I'm wrong). The beam should also be very impressive. Have fun and be safe with your new laser when it arrives!
