New collimator lens for Blue MM diodes




Alaskan

Well-known member
LPF Site Supporter
Joined
Jan 29, 2014
Messages
11,206
Points
113

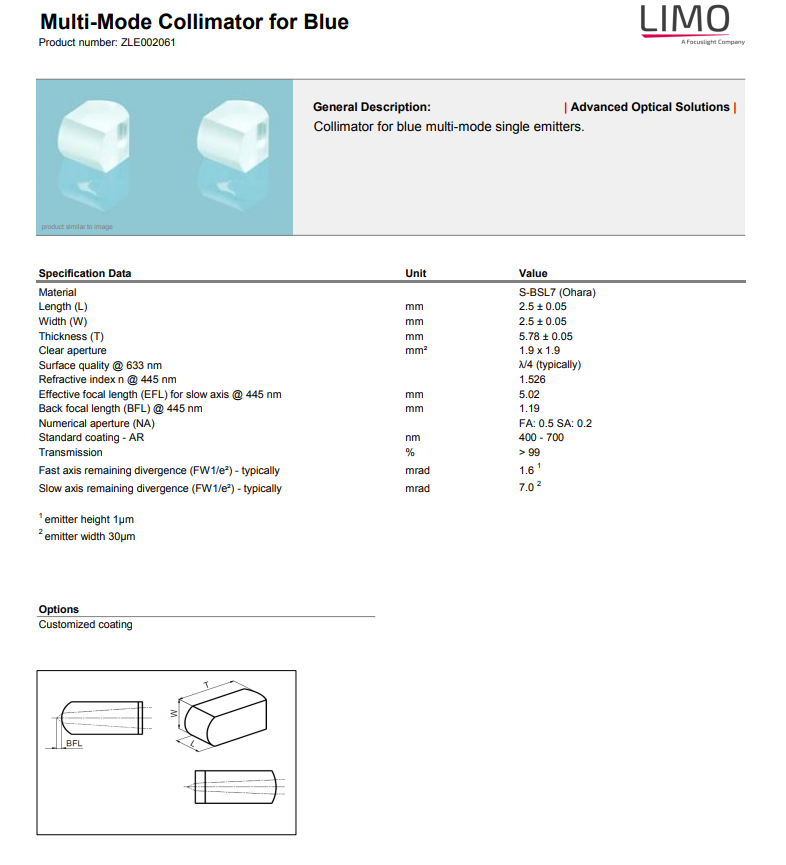

It's the same lens idea trussmonkey had posted a thread about, in essence it is a single piece cylinder pair.


BowtieGuy

Well-known member
LPF Site Supporter
Joined
Oct 14, 2012
Messages
5,747
Points
113
Agreed, testing with some of the diodes we use would be nice.
Hopefully, these won't cost an arm and a leg!


diachi

Well-known member
Joined
Feb 22, 2008
Messages
9,693
Points
113
It's the same lens idea trussmonkey had posted a thread about, in essence it is a single piece cylinder pair.

Yup, which means our usual lens fittings would be no use. Cylinder pairs don't work well with the lenses off axis unlike our usual choice of lenses, they'd need to be aligned and fixed in place.


BobMc

Well-known member
Joined
Apr 23, 2016
Messages
3,807
Points
113
Been looking at mirrors and lens, interesting???

Thanks for posting. :)


Alaskan

Well-known member
LPF Site Supporter
Joined
Jan 29, 2014
Messages
11,206
Points
113
I like it, +rep for bring the info here when I can. If these were larger would be better, they are only 2.5 mm on a side, very tiny. Would be awesome if made 6.3 mm diameter and placed into a long lens holder like we use in front of a G2 etc., Even better, a two section threaded lens holder, one end threaded to screw into our Axiz modules, the other end a few mm wider to allow more expansion of the slow axis.

Last edited:

diachi

Well-known member
Joined
Feb 22, 2008
Messages
9,693
Points
113
I like it, +rep for bring the info here when I can. If these were larger would be better, they are only 2.5 mm on a side, very tiny. Would be awesome if made 6.3 mm diameter and placed into a long lens holder like we use in front of a G2 etc., Even better, a two section threaded lens holder, one end threaded to screw into our Axiz modules, the other end a few mm wider to allow more expansion of the slow axis.

As I said above, you'd need to fix the lens in place. Any sort of rotation around the axis of the diodes output is going to distort the beam.

Maybe someone can come up with a new module the a mount specifically for these lenses? :D


Alaskan

Well-known member
LPF Site Supporter
Joined
Jan 29, 2014
Messages
11,206
Points
113
I'm thinking about trying to find someone to build something like that, we really need it. Due to the quote missing a second thought I had edited in later before seeing your post, i had to cut this out of my earlier post and paste here, i think this is what you were after, agreed:

Edit: (e: the second section with these in it would need to have a tight slip ring in the tube coupling to allow it to rotate, otherwise the axis wouldn't line up with the diode when focusing).

A special lens assembly like that probably won't be affordable for our hobbyist community, but would sure like to see it be an option for us.

Last edited:

ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,319
Points
113
As I said above, you'd need to fix the lens in place. Any sort of rotation around the axis of the diodes output is going to distort the beam.

Maybe someone can come up with a new module the a mount specifically for these lenses? :D
That's what i was thinking. Small MM diode with corrective optics / similar than G-ball lens assembly.

Last edited:

Alaskan

Well-known member
LPF Site Supporter
Joined
Jan 29, 2014
Messages
11,206
Points
113
That would be inexpensive to mass produce compared to my earlier idea, although they need to collimate it first, would be a tube about twice as long as their current gball assembly, i think. I hope the manufacturers do that someday, if the power keeps going up on our diodes with the emitters getting wider, such would probably be more likely to come about.


ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,319
Points
113
That would be inexpensive to mass produce compared to my earlier idea, although they need to collimate it first, would be a tube about twice as long as their current gball assembly, i think. I hope the manufacturers do that someday, if the power keeps going up on our diodes with the emitters getting wider, such would probably be more likely to come about.
Yes, I really hope they do. But this is how they could tackle that awfull divergence. (in projectors e.g)


logsquared

Active member
Joined
Dec 9, 2011
Messages
177
Points
28
I would love to get my hands on one of these lenses. Looks like further correction would be needed to get a good beam. Probably just telescope made with spherical lenses after the collimator.

Building a mount would be pretty easy I think.


ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,319
Points
113
I would love to get my hands on one of these lenses. Looks like further correction would be needed to get a good beam. Probably just telescope made with spherical lenses after the collimator.

Building a mount would be pretty easy I think.
It is the collimator ^^^^
