Host for 12mm Module W/ 22mm Heatsink

[CryptV2]

Hi! I am wondering what would be a nice and not too expensive host to fit a 12mm Laser Module with a 22mm Heatsink. Something small and US seller only. Thank you



[Snecho]

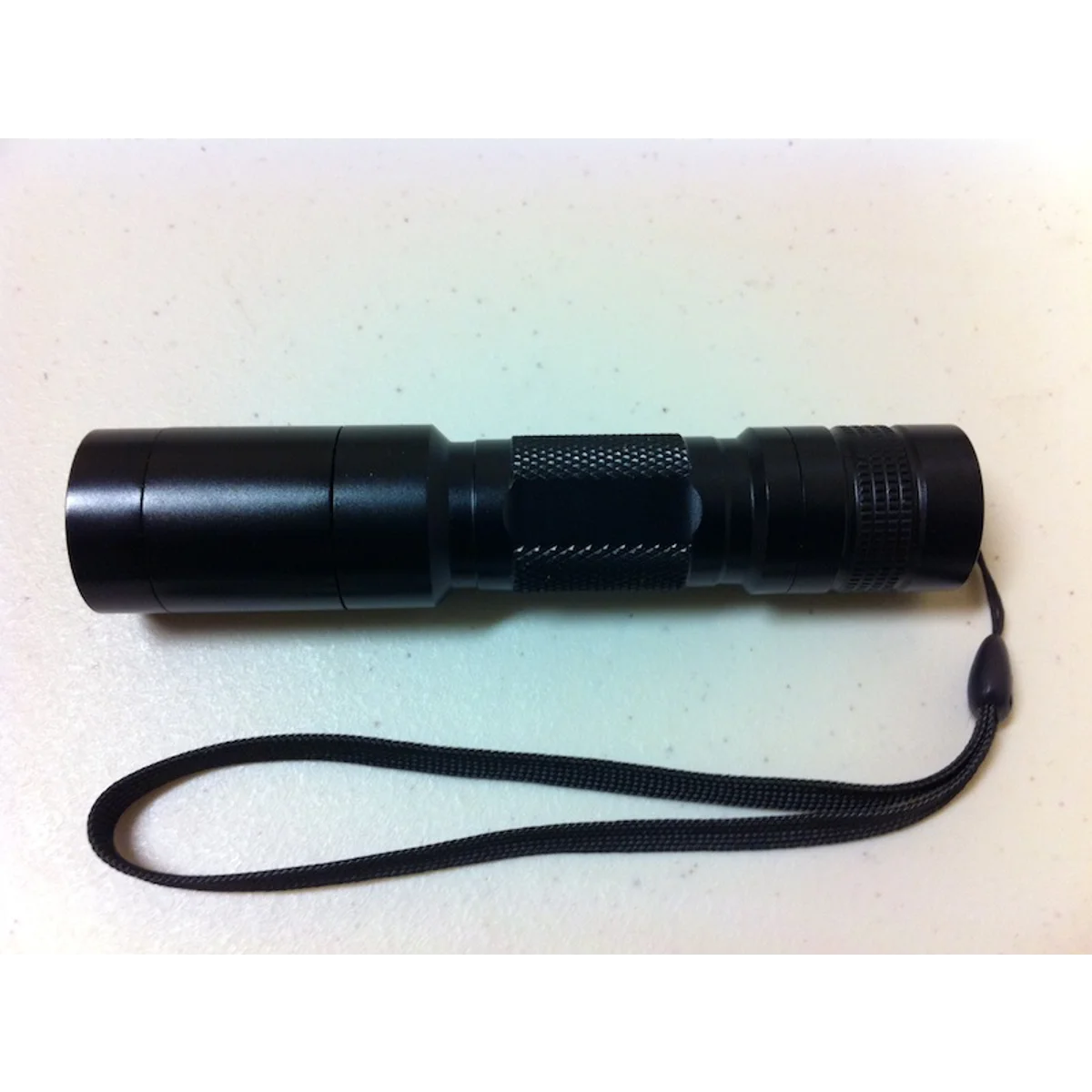

C6 Host Assembly

Our 'classic' C6 host assembly includes the retaining ring, heat sink holder, battery holder and tailcap switch. Accepts 2 X RCR123A, 2 X CR123A or 1 X 18650 batteries depending on diode and driver used. Includes your choice of aluminum or copper heat sink with set screw and a 0.050' Allen...

www.survivallaserusa.com

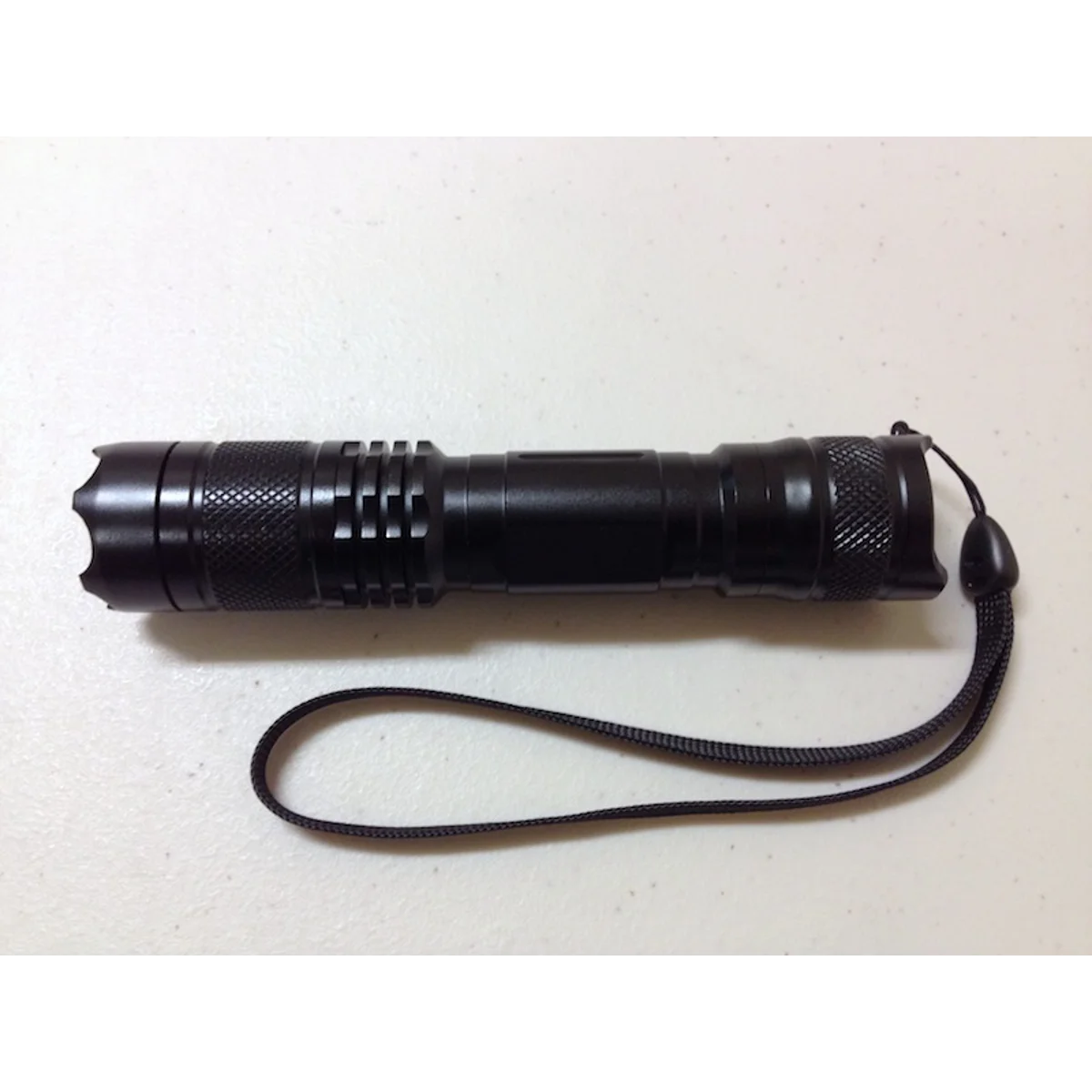

S4™ Host Assembly

Our exclusive S4 host assembly features a tapered strike bezel-style crown/retaining ring, heat sink o-ring, a knurled and grooved heat sink holder, battery holder with cooling fins and groove detail, and an enlarged knurled, grooved and scalloped tail cap with a recessed green 'clicky' switch...

www.survivallaserusa.com

Don't know what you mean by 22mm heatsink. Maybe contact member @Lifetime17 for a custom built host.



[Coonie]

He probably means the 22mm heatsink sold by dtr



[icecruncher]

If you are talking the 22mm DTR heatsink... There used to be another end to that heatsink that allowed them to be mounted on a vaping mod. However the ends are no longer available, so Jordan (DTR) is getting rid of the remaining heatsinks from that era.

If you can find an end and attach it, and mount the diode and driver inside, then you could use any of the vaping mechanical hosts. Otherwise you will need to have something made to fit it.

WIth a great deal of scouring the internet, you might find a very similar size, but not perfect.

Mech Mods and DTR laser can

I ordered a PH22 / Poldiac mod clone with the hope that the key lock from a cheap "ebay" 303 model laser would fit. It does indeed, but now 18350s or 18650s no longer fit (maybe 18500s will). I was already planning on ordering a CHI YOU mod/clone so I could use 2 x 18650s as the threading is...

laserpointerforums.com

The DTR le-adapter V1

Once again are local laser guru the CEO and president of the LPF diode appropriation committee has all but cemented his name in the LPF hall of fame as the 2nd charter member (Avery is #1 got it) hehe anyways, I review for you the masses the DTR le-adapter V1.:wave: A little history although...

laserpointerforums.com

FastTech - Gadgets and Electronics

Misc Accessories are unbelievably cheap at FastTech. Free Shipping to major countries.

www.fasttech.com



[Lifetime17]

If you are talking the 22mm DTR heatsink... There used to be another end to that heatsink that allowed them to be mounted on a vaping mod. However the ends are no longer available, so Jordan (DTR) is getting rid of the remaining heatsinks from that era.

If you can find an end and attach it, and mount the diode and driver inside, then you could use any of the vaping mechanical hosts. Otherwise you will need to have something made to fit it.

WIth a great deal of scouring the internet, you might find a very similar size, but not perfect.

Mech Mods and DTR laser can

I ordered a PH22 / Poldiac mod clone with the hope that the key lock from a cheap "ebay" 303 model laser would fit. It does indeed, but now 18350s or 18650s no longer fit (maybe 18500s will). I was already planning on ordering a CHI YOU mod/clone so I could use 2 x 18650s as the threading is...

laserpointerforums.com

The DTR le-adapter V1

Once again are local laser guru the CEO and president of the LPF diode appropriation committee has all but cemented his name in the LPF hall of fame as the 2nd charter member (Avery is #1 got it) hehe anyways, I review for you the masses the DTR le-adapter V1.:wave: A little history although...

laserpointerforums.com

FastTech - Gadgets and Electronics

Misc Accessories are unbelievably cheap at FastTech. Free Shipping to major countries.

www.fasttech.com

Hi,
The back threaded end of the that Icecruncher posted will not fit the DTR22mm vape module. It is much larger than the treads on DTR's modules. I machined plenty of these for LPF members in the past. Here are some pics. look through my sig.
Rich



[Lifetime17]

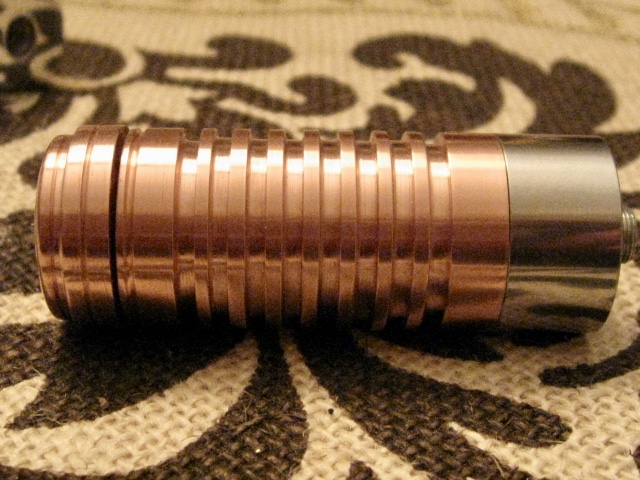

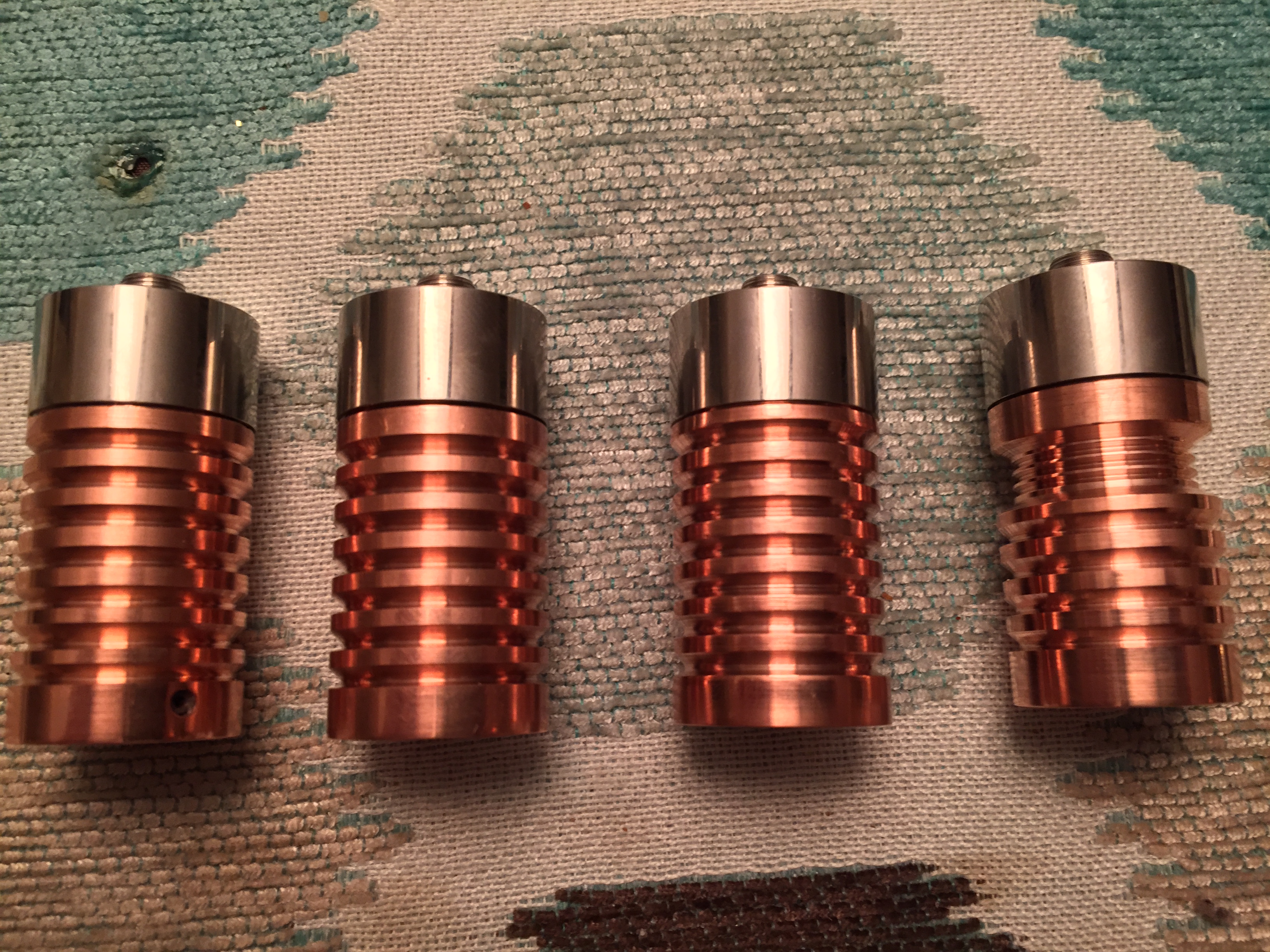

Here you are some vape mod heat sinks.
Rich


• Lifetime17
• Jan 23, 2019

510 Vape modules


• Lifetime17
• Nov 18, 2018

510 vape heat sink



[icecruncher]

Hi,
The back threaded end of the that Icecruncher posted will not fit the DTR22mm vape module. It is much larger than the treads on DTR's modules. I machined plenty of these for LPF members in the past. Here are some pics. look through my sig.
Rich

Please explain. Are these different now?



[Lifetime17]

Hi
I purchased the back 510 adapter part and I machine my own heat sinks and I thread them to fit the 510 back halfs
My 510 back half’s won’t fit the DTR aluminum 22mm heat sink
Rich



[jnrpop]

Please explain. Are these different now?

Yes, as Rich has said, the Adapters that fits DTR`s 22mm heatsinks have a slightly small thread size and are well and truly sold out everywhere, ive been searching for a year now.

Your only option is to get Rich to machine up a custom 22mm heatsink that fits the slightly larger 23mm Adapters which have a bigger thread.

I might have bought a fair few of the smaller adapters - https://laserpointerforums.com/threads/jnrpop´s-collection.103777/post-1551595




J



[icecruncher]

Yes, as Rich has said, the Adapters that fits DTR`s 22mm heatsinks have a slightly small thread size and are well and truly sold out everywhere, ive been searching for a year now.

Your only option is to get Rich to machine up a custom 22mm heatsink that fits the slightly larger 23mm Adapters which have a bigger thread.

I might have bought a fair few of the smaller adapters - https://laserpointerforums.com/threads/jnrpop´s-collection.103777/post-1551595




J

OK good to know someone can still do these. I wasn't as heavy into the mech mods as you. but close

I had no idea anyone was still doing the 510 screw on versions. I bought a few of Jordans heatsinks and he referred me to a site that had a larger 510 adapter, it was suggested at the time to use some type of material to fill the gap and use them.

I still have two mech mods I want to make lasers for. One is the Aspire CF, the other is a solid copper one which you can see the battery through it in all the cutouts.

If I can't make what I have work, I may ask you, rich to help me out on these. Thanks again for the info
I've been saving at least one of each host style (mech mod, krypton groove and a couple others) in hope for yellows to add to my sets (Green, Violet, Red, Blue)
