490nm "Turbine" Build

ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,186
Likes
1,100
Points
113

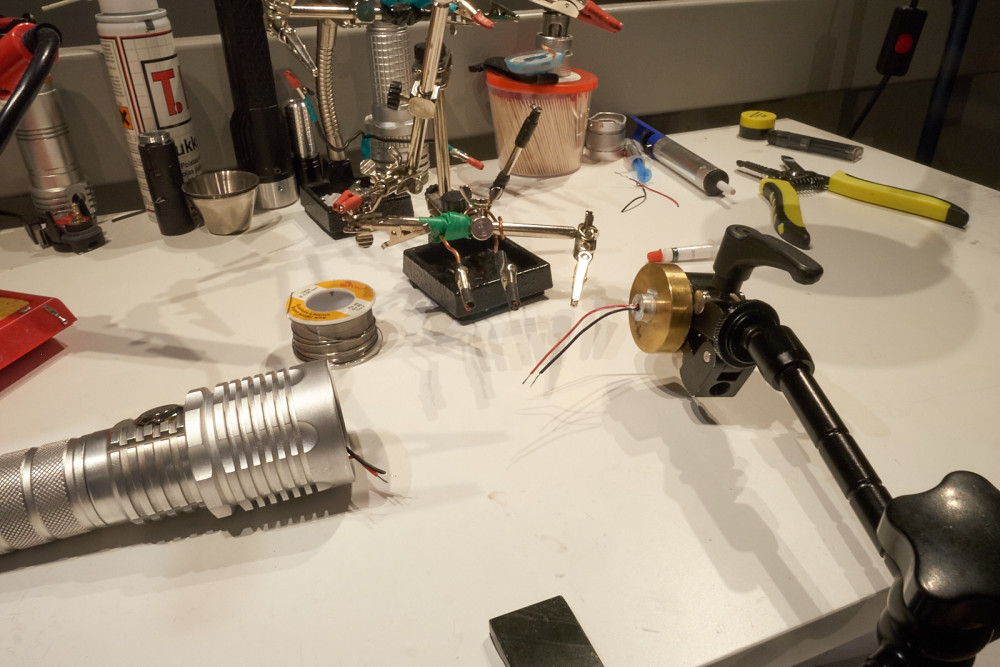

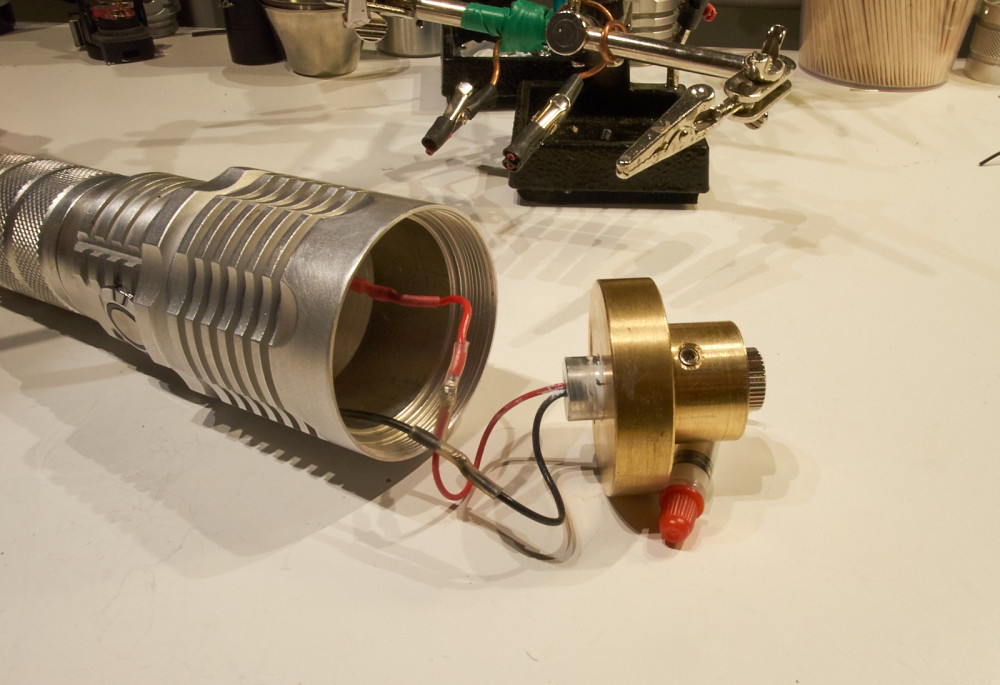

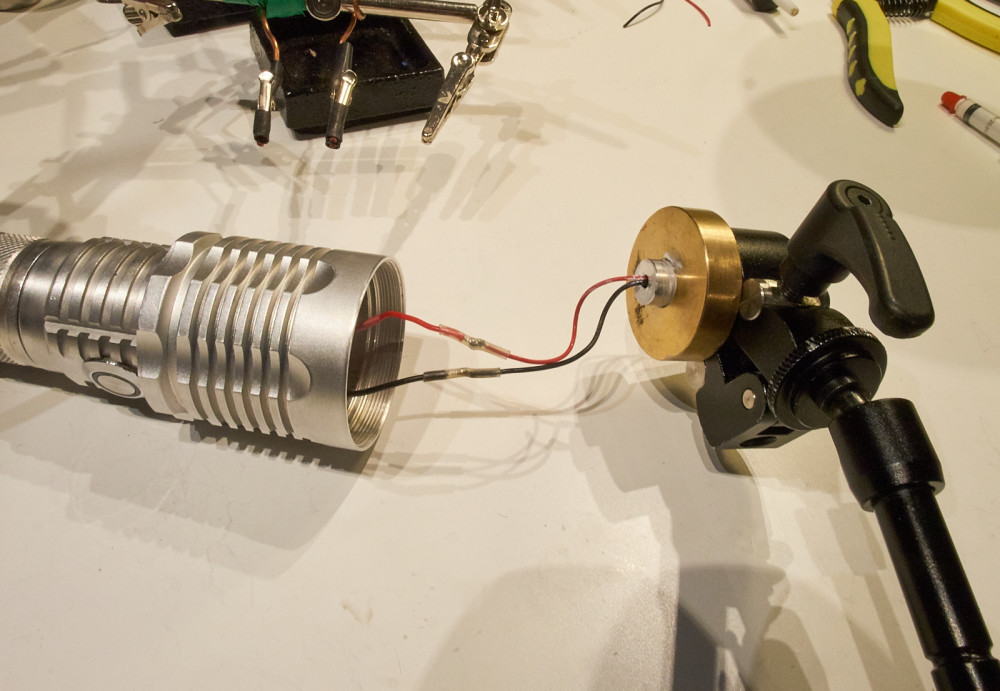

My Sharp 490nm modules arrived today and I was eager to see this new diode color..
This build was supposed to be my first 22mm MechMod build, but I had to realise that DTR 22mm heatsink didn't come with 510 connector..

I just couldn't wait three weeks for 510 connector to come and I had use parts that I had laying around.
Just that bad I wanted to see it's color. I've gotta say that I'm really happy with this new Sharp diode!!

It doesn't bother me that I didn't get the 510 connector, now I have same size host than my others and I think heatsink is so overkill for this diode,
that it has unlimited duty cycle.. :p




























Last edited:

BowtieGuy

Well-known member
LPF Site Supporter
Joined
Oct 14, 2012
Messages
5,399
Likes
1,900
Points
113
Good looking "turbine" build, AD!

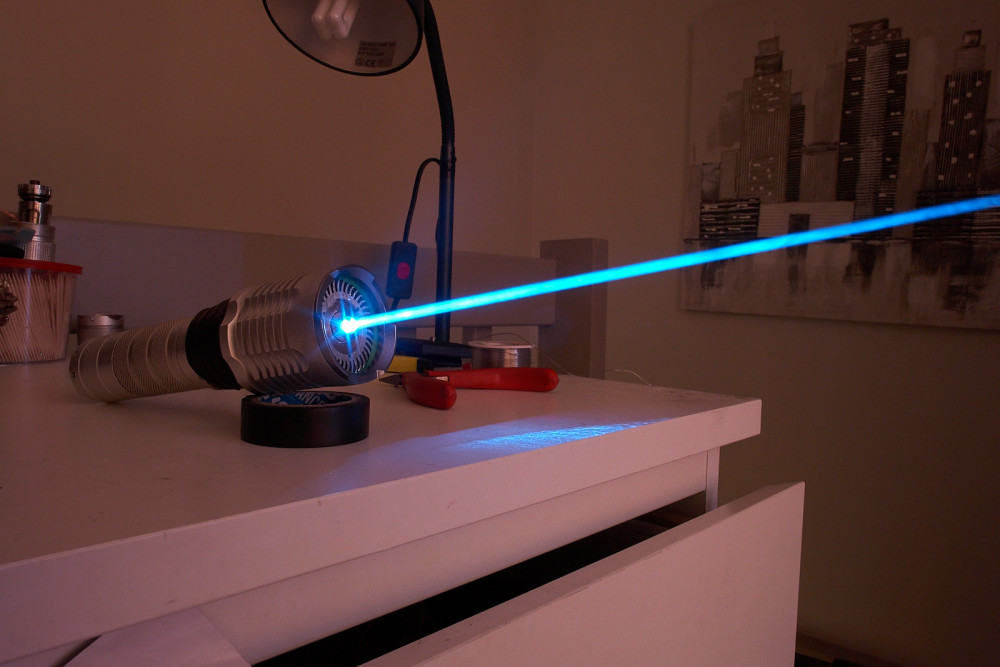

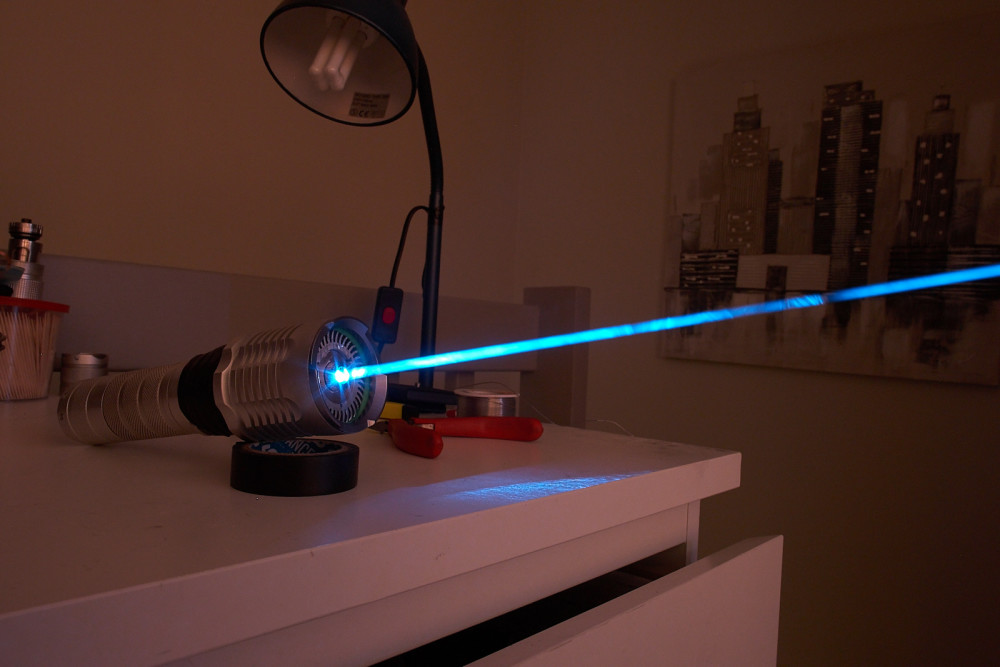

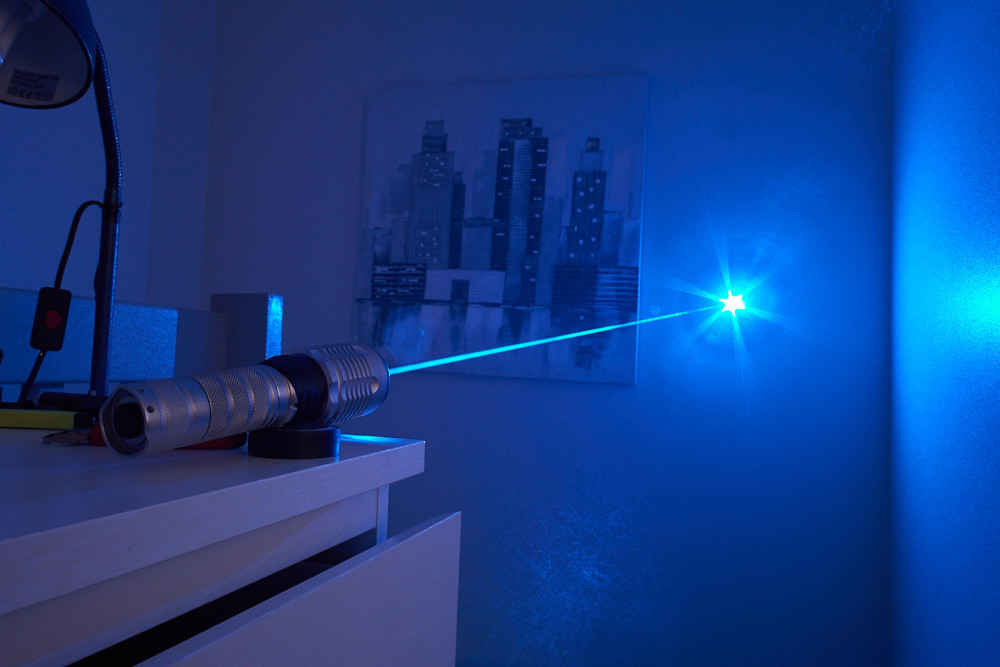

Nice beam shots of a great looking wavelength; the last pic really shows off the color nicely.
Sending some rep asap. :yh:

Last edited:

Encap

Well-known member
Joined
May 14, 2011
Messages
4,640
Likes
1,451
Points
113
Nice work ArcticDude, good photos.
The unusual wavelength, host and finned heatsink look great.


Gazen

Active member
Joined
Nov 13, 2017
Messages
511
Likes
190
Points
43
Woah that’s a great heatsink for that small diode. Great build!

Where did you get the host, or did you make it yourself?

Edit: I’ll rep you when I can

Last edited:

Lifetime17

Well-known member
LPF Site Supporter
Joined
Dec 15, 2014
Messages
4,681
Likes
1,349
Points
113
Hi :sold:
Wow great job and the choice of WL nice and clean
+REP buddy
Rich:)

Last edited:

Andrew124C41

Active member
Joined
Jul 3, 2015
Messages
399
Likes
122
Points
43
Hey, Arcticdude....wild, really wild.
Two Questions.
1) What is the host?
2) Where did you get the heat sinck?


ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,186
Likes
1,100
Points
113
As I said I had to use parts that which were laying around..

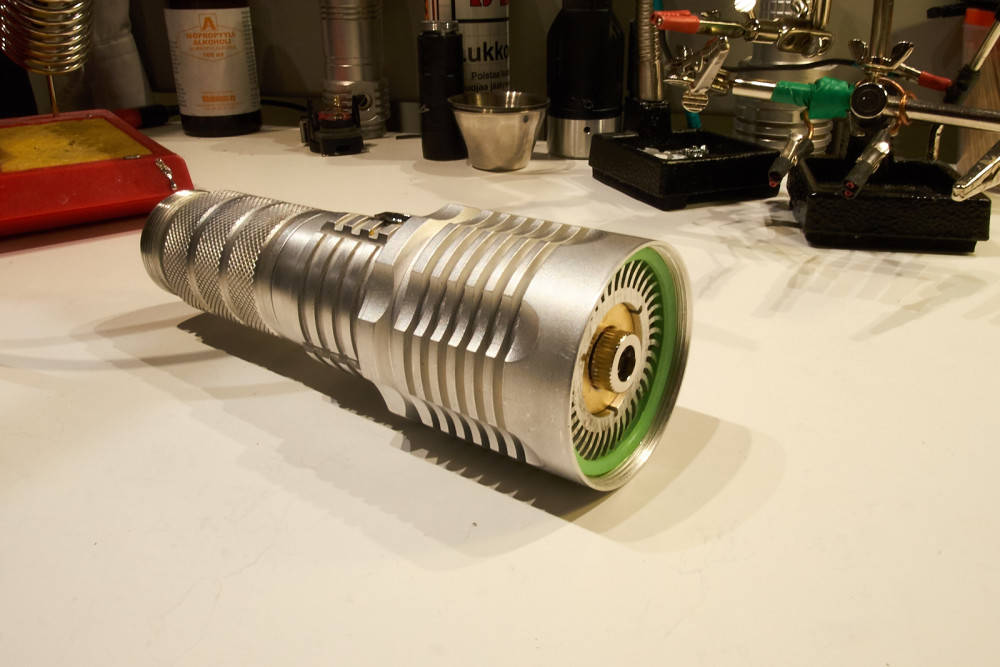

Host is combined from different parts, I think head is from UltraFire UF - D08 >>
Can't remember where I got battery tube and tail cap..

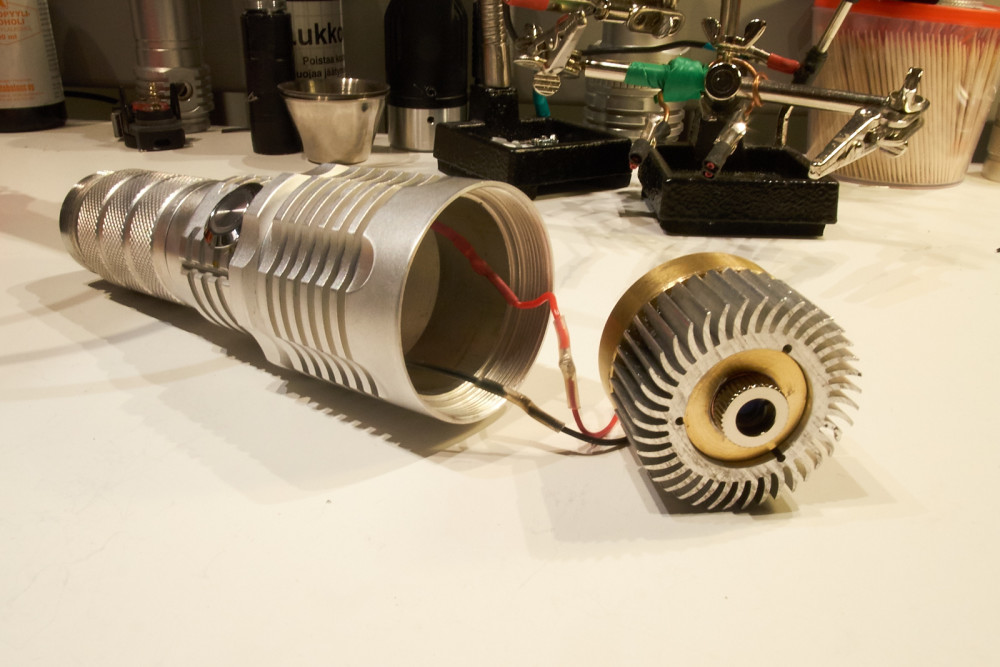

Inner heatsink is lathed and radial "Turbine" Al Heatsink is from here>>

Anodization is stripped off with Sodium hydroxide, I recommend to be very careful with that stuff..

Last edited:

paul1598419

Well-known member
Joined
Sep 20, 2013
Messages
13,881
Likes
2,003
Points
113
Very impressive host for this diode, Tero. When I saw the fins in the first photo, I was sure they would be outside the host. Does air get into that space where you ended up placing them? I do love that color. Can't tell by your photos, but is there any green in the light? If it is just light blue, it is likely 488nm or lower. The green doesn't really seem to be very noticeable until it is 491nm or higher, though. What current did you set it at? oh, and what lens did you use? Just love it.

I can't rep you yet, but I owe you.

Last edited:

LewDude

Well-known member
LPF Site Supporter
Joined
Jul 16, 2017
Messages
314
Likes
310
Points
63
Heck ya, dude!
Richie mentioned your work bench...that "3rd arm" is very neat. Those helping hands probably wouldn't be much help with that sink, lol. Do tell: what was your current/lens choice?
Thanks for sharing, appreciate the beam shots!!! Look forward to seeing it in the Enchanted Beams thread!!


RB astro

Super Moderator
Staff member
Joined
Apr 6, 2014
Messages
2,457
Likes
1,332
Points
113
Oh man !!
Just saw this.
How cool is this build?
Love those fins and great looking build Tero.
Of course I expect nothing less from you.
Love your work area too.

Awesome mate, looking forward to more.

RB
:wave:


BobMc

Well-known member
Joined
Apr 23, 2016
Messages
3,798
Likes
883
Points
113
Certainly looks like a beauty of a build. That’s one great looking host ArcticDude. :gj:
