The Zeus are here!

I have a Thor H2 from laser pointer stores and mine measured 1648 mW on high power. Got mine for the cost of shipping to do a review before they were released for sale. Mine also measured 444.9nm on low power. That is very close to 445nm. They tend to drift up in wavelength the harder they are driven.






paul1598419 said:
I have a Thor H2 from laser pointer stores and mine measured 1648 mW on high power. Got mine for the cost of shipping to do a review before they were released for sale. Mine also measured 444.9nm on low power. That is very close to 445nm. They tend to drift up in wavelength the harder they are driven.
Click to expand...
Yep, that appears to be the Thor H2 445nm 1.6W version

paul1598419 said:
I'd be happy to measure them for you, but since you are in the UK it wouldn't be practical. I could also give you the exact wavelength of both.
Click to expand...
Than you Paul.

I appreciate the offer but yeah, not practical. Shame we live several thousands miles away.

Cheers.



@Encap.

That’s odd, the Tracer was $280 last time I looked. Just took a look again and it has jumped up to $350. 🤔

Anyway, I’m only thinking about it. Will look at my options when I take the plunge.



Here’s another pic of the green beam. Again, target is circa 15m.


ManCave said:
Thank you Paul.

I appreciate the offer but yeah, not practical. Shame we live several thousands miles away.

Cheers.



@Encap.

That’s odd, the Tracer was $280 last time I looked. Just took a look again and it has jumped up to $350. 🤔

Anyway, I’m only thinking about it. Will look at my options when I take the plunge.



Here’s another pic of the green beam. Again, target is circa 15m.

View attachment 66709
Click to expand...
Hey MC, did you try sending Curtis a PM yet? I'm sure he could try to help you measure your Lasers.

Also, yeah what the heck, I've seen that Tracer @$280.00 for months now and they just decided to up the price??

ManCave said:
Yep, so far I’m happy, let’s see what an LPM says.

Do Post pictures and your impressions when you get yours and maybe we can compare notes with the Zeus.

That was my first ever back door deal on ebay, so I’m chuffed it has turned out ok.
And it is Hallowing... We must have a bit of suspense! 😂
Click to expand...
I'd love to do a review on it for sure if I had a decent camera.

The thing is, the one I ordered is a Thor M2. The ones you have are based on the H2, so not much comparing can be done there I'm afraid 😛

Last edited:
Snecho said:
Hey MC, did you try sending Curtis a PM yet? I'm sure he could try to help you measure your Lasers.

Also, yeah what the heck, I've seen that Tracer @$280.00 for months now and they just decided to up the price??


I'd love to do a review on it for sure if I had a decent camera.

The thing is, the one I ordered is a Thor M2. The ones you have are based on the H2, so not much comparing can be done there I'm afraid 😛
Click to expand...
Yep, the Tracer was $280 yesterday morning. I will not be buying it with a price hike of $70. from one day to the next.
No I haven’t. if he has an LPM, He may chime in when he reads the thread.
Cheers!

paul1598419 said:
I have a Thor H2 from laser pointer stores and mine measured 1648 mW on high power. Got mine for the cost of shipping to do a review before they were released for sale. Mine also measured 444.9nm on low power. That is very close to 445nm. They tend to drift up in wavelength the harder they are driven.
Click to expand...

Hi All:

I bought a Dual Power 445 nm ThorH laser from LPS in August that was rated at 1 W & 3 W. I’ve measured its Low Power at 1,370 mW and High Power at 2,570 mW several times with my LaserBee AX3 LPM. It is very bright and performs well. It also is threaded for the Sanwu 3X Optical Expander, which greatly increases its range. Please remember that you ALWAYS MUST wear safety glasses for any laser with 1 W of optical power! Have fun and be safe. Take Care.


ManCave said:
Yep, the Tracer was $280 yesterday morning. I will not be buying it with a price hike of $70. from one day to the next.
No I haven’t. if he has an LPM, He may chime in when he reads the thread.
Cheers!
Click to expand...


This is really not unusual with the Chinese resellers. I have seen this happen many times. It happens on eBay a lot too with the Chinese. It's all about the most you can get. Also they can later put it back and claim a $70.00 reduction in price.

paul1598419 said:
This is really not unusual with the Chinese resellers. I have seen this happen many times. It happens on eBay a lot too with the Chinese. It's all about the most you can get. Also they can later put it back and claim a $70.00 reduction in price.
Click to expand...
Thank you Paul.
Yeah, that’s what I figured. I’ve been making some numbers, and it looks like I will be better off buying locally. Will a CO2 unit work with diode lasers too?
There’s a few for around £250 that I’ve been looking at.
www.ebay.co.uk

CO2 Laser power meter for engraving and cutting machine | eBay

Find many great new & used options and get the best deals for CO2 Laser power meter for engraving and cutting machine at the best online prices at eBay! Free delivery for many products!
www.ebay.co.uk
Cheers!

Last edited:
That's not a laser. It is a power meter for CO2 lasers. These are deep IR lasers and , as such, the optics are made from NaCl, ZnSe, and other fairly nontraditional visible laser optics.

paul1598419 said:
That's not a laser. It is a power meter for CO2 lasers. These are deep IR lasers and , as such, the optics are made from NaCl, ZnSe, and other fairly nontraditional visible laser optics.
Click to expand...
Yes, sorry I forgot to mention that it is a LPM, what I like to know (please forgive my ignorance) is if it will work with visible diode lasers.
Cheers!

No the CO2 power meters are designed for higher powers and not high accuracy in sub watt measurements, also the wavelength centers at 10.2um/10200nm, the meter measures the thermal change of a metal puck coated in a tough burn resistant coating over time to determine the energy imparted so the puck in that CO2 meter is much too large for testing 1w or 3w visible wavelength lasers, you need a meter made for a lower power range, the coated puck has thermal transducers on the back side but another way is to use a direct meter similar to a solar cell where the measurement is not of thermal change over time but a direct measurement.

Have you looked at these: I wish I had bought an A10 instead of the smaller head unit I have, the A10 has a nice target area but you should still defocus your beam so it's not all in one tiny spot on the thermopile, that's with any head.

Products 1

J.BAUER Electronics LaserBee™ The proven ultimate standard in affordable and accurate Hobbyist's Laser Power Meters. All the LaserBee™ Laser Power Meter products we sell on one page.
www.laserbeelpm.com



---edit---

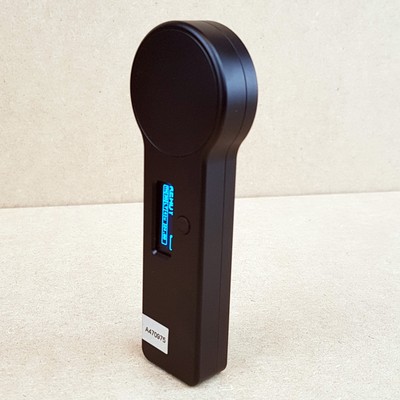

I bought one of these and it works just fine but the sensor is small, very small, I wish I had bought the A10.........did I mention the A10.......



---edit---

One more thing, you don't want this pocket deal from China, it's not very accurate and won't bleed off heat very well for repeated testing, there have been some test on it and you will be a lot happier with an A10 which is accurate and much better quality.

www.ebay.com

0-10W Mini Laser Power Meter Pocket 390~1024nm Multiwavelength Laser Power Meter | eBay

Find many great new & used options and get the best deals for 0-10W Mini Laser Power Meter Pocket 390~1024nm Multiwavelength Laser Power Meter at the best online prices at eBay! Free shipping for many products!
www.ebay.com

Last edited:
RedCowboy said:
No the CO2 power meters are designed for higher powers and not high accuracy in sub watt measurements, also the wavelength centers at 10.2um/10200nm, the meter measures the heat change of a metal puck coated in a tough burn resistant coating over time to determine the energy imparted so the puck in that CO2 meter is much too large for testing 1w or 3w visible wavelength lasers, you need a meter made for a lower power range, the coated puck has thermal transducers on the back side but another way is to use a direct meter similar to a solar cell where the measurement is not of thermal change over time but a direct measurement.

Have you looked at these:

Products 1

J.BAUER Electronics LaserBee™ The proven ultimate standard in affordable and accurate Hobbyist's Laser Power Meters. All the LaserBee™ Laser Power Meter products we sell on one page.
www.laserbeelpm.com
Click to expand...
Thank you RedCowboy.
That’s a bit upsetting, it’s the only LPM reasonable priced I can find locally.
Yes, I have been considering the LaserBee and Sanwu units. Alas, postage costs and import charges into the U.K. will put those in the $500+ range. I like to have a LPM that can measure up to 20 Watts but, I really don’t want to spend that much money just yet.
Thank you for the detailed answer. It’s a somewhat Stiff Learning curve for me, and answers like yours, Paul (and others) are very helpful.
Cheers!


—-edit—-
Yes, I‘ve seen the hyperion in Ebay, a bit bare bones for the price... not even a case.

I read the thread regarding the cheap chinese unit before I posted. No chance of me wasting my money on that POS!
Cheers!

Last edited:
Thank you buddy.
That could be exactly what I am looking for b
Brilliant!
Cheers!

ManCave said:
Thank you RedCowboy.
That’s a bit upsetting, it’s the only LPM reasonable priced I can find locally.
Yes, I have been considering the LaserBee and Sanwu units. Alas, postage costs and import charges into the U.K. will put those in the $500+ range. I like to have a LPM that can measure up to 20 Watts but, I really don’t want to spend that much money just yet.
Thank you for the detailed answer. It’s a somewhat Stiff Learning curve for me, and answers like yours, Paul (and others) are very helpful.
Cheers!


—-edit—-
Yes, I‘ve seen the hyperion in Ebay, a bit bare bones for the price... not even a case.

I read the thread regarding the cheap chinese unit before I posted. No chance of me wasting my money on that POS!
Cheers!
Click to expand...


I've had four LPMs. The first was a Laserbee that could measure to 3.2 watts and the second was the Radiant X4 that measures to 3.7 watts. I have a professional meter and both styles of the Hyperion. The Hyperion, if you can get it, comes with data logging software and is very good for what it can do. I paid $250.00 for the 6 watt and the 20 watt sensors plus the hardware. My thoughts have always been to get what you can when you can. Something else will come along in time.

You have any with Ophir heads Paul?

Psst, there is a certain member selling a very nice Ophir LPM here that looks appealing to me but I'm not 100% :)
