488nm Sharp GH04850B2G Build

MurphyMurph

Member
Joined
Feb 3, 2020
Messages
38
Points
18
Here is another build that I made this year using a 488nm Sharp GH04850B2G.

01 488nm Build.jpg

I machined a small heatsink and affixed it to the threaded insert with Arctic Alumina (it works ;))

02 Heatsink.jpg

03 Parts.jpg

It was a DTR packaged diode/ driver, I'm not sure which driver it is or what it it's set to, based on his websites power tests, I'm 'guessing' its set around 300mA
This build metered at 139mW .

04 LPM.jpg

This laser is an aquamarine or teal color. It is definitely a unique wavelength and very difficult to photograph, but here are the shots that I managed to get.

05 Beam.jpg

06 Beam.jpg

07 Beam.jpg

08 Beam.jpg




paul1598419

Well-known member
Joined
Sep 20, 2013
Messages
18,039
Points
113
Congratulations on your build. I measured many of these diodes and binned them by wavelength when they first became available here. They tend to run anywhere from 486nm to 493nm. The lower the wavelength the less green it will look. I have one doing exactly 488nm. I built one for my daughter that was 486nm. She loves that light blue color.


RedCowboy

Well-known member
Joined
Jul 10, 2015
Messages
9,839
Points
113
Great beam shots Murph, I also enjoy my 488's, I like the G8 lens the best and I usually drive mine @ 250ma


Alaskan

Well-known member
LPF Site Supporter
Joined
Jan 29, 2014
Messages
12,810
Points
113
Love it, the wavelength is awesome. Nice looking host and great photo's, thank your for sharing them. I bought a few of those diodes to see what I might do combining the output somehow, I guess the only thing I can do is PBS combine, Knife Edge, or closely space several diodes to make the output appear as close together as I can.


MurphyMurph

Member
Joined
Feb 3, 2020
Messages
38
Points
18
Congratulations on your build. I measured many of these diodes and binned them by wavelength when they first became available here. They tend to run anywhere from 486nm to 493nm. The lower the wavelength the less green it will look. I have one doing exactly 488nm. I built one for my daughter that was 486nm. She loves that light blue color.
This one must be on the higher side of the of those wavelengths, it definitely has a green tint to it. The GoPro just has a hard time picking it up.


Giannis_TDM

Well-known member
Joined
Apr 27, 2019
Messages
398
Points
63
This one must be on the higher side of the of those wavelengths, it definitely has a green tint to it. The GoPro just has a hard time picking it up.
It's also because the current is very high. If you run those diodes at above around 180mA they start to shift to green.


Giannis_TDM

Well-known member
Joined
Apr 27, 2019
Messages
398
Points
63
Congratulations on your build. I measured many of these diodes and binned them by wavelength when they first became available here. They tend to run anywhere from 486nm to 493nm. The lower the wavelength the less green it will look. I have one doing exactly 488nm. I built one for my daughter that was 486nm. She loves that light blue color.
Happen to have one at around 486ish that I could buy off you? Really want to cover the gap from my 481-492.


Lifetime17

Well-known member
LPF Site Supporter
Joined
Dec 15, 2014
Messages
6,221
Points
113
Hi Folks,

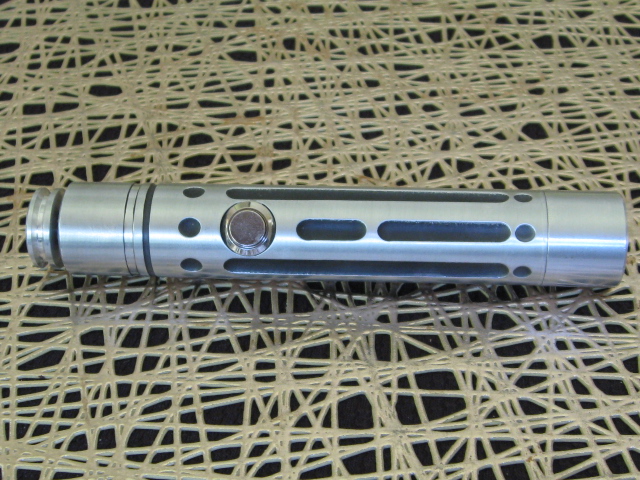

I built a 495nm in a custom side button host , the 495's were out before the 488's some time back , no longer available .But if you find one they are pretty costly. I remember Redcowboy stating this not to long ago,. It holds 1X18650 / 55mW's close to threshold driver setting. Asking 120.00 + 8.30 Priority shipping .
This build is still up for sale brand new build.
Rich:)


paul1598419

Well-known member
Joined
Sep 20, 2013
Messages
18,039
Points
113
It's also because the current is very high. If you run those diodes at above around 180mA they start to shift to green.
Actually, these tend to shift wavelength with heat more than current.
Happen to have one at around 486ish that I could buy off you? Really want to cover the gap from my 481-492.
Sorry, I have none left. The one I used for my daughter's build was the last one I had.


RedCowboy

Well-known member
Joined
Jul 10, 2015
Messages
9,839
Points
113
I have several of the 488's and one is noticeably more blue than all the others, I call it my imitation argon.....yes I know argons are gas multi line lasers it's just what I like to call it, I suggest buying several and see what you get as they are all very cool beams of aquamarine - teal and the one is almost sky blue.
