3W 365nm Flashlight build.

  • Thread starter Deleted member 16589
  • Start date
D

Deleted member 16589

Guest
Sry I'm late. What influenced you to go with the name brand LED when 3W 365nm LED's go for 10X less on ebay?
As stated the chinese ones have less true optical output
The 3 watt LED engine -------Luminous Flux/Radiant Flux: 800 mW
Chinese ebay 3 watt ------------- Luminous Intensity: 50~55mW
And I even tracked down the led manufacturer via Alibaba and the specs are the same

watch the second video in OP it shows the difference.
I needed this light to cure CRL UV 702 and the Chinese one took to long.

Last edited by a moderator:

TheDukeAnumber1

Well-known member
Joined
Jun 7, 2012
Messages
2,064
Likes
221
Points
63
I have a few possible uses I wanted to experiment with and this build inspired me to build my own UV light with a decent diode ty, tons more UV output than Chinese LED's. Not a fancy build but it's effective.

LZ4-44UV00-0000 LED Engin | Mouser

.


Attachments

Last edited:
D

Deleted member 16589

Guest
Nice That looks awesome If you don't mind me asking how much did that LED set you back.
Mouser appears to be out of stock.
Edit Nvr mind looking at wrong page I see the price Not too bad for 4 emitters.

Last edited by a moderator:

RedCowboy

Well-known member
LPF Site Supporter
Joined
Jul 10, 2015
Messages
7,029
Likes
1,763
Points
113
That's great, I love the UV adhesives and have been using 405nm and a UV flashlight with 60 or so leds but I don't know what frequency it really is, I get good results but I do have to go over the adhesive for several seconds.

This brand I use is supposed to be good for glass and non ferrous metal, I mostly use it for bonding aluminum to fused silica and quartz and have had good results, but if you know of a better type/brand/formulation I would appreciate it.

This stuff has a tiny bit of a slick almost oily residue that dissipates or I clean it up after the adhesive solidifies, it even has a hint of chemical smell.

I have not noticed any trouble with outgassing but again if you know of a better kind, I will look up the 702 you mentioned, but a link would be cool too, Thanks.

I do shake it a bit before use but it is thick, so maybe I should shake it longer? It works great I just don't understand the oily residue I clean it up with a clean paper towel, no solvents or water, but would rather it didn't have it at all.



Attachments

Last edited:
D

Deleted member 16589

Guest
That's great, I love the UV adhesives and have been using 405nm and a UV flashlight with 60 or so leds but I don't know what frequency it really is, I get good results but I do have to go over the adhesive for several seconds.

This brand I use is supposed to be good for glass and non ferrous metal, I mostly use it for bonding aluminum to fused silica and quartz and have had good results, but if you know of a better type/brand/formulation I would appreciate it.

This stuff has a tiny bit of a slick almost oily residue that dissipates or I clean it up after the adhesive solidifies, it even has a hint of chemical smell.

I have not noticed any trouble with outgassing but again if you know of a better kind, I will look up the 702 you mentioned, but a link would be cool too, Thanks.

I do shake it a bit before use but it is thick, so maybe I should shake it longer? It works great I just don't understand the oily residue I clean it up with a clean paper towel, no solvents or water, but would rather it didn't have it at all.

AFAIK if residue Is left over your UV light is not strong enough.
Glad to see I'm not the only one using this stuff.
CRL UV702 High Viscosity UV Adhesive - 30g

Its expensive stuff but just like First contact Worth every penny. Ive never tried anything other than some type of Norland brand ( i dont remember wich ) Lazeerer tipped me off about this its stronger than any nor land he could find. which is sand since noreland is an optics company.

I use this stuff to stick mirrors and optics to mounts that I never want to come off.


Last edited by a moderator:
Joined
Nov 4, 2014
Messages
1,285
Likes
265
Points
0
I'm not familiar with this type of adhesive. I'm guessing that UV light cures it yes? I have seen my dentist use UV light to harden dental sealant on my teeth which is what maked me think thats what this product does.
Nice build Zach. rep for you.


Andrew124C41

Active member
Joined
Jul 3, 2015
Messages
399
Likes
122
Points
43
@laserman @redcowboy I want to try using this UV glue. What works better...405 or a longer WL? Where did you buy your UV light? Is it better to purchase a UV LED and if so, which one?


TheDukeAnumber1

Well-known member
Joined
Jun 7, 2012
Messages
2,064
Likes
221
Points
63
@laserman @redcowboy I want to try using this UV glue. What works better...405 or a longer WL? Where did you buy your UV light? Is it better to purchase a UV LED and if so, which one?
Go back a page and read through the thread.


Its expensive stuff but just like First contact Worth every penny.
I've been curious about this stuff. Compared to epoxies does it have a good bond strength on smooth surfaces and how flexible is it?

Last edited:
D

Deleted member 16589

Guest
I've been curious about this stuff. Compared to epoxies does it have a good bond strength on smooth surfaces and how flexible is it?
Never used epoxy on glass to metal but this stuff is strong. I glued a lens to a retaining ring a wile back and I let the lens drift before I cured it. I broke the lens and bent the ring but failed to get it off :tinfoil:
The UV 702 is not at all flexible but IIRC Norland makes some flexible kind.

Generally speaking the bond strength is on the magnitude of if you mess up your screwed.

Last edited by a moderator:

Richie89

Well-known member
Joined
May 9, 2015
Messages
1,006
Likes
427
Points
83
At first I just glanced at this and thought it said a 3 watt 465nm build and was thinking whoa that's sick! Until I realized that was ultraviolet lol
I'm just tired from working all night. Very nice though


Andrew124C41

Active member
Joined
Jul 3, 2015
Messages
399
Likes
122
Points
43
Sorry about that. I think Mauser still has the LED for 35 plus other for a lot more. As everyone knows, we have to be really careful with these....the eyeball does not like them.


RedCowboy

Well-known member
LPF Site Supporter
Joined
Jul 10, 2015
Messages
7,029
Likes
1,763
Points
113
The 405nm works, I think 385nm may work faster and get the little bit around the bond that seems to be tacky sometimes, like when I use a lot to fill in a valley or a void.


Last edited:
D

Deleted member 16589

Guest
The 405nm works, I think 385nm may work faster and get the little bit around the bond that seems to be tacky sometimes, like when I use a lot to fill in a valley or a void.

Yea 365nm works fast.
Did you watch part 2 of that video i linked its not really made for thick amounts.
Whats the power of the 405nm I used a 90mW and it did squat.

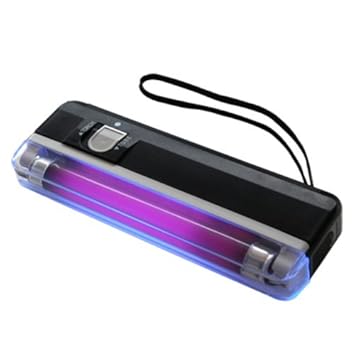

I use a flash of the 365 to harden it in an instant but then a few minutes under a normal blacklight to fully cure it. I use something similar to this.

You can cure it in a pinch with just a blacklight but it takes maybe 30 minutes and its not a very good bond. It only works if you remove the plastic cover.

Adit: BTW what show was that in the background :p sounded like the show What On Earth.

Last edited by a moderator:

RedCowboy

Well-known member
LPF Site Supporter
Joined
Jul 10, 2015
Messages
7,029
Likes
1,763
Points
113
I have to owe you a rep again, Thanks.
I think it was that show, sometimes it's just background noise to drown out my tinnitus.

Last edited:

Benm

Well-known member
Joined
Aug 16, 2007
Messages
8,090
Likes
689
Points
113
I'm not familiar with this type of adhesive. I'm guessing that UV light cures it yes? I have seen my dentist use UV light to harden dental sealant on my teeth which is what maked me think thats what this product does.
Nice build Zach. rep for you.
It's comparable indeed.

One big advantage over things like 'superglue' that spontanously polymerizes is that you can apply it carefully as a liquid, check if everything is good, and only then decide to cure it into place with UV light.

That said it does not care about the source of the UV light at all, and will probably set from exposure to direct sunlight as well, so tinker with this stuff only indoors and away from windows as a decent amount of UV will make it though a common window on a sunny day.
