Test of diodes in NUBM08 block one by one

Light superglue

Active member
Joined
Feb 12, 2016
Messages
357
Points
43
From many tests with single laser diodes discussed here we know that the LDs with G-ball of even the same type can slightly (or not) differ in power, wavelength and quality of collimation by attached G-ball.

Since 2 years ago when the 8LD blocks have appeared on ebay I wanted to know if the LDs inside one block would be similar or not by all or some of these properties. But as far as I know no one has checked this and posted on LPF before.

So recently I have received a block of NUBM08 from a Chinese colleague who bought in taobao (kind of Chinese ebay) for pretty cheaper than prices in ebay here.

Testing each of 8 LD one by one with a shaped Teflon LD socket at 500mA I found that the collimations of these were pretty different changing from a rectangle spot to a good line at the wall 5m away (but still not as good as this line would be with G-2 lens).
The output powers of all LDs, however, were pretty close and in range of 6.0-6.9W at 4.5A.
The sum of outputs would be 36W at 3A and 51W at 4.5A for the whole block.

Then I did a kind of “WL tests” by passing the beams through Blue–Blue dichro which lets through up to 450nm but starts to reflex the beams from 460nm up.
Here most of the beams were passing with 80-97% efficiency and only one of them (from the weakest LD which gave 6.0W output) was reflected at 72%.

This is in agreement with what DTR and other members said earlier that the less efficient LDs usually have higher wavelengths.


Attachments


deadshadow

New member
Joined
Feb 21, 2016
Messages
475
Points
0
i have 2 nubm08 diodes on my own(3 with one degraded) and i can confirm that the one that is not that strong and even at 5A the output is around 5950mw it has a very high wavelength compared to the other one that does 6w at 4.2A,the beam color looks pretty close to a nubm07, i could have mistaken it if i wasn't sure that is a nubm08

Last edited:

Phenomite

Member
Joined
Dec 1, 2012
Messages
57
Points
8
Your averages correlate well to DTR's sales ramp images which I graphed at the bottom.

Mass manufacture, especially samples, can be some crazy margins.
I've found LED's (Cree bins specifically) vary like this in color render index, temperature and luminous flux in the same way laser diodes do.



GSS

Well-known member
Joined
Apr 28, 2015
Messages
4,139
Points
113
Nice individual block comparison.. Surprised RedCowboy didn't chime in, he lives for this stuff:)


Benm

Well-known member
Joined
Aug 16, 2007
Messages
8,115
Points
113
Interesting to see how much variation there is in the output pattern of these diodes really, even in a single block where i'd expect all diodes to be from the same production batch.

I guess it doesnt really matter much when used in a projector or something like that, but if you want to make a handheld single diode laser out of it, the difference seems huge. Of course it's already hard to get a decent beam out of these multimode diodes, but it seems like each needs different corrective optics to stand any chance.


Light superglue

Active member
Joined
Feb 12, 2016
Messages
357
Points
43
Hi Benm,

Me too expected to find that the LDs in a block would be from same batch, so easy to combine by usual means but it seems that either Nichia blocks are produced by a subsidiary from loose LD bins or the LD batch QC accepts margins like these ones...

Now I want to check how well parallel the 8 beams are placed but will not get the PCB (they are also sold in taobao) before summer. From parallel beams at least I could make a close range burner if all beams focused at same spot (like Death Star of LPF member with nickname anselmo... YT video).


Benm

Well-known member
Joined
Aug 16, 2007
Messages
8,115
Points
113
I would expect them to be pretty parallel, otherwise the projector would not really function, would it?

Then again given the big differences in divergence and wavelength from those in a single block i would't be totally sure about it.

Apparently there is a fairly wide 'good enough' criterium for these blocks, which makes me wonder how good the finished projectors actually are. To be honest i have never seen one in operation, but this makes me wonder how uniform the white balance across the image is and such. Then again with projectors people rarely measure that at all.

With things like monitors color calibration on different parts of the screen are easily done with things like the datacolor spyder, and review websites will often talk about that aspect as well. With laser projectors it is a lot harder to do: those sensors aren't suitable and it also depends on how color-uniform the surface you're projecting onto actually is.


RedCowboy

Well-known member
LPF Site Supporter
Joined
Jul 10, 2015
Messages
7,716
Points
113
Maybe some of the blocks we can buy without a PCB attached are rejects due to mis matched lenses ?
Although I know there are packs of blocks with no PCB.

I have seen other pics of the blocks running and the beams looked identical, and the spots all clumped together as they diverged.

I may have screen shots, but the images should be here somewhere unless photosucket lost them, I think it was a 05 block.

I wish the blocks of NUGM01 diodes would come down, 2 of them (16) diodes in total would make a neat long range green spotlight project.

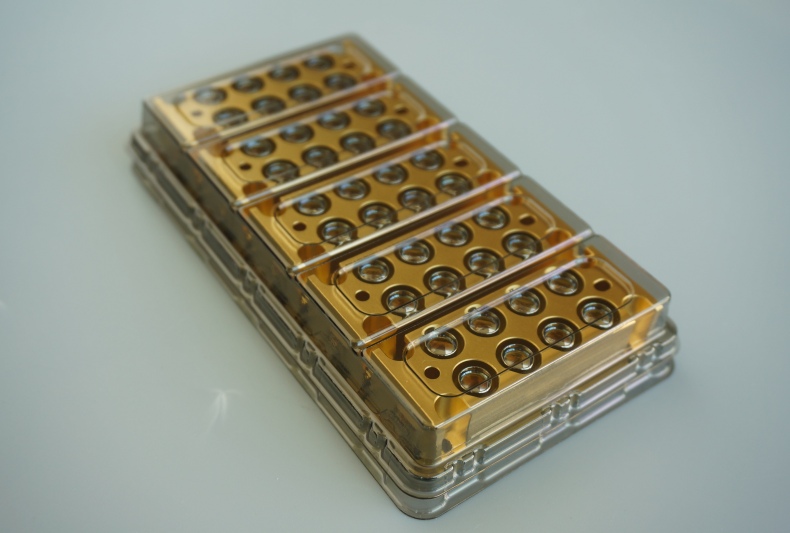

New Blocks without PCB
