LSX Abstract show "Warp"






Joined
Jan 13, 2011
Messages
284
Points
0
That is fricking awesome !!!! Idk how toy did that but im interested in finding out.

That is exactly what I'm talking about great job buddy!!!!

Joined
Mar 27, 2011
Messages
14,125
Points
113
I would plus rep you again, but the system won't let me. Yet :D

Amazing show... I love abstract shows.

Joined
Aug 21, 2009
Messages
388
Points
43
thanks crazyk187!

most of the effects i created in the show are simple shapes like triangles, squares, and circles that i tortured by performing xyz rotational transforms and then creating out of phase duplicates.

there are some good tutorials on creating LSX abstracts on photonlexicon, but i can post some information here, if you're interested.

That is fricking awesome !!!! Idk how toy did that but im interested in finding out.

That is exactly what I'm talking about great job buddy!!!!

Joined
Jan 13, 2011
Messages
284
Points
0
Links would be cool...!!!! I like the triangles and geometric shapes!!!! Its on point man I gave you one rep cuz that's all I can lol........

Can I do all that with software ?

Joined
Aug 21, 2009
Messages
388
Points
43
Joined
Aug 21, 2009
Messages
388
Points
43
id like to get a look at your projector!!!

Got any pics

outside


inside



500mW 532
600mW 642
1.2W 445 (it's a dual 445 module i built. each diode is individually corrected with a prism pair, then combined with a pbs cube)
dt40w's.

Last edited:
Joined
May 10, 2011
Messages
1,878
Points
48
outside

View attachment 39289

inside



500mW 532
600mW 642
1.2W 445 (it's a dual 445 module i built. each diode is individually corrected with a prism pair, then combined with a pbs cube)
dt40w's.

makes me gawk everytime :eg: ill be there one day i swear. one day i will leave these plywood hot glue walls and rise to the level of that beauty..one day :crackup::crackup::crackup::crackup:

Joined
Jan 13, 2011
Messages
284
Points
0
I've come to terms I will never have anything like that..... the only way I would ever have anything like that is if I stole it.....lolol that thing probly cost as much is my jeep does!!!


LSRFAQ

0
Joined
May 8, 2009
Messages
1,155
Points
83
I've come to terms I will never have anything like that..... the only way I would ever have anything like that is if I stole it.....lolol that thing probly cost as much is my jeep does!!!

Naw, google T-Slot tubing. I'm proud to be one of the first to adopt that industrial CHEAP framing system to laser projectors. Used it at work, found it inexpensive, made projectors with it.

Swami, however, is using the uber cool ultra nice German Style T-Slot framing.

Steve

Last edited:
Joined
Aug 21, 2009
Messages
388
Points
43
i kind of felt like i was building a satellite on my dining room table. i called it "swamilase" while i was designing it, but secretly i think of it as my satellite of love (with apologies to mst3k).

i built it as sections. the lower desk is the power supplies, and galvo amps. the top deck is lasers and optics.

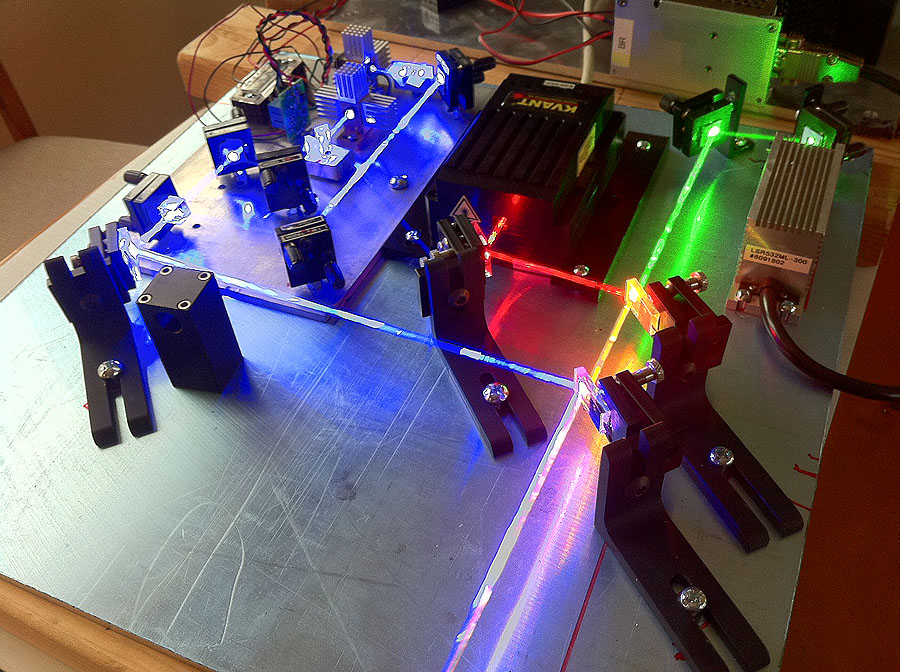

here's the basic beam path:

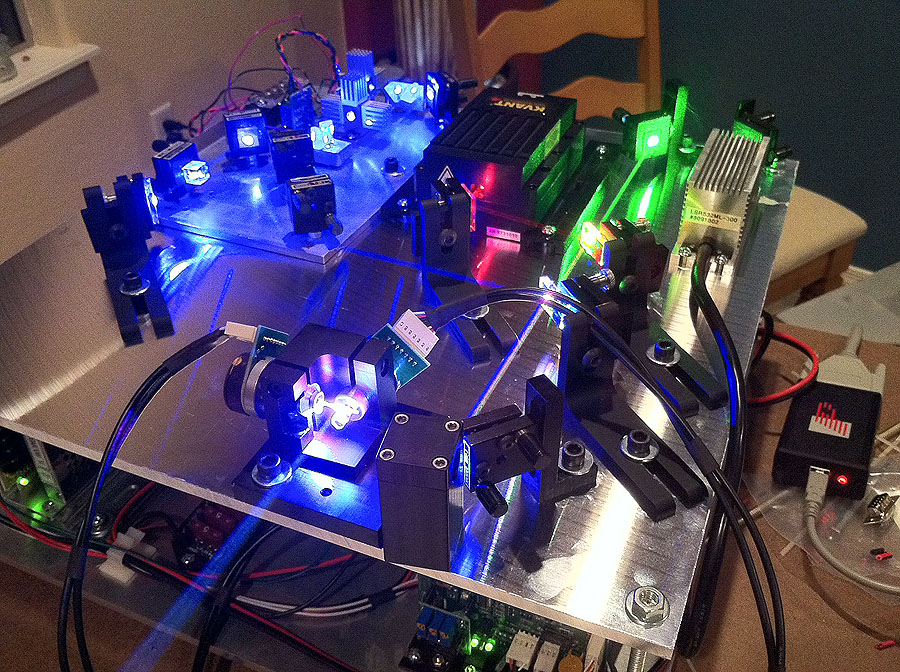

here's an early construction pic of it before i mounted it in the frame.



and here's some fun dual projector/scan through effects i did with my friend karl from Laser Wizardry- "It's All Just Smoke and Mirrors"- State of The Art Laser Light Shows with award winning effects


this was experimentation. not a show, as my projector is not yet legal.

Naw, google T-Slot tubing. I'm proud to be one of the first to adopt that industrial CHEAP framing system to laser projectors. Used it at work, found it inexpensive, made projectors with it.

Swami, however, is using the uber cool ultra nice German Style T-Slot framing.

Steve

Last edited:
Joined
May 10, 2011
Messages
1,878
Points
48
Naw, google T-Slot tubing. I'm proud to be one of the first to adopt that industrial CHEAP framing system to laser projectors. Used it at work, found it inexpensive, made projectors with it.

Swami, however, is using the uber cool ultra nice German Style T-Slot framing.

Steve

you have a recommendation on where to buy it?
