how do you use a multimeter to test laser driver amperage output?

skijohn

Member
Joined
Sep 8, 2018
Messages
31
Points
8
Hi, can someone please explain how do you use a multimeter to test laser driver amperage output? the driver will need to output around 2 amps.

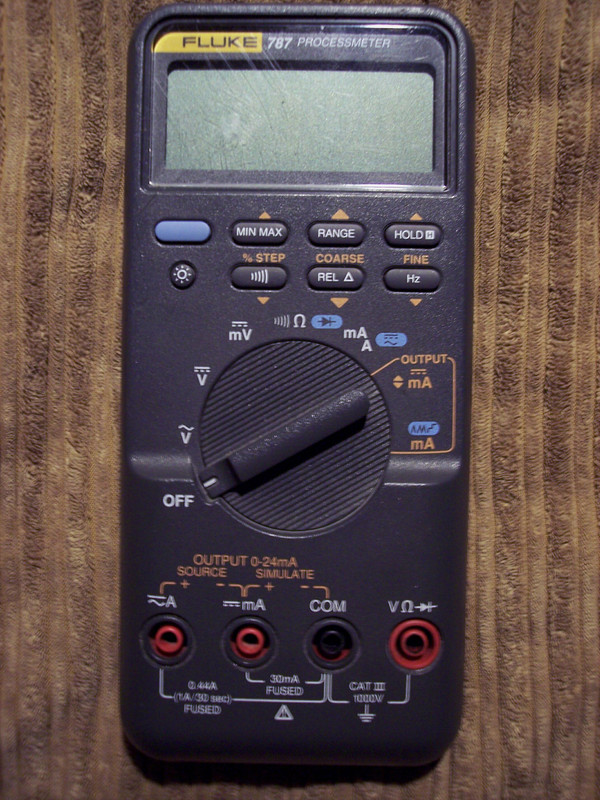

and would this multimeter be suitable to carry out such a test?

I should add I bought a 3 amp dummy test load...






Last edited:



RedCowboy

Well-known member
Joined
Jul 10, 2015
Messages
9,636
Points
113

Click the link and look for the CLICK HERE and read the instructions or you can CLICK HERE.

This has been discussed in many threads as well so try a search or you can also read this:


Last edited:

skijohn

Member
Joined
Sep 8, 2018
Messages
31
Points
8
Thank you but can anyone tell me if the multimeter shown would be suitable to carry out such a test?

If not what would a multimeter need to have that the one shown doesn't?


RedCowboy

Well-known member
Joined
Jul 10, 2015
Messages
9,636
Points
113
Sure, it's a DMM and loop calibrator combo, just use the V function...... the V------ is DC and the V with the wavy line is AC, you will be using DC the 2nd position from OFF.

Here's info about your meter.

Click here for the manual for your meter.

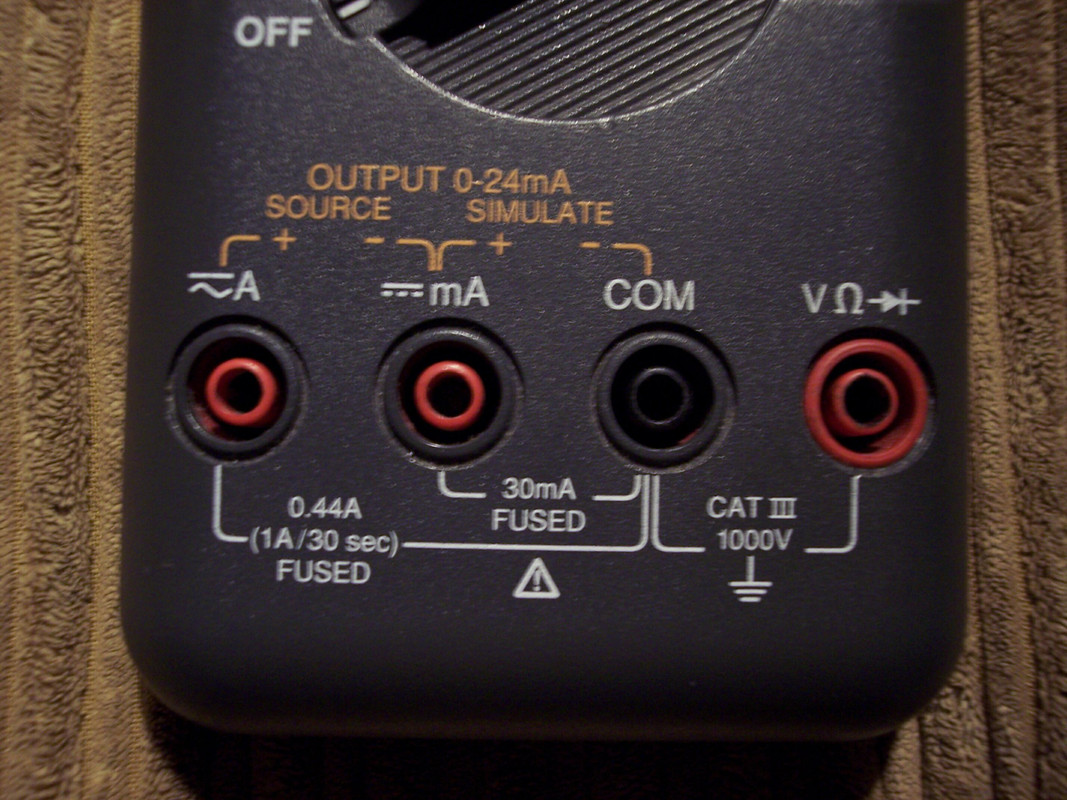

Even easier just plug your red and black test leeds into the two holes on the bottom right ( COM and V/OHM/DIODE ) " that's the 3rd and 4th holes counting from left to right " and turn your dial clockwise from OFF to the 2nd position, it's the V with the ---- that's the DC volts setting to measure up to 1000 volts dc, use your test load as per the instructions.

Last edited:

Lifetime17

Well-known member
LPF Site Supporter
Joined
Dec 15, 2014
Messages
6,175
Points
113
Hi,
Nice meter I have a Fluke thats about 15 years old . I found it when a tenant moved out of the space they were renting at work.
Still works great ,,
Rich:)
