Enchanted Beams Thread

Thanks Andrew! Really lookin forward your RGB build :)

I was hoping you could take more photo's of white.

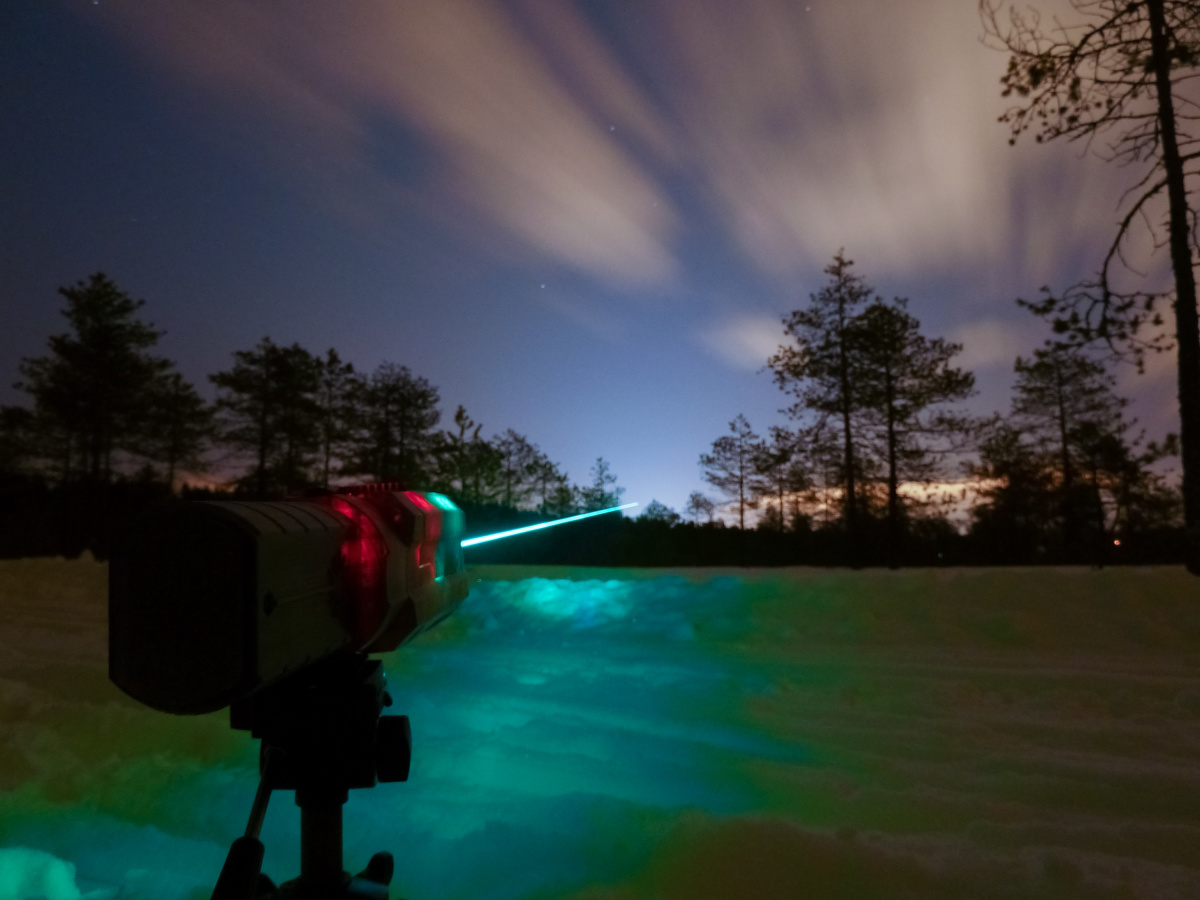

Here you go Chris, I just made it before the dawn of the evening..




















Last edited:





Thanks, that white is awesome, I cannot see anything but white all the way out to the end of the beam. Can you see anything when looking at it, the photo's sure don't show any color difference from the RGB alignment spreading in the distance.

Thanks, that white is awesome, I cannot see anything but white all the way out to the end of the beam. Can you see anything when looking at it, the photo's sure don't show any color difference from the RGB alignment spreading in the distance.

Nope,
alignment is just Top Notch! :yh:

Such a project, probably one of the finest I've ever seen shown here on the forum. I must admit, I've been spotty reading through the whole thread but I imagine the final cost of that baby was well over 1500 USD.

Such a project, probably one of the finest I've ever seen shown here on the forum. I must admit, I've been spotty reading through the whole thread but I imagine the final cost of that baby was well over 1500 USD.

Yeah, and it was worth of every penny! :beer:

Yes, that definitely is worth it. You always see some separation in rgb's so that is a high quality unit. The good thing about that custom host, no one else owns one ... yet. :p

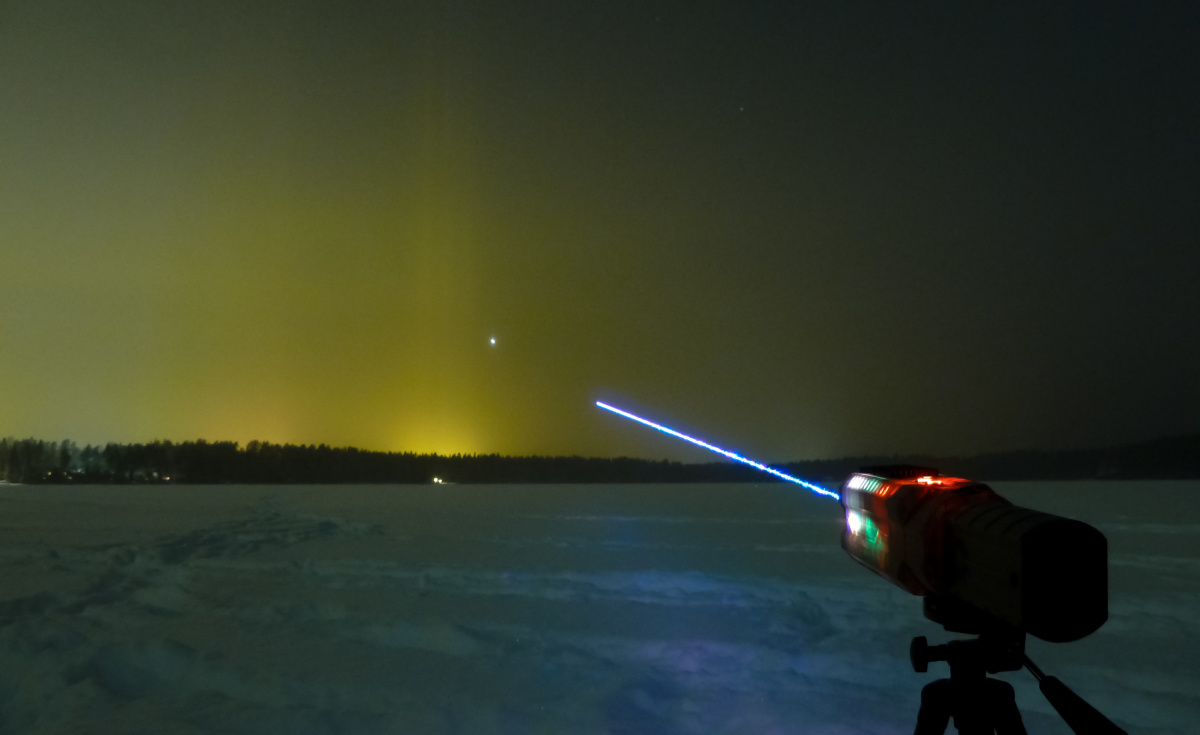

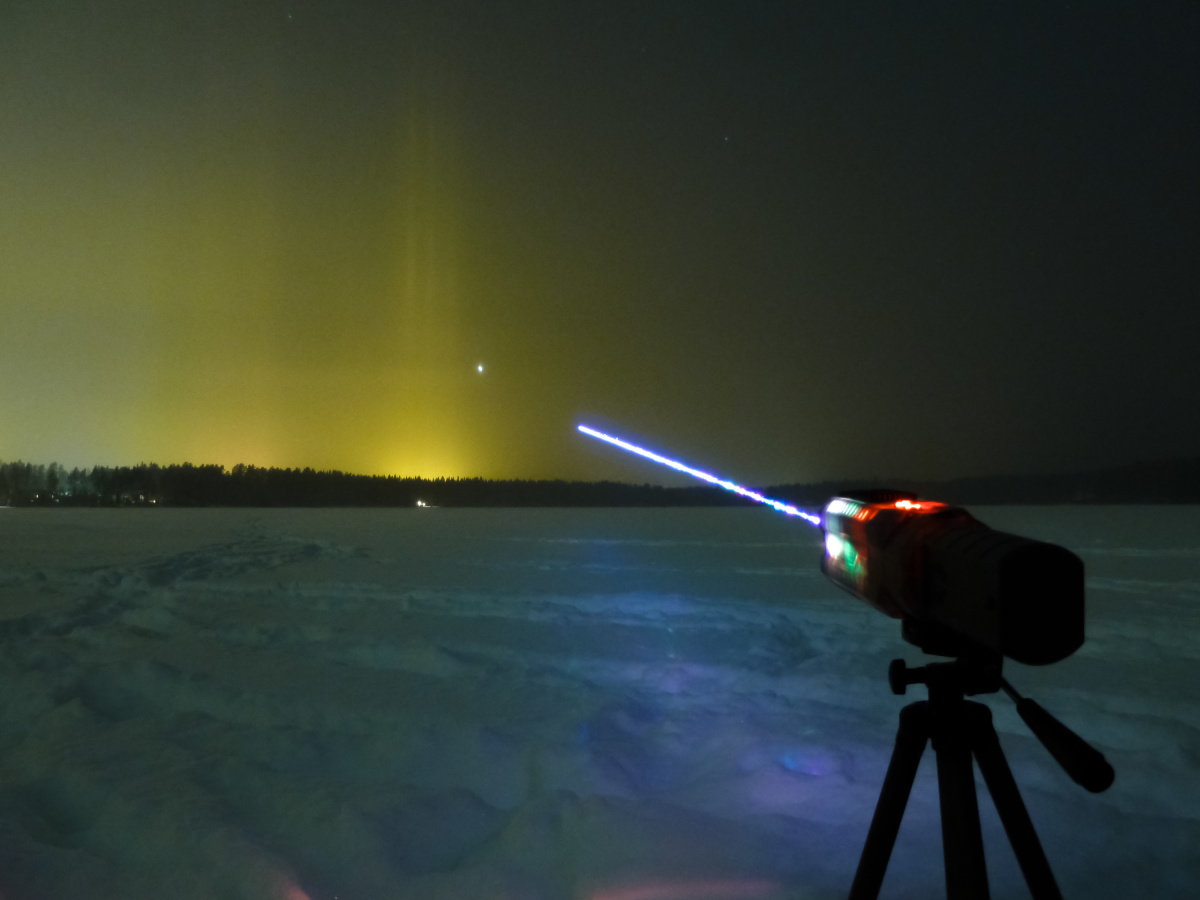

Few more white shots...
Air full of tiny ice crystals and lights are making beautiful beams high up to sky..
I saw few Diachi photos before and I've been waiting this kind of weather long time ;)




Yeah, you can tell that the alignment of the laser's beams is about a good as it gets. Are they all single mode diodes? They would pretty much have to be to get that kind of alignment.

Last edited:
YES....Great Shots !!! -25 hahaha....Blank That !!!!!
Your build...and pics ...have put even more pressure on me...
to finish my current build....and move on to these perfect
OPT RGB modules !!!

And yes...such great alignment is only achievable with single emitter diodes !!!

Thank you for your sharing !!!

CDBEAM

Last edited:
Love the beam colours, amazing to think you can just pick your wavelength and there it is.
Those microRGB units certainly produce a beautiful beam.
When I was testing mine I was just awestruck at the tight beam and the gorgeous colours it produces, mmmm white !!!.

I even managed to light a match !! {bonus, LOL}

Beautiful scenery mate !

RB

Yeah, and it was worth of every penny! :beer:

Outstanding work----the design and CAD work are beyond good---exceptional effort, exceptional results! Nice going.

Tha Optlasers micro RGB module makes whatever effort worthwhile--such good beam alignment---fantastic colors --excellent white---makes a big difference.

Last edited:
S06J X12 on left-beam right along BDR209X16 in the right..(plain' no fog or likewise)
Huawei P8max mobilepicture on standard setting X12 & X16

X822 LE2M mobilepicture std sett.. X12 & X16


a stander comming short with close to 1kg of metalhosting dangling..




backplate, so i dont blind any neighboors, wicked how much burningeffect
there still are in play over many many meters in infinitybeam clothing as to relative amp on 405nm scene.


Osram PLTB450B with an weak A130 at the side, but the batteries in the 130 was lacking (the osram pltb450b is driven quite konservativ as to an weak driver)
Huawei P8Max mobile.

the Osram PLTB450B build
(X822 L2M pic.)

And here two single mode OsramPLT5 450B side by side.
(P8MAX pic)


kudos to the outside pictureshoots in this fascinating beam-thread, looks wicked and partically at a distance' all this leveraging of massless particles..

Last edited:
