Divergence

brendon7358

Active member
Joined
Jul 2, 2011
Messages
850
Points
43
Which 520nm (or 515nm) diode has the best divergence? I don't care about the power. Are dpss 532nm lasers still better? What's the best divergence diodes available in any wavelength? I read about the lpc-826 is that still the best? I want to build a laser, and I want the divergence to be the best possible. :thanks:




BobMc

Well-known member
Joined
Apr 23, 2016
Messages
3,815
Points
113
As far as I am aware DPSS modules have better divergence over all, than direct diode lasers. :thinking:
Hopefully someone that knows for sure will chime in.

Just so you know, the new n450 and the n465 produce a real nice beam with some nice divergence, if your interested in a higher power unit. :thinking:


ZRaffleticket

Well-known member
Joined
Feb 4, 2010
Messages
3,003
Points
113
The sharp 505nm diodes basically don't diverge. Seriously.

Spot at aperture:


Spot at 50 feet, with the focus a little less than perfect:




Edit: and video evidence


You're also good with the pl520 and the pl520b, though the plp520b is multimode (albeit barely) and won't have as good divergence.

Sharp's is the best though.

Last edited:

GSS

Well-known member
Joined
Apr 28, 2015
Messages
4,666
Points
113
Yup my PL520 is quite good even with a G2..
For higher powers the PLTB450B is really great and cheap on Dtr's sight.

I also thought the 209's and 12x's 405's were just about the best??


ZRaffleticket

Well-known member
Joined
Feb 4, 2010
Messages
3,003
Points
113
The sharp diodes slightly outperform the 209's for divergence. Not sure about the 12x's

Edit: cross referenced, at 50 feet I see no winner between the bdr-209, the sharp 505nm, and sharp 480nm

Last edited:

CurtisOliver

Well-known member
LPF Site Supporter
Joined
Jun 12, 2015
Messages
6,664
Points
113
Wow, so those 505’s and 480’s are also have incredible divergence which I wasn’t aware of. Thanks for sharing that.


CurtisOliver

Well-known member
LPF Site Supporter
Joined
Jun 12, 2015
Messages
6,664
Points
113
Yep. The WL was more important at the time. Knowing that they are also great with beam quality is now making me want one even more. :p


diachi

Well-known member
Joined
Feb 22, 2008
Messages
9,748
Points
113
As far as I am aware DPSS modules have better divergence over all, than direct diode lasers. :thinking:
Hopefully someone that knows for sure will chime in.

Just so you know, the new n450 and the n465 produce a real nice beam with some nice divergence, if your interested in a higher power unit. :thinking:
DPSS generally offers better divergence, at least assuming the beam quality is good and the laser is producing a nice Gaussian beam, which is easier to achieve with high powered DPSS compared with high powered direct diode lasers. Single mode diodes can be rather good too but the power is generally lower, with a few exceptions.

The sharp 505nm diodes basically don't diverge. Seriously.

Spot at aperture:


Spot at 50 feet, with the focus a little less than perfect:




Edit: and video evidence


You're also good with the pl520 and

Sharp's is the best though.
Impressive! Still need to get my hands on one of those...


Alaskan

Well-known member
LPF Site Supporter
Joined
Jan 29, 2014
Messages
11,748
Points
113

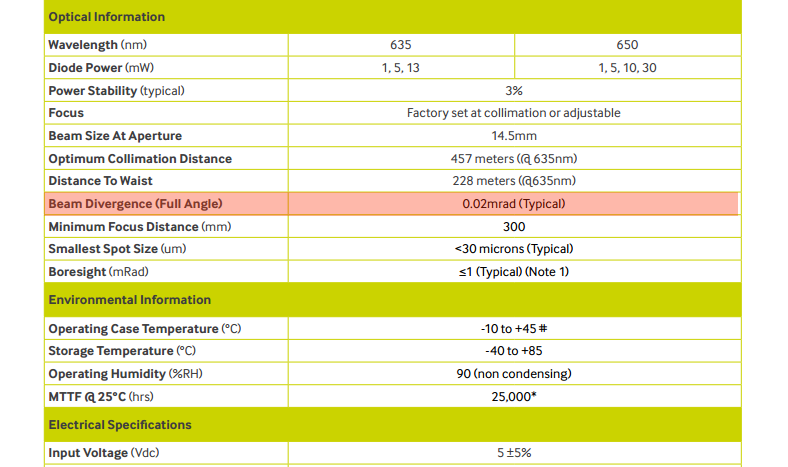

I am surprised the divergence is that low, also those diodes on that list, huh? That's incredibly low.


Encap

Well-known member
Joined
May 14, 2011
Messages
5,289
Points
113
Not sure what you are meaning by diode divergence. Raw diode or divergence of a diode + lens or lenses.

The raw uncorrected beam from any laser diode has very high divergence due in part to the fact that the cavity is a few mm long (if that).

Divergence of a pointer beam is more a matter of optics employed than raw diode divergence.

Last edited:

steve001

Well-known member
Joined
Jun 3, 2007
Messages
2,360
Points
113
I am surprised the divergence is that low, also those diodes on that list, huh? That's incredibly low.
One of their descriptions say they use a long focal length lens. The beam diameter on a red laser is 14mm.


lazeristasUVISIR

Active member
Joined
Jan 5, 2011
Messages
409
Points
28
I want to build a laser, and I want the divergence to be the best possible. :thanks:
Take any single mode laser and work on optics to get a desired divergence. Hint: a telescope helps a lot.

If you have some other constrains, then you need to spell them out.


brendon7358

Active member
Joined
Jul 2, 2011
Messages
850
Points
43
I just want to build a simple pen or small laser that looks like it goes on forever. My first laser was a 532nm from ebay and the divergence was fantastic. I didn't realize it until it broke and the laser I replaced it with (also a 532nm) was much worse, could have been because it was more powerful so I could notice it more though. I have had a pl520 before and I remember it being really good, I just didn't remember what diode it was. I took the laser out after not using it for a few months and it didn't work anymore. Anyways, in short I want to build a small simple laser that has good enough divergence that it looks like it goes on forever. Preferably powerful enough to see on the clouds. A 12x that can pop balloons at 100ft would be awesome but unfortunately I wouldn't really be able to see it much at that distance.


GSS

Well-known member
Joined
Apr 28, 2015
Messages
4,666
Points
113
I'm guessing your PL520 is the *sram unit for $25 on Dtr's sight..
Mine is in a pen size defiant flashlight host and is doing 100mw at .325mA with the G2.
I see your sig shows a 515nm diode, are you not happy with the spec's or is it just under powered?

Last edited:
