What battery does my laser need?

JayC

Member
Joined
Oct 20, 2013
Messages
68
Points
8
Hello.

I ordered a cheap 20 dollar 532nm green laser from Ebay about a month ago and it finally arrived. I didn't notice until now that the listing said it didn't come with a battery. I have two concerns. My first concern is that on the warning label it says "Max output power <5000mw" which seems a bit odd... and my second concern is I have no idea what battery to buy.
The side of the laser says SDLaser 303 and it came with a charger, but after doing searching I could not find out what battery I need or why mine says <5000mw. Can anyone shed some light on this?

Thanks!

  • Like
Reactions: Hap



Hap

Super Moderator
Staff member
Joined
Sep 5, 2013
Messages
8,532
Points
113
Hey Jay,

I would just buy some AAA. Most of those eBay pens take AAA, but be aware it will use batteries at a fast rate! :beer:


ZRaffleticket

Well-known member
Joined
Feb 4, 2010
Messages
2,994
Points
113
Nevermind: Greenlander, did you even try to look up what he bought..?

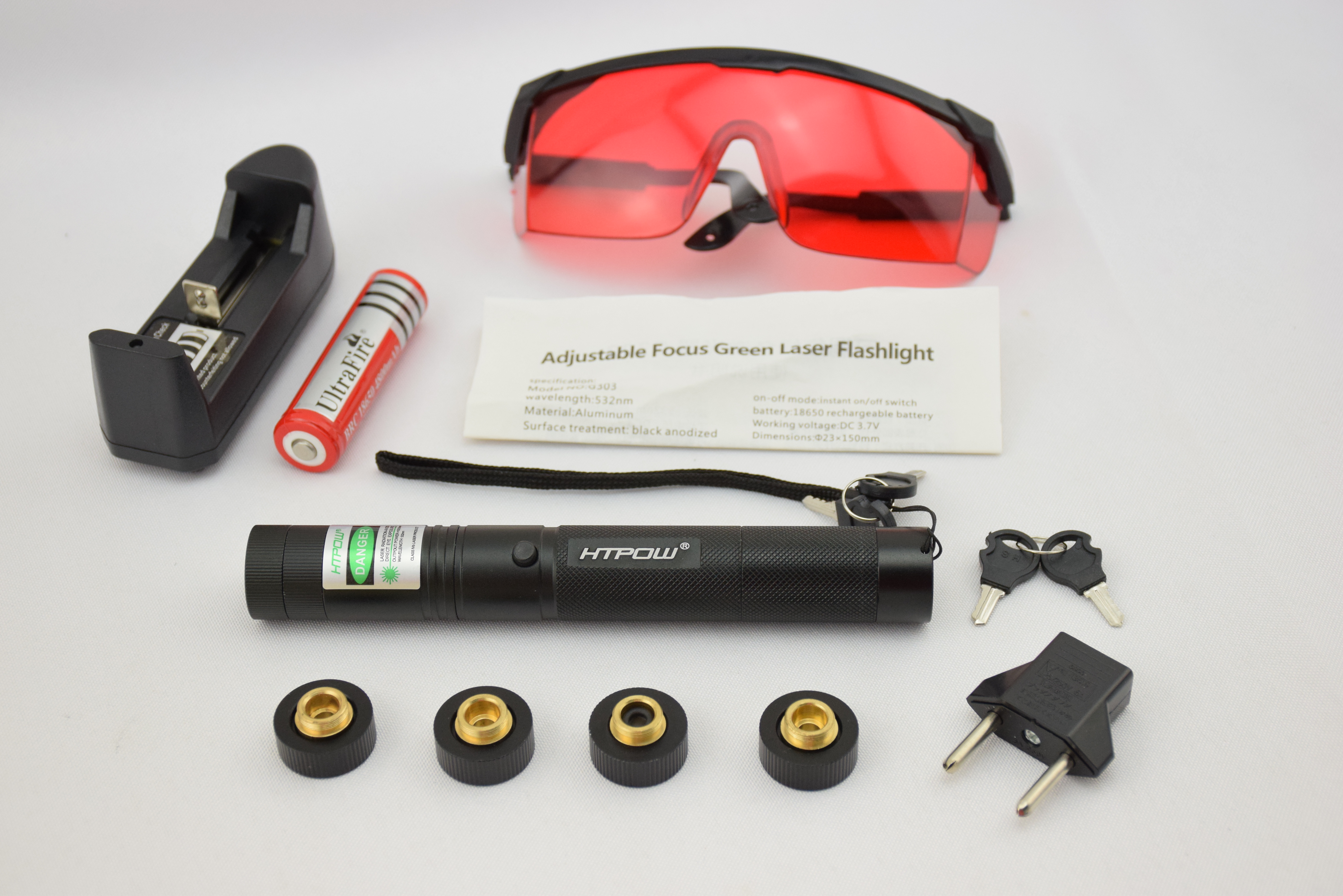

Is it the same as this laser?

It'll take lithium ion batteries numbered "18650".

Take a look around the forum for those, I think there are a few members selling some good cells for cheap prices.

Last edited:

KRNAZNBOY

Well-known member
Joined
Mar 29, 2013
Messages
1,221
Points
63
Pictures would help. Is it a pen style, or is it thicker?

Pen Styles usually use 2 x aaa

The thicker ones usually use a 18650...

Although I believe the SD models are usually 18650


Npglaserer

New member
Joined
Jun 27, 2013
Messages
76
Points
0
I believe the SD laser 303's take 18650 batteries. If it just came with a charger you can order some off of amazon, ebay, or somewhere. Also, <5000mW just means that the laser is between 0 and 4999 mW. It probably will be about 100-200 mW or so.

EDIT: wow those guys are fast

Last edited:

Hap

Super Moderator
Staff member
Joined
Sep 5, 2013
Messages
8,532
Points
113
I believe the SD laser 303's take 18650 batteries. If it just came with a charger you can order some off of amazon, ebay, or somewhere. Also, <5000mW just means that the laser is between 0 and 4999 mW. It probably will be about 100-200 mW or so.
Most likely, with im sure at least 50% of that being IR.


crazyspaz

New member
Joined
Jul 4, 2012
Messages
2,862
Points
0
Yes, that laser takes an 18650. I bought one a week ago. Cheap, but was pretty bright-now when i use it i smell burning electronics, and the power drops quick :p


override

New member
Joined
Jan 28, 2017
Messages
6
Points
0
I've got a Dragon 447nm spartan 1w and the website lists the battery as a cr123. I'm wondering if I can use a couple 16340s instead.

I see that a lot of pointers use 18650s which I know all about, but I'm wondering if the diode in my laser may be on the unstable side and require the more consistent voltage of a cr123.

Anyone have a solid answer on this? I don't want to risk an expensive laser on cheap batteries.

I found this while trying to find an answer but none of it pertains to lasers

Thanks in advance!

PS the best 18650s out there imo are the Sony vtc5a and the LG HG2, but thats as they pertain to electronic cigarettes. What kind of discharge ratings do lasers require?


diachi

Well-known member
Joined
Feb 22, 2008
Messages
9,736
Points
113
I've got a Dragon 447nm spartan 1w and the website lists the battery as a cr123. I'm wondering if I can use a couple 16340s instead.

I see that a lot of pointers use 18650s which I know all about, but I'm wondering if the diode in my laser may be on the unstable side and require the more consistent voltage of a cr123.

Is your laser doing something which would make you think there's some "instability"? "More consistent voltage" not sure what you mean by that...?

Anyone have a solid answer on this? I don't want to risk an expensive laser on cheap batteries.

Use the batteries recommended by the manufacturer and you won't risk your expensive laser.

I found this while trying to find an answer but none of it pertains to lasers

Thanks in advance!

PS the best 18650s out there imo are the Sony vtc5a and the LG HG2, but thats as they pertain to electronic cigarettes. What kind of discharge ratings do lasers require?

Lower discharge ratings than electronic cigarettes that's for sure. Your 1W spartan will be pulling less than 10W if I had to guess.

See answers in red.


override

New member
Joined
Jan 28, 2017
Messages
6
Points
0
A cr123 puts out a consistent voltage throughout its discharge cycle, whereas a 16340 is fully charged at 4.2 volts and drops down to 3.2 volts when it's fully discharged. I'm curious if the varying voltage or overpowering would harm the laser


Benm

Well-known member
Joined
Aug 16, 2007
Messages
8,113
Points
113
It depends on the laser design.

CR123 and 18340 are the same physical size.

CR123 is originally a description of a primary (non-rechargeable) lithium cell that was often used in photo camera's and such, and has a voltage of 3.0 volts, fairly constant from fresh to depletion.

If you want to know if a device that claims to use CR123 cells you should find the maximum input voltage for it. That sould be 4 volts per cell (so 8 if it has 2 in series etc). Many laser pointers are actually intended to be used with rechargeable cells and thus higher voltages, but it cannot be guaranteed.


override

New member
Joined
Jan 28, 2017
Messages
6
Points
0
It depends on the laser design.

CR123 and 18340 are the same physical size.

CR123 is originally a description of a primary (non-rechargeable) lithium cell that was often used in photo camera's and such, and has a voltage of 3.0 volts, fairly constant from fresh to depletion.

If you want to know if a device that claims to use CR123 cells you should find the maximum input voltage for it. That sould be 4 volts per cell (so 8 if it has 2 in series etc). Many laser pointers are actually intended to be used with rechargeable cells and thus higher voltages, but it cannot be guaranteed.
I've continued looking around for an answer and come up with some good things but was unable to find a maximum working voltage for the diode.

Seems the diode was sourced from a canon projector but I can't find raw specs.

I did find a couple reviews saying the laser would operate fine on 3.2v lifep04 16340s but imr and icr batteries operating at 3.7v would overheat the laser. unfortunately these batteries would need a special charger and I'm not sure I want to do that.

I am curious though, seeing that a lot of these lasers are recommending 18650s what batteries are you guys using?
