Remember to exercise those argons!

[swamidog]

ok.. sure. always a treat to heat my house with gas and pretty light



[diachi]

Just fired up my argon for the first time in how long. I'm surprised it only took 10 seconds to lase...

Also, I really need to invest on a cooling solution. Cavity gets HOT after 60 seconds...

Yeah... really need a bunch of air going through there. Even the smallest air cooled tubes are dumping >500W of heat at designed tube currents.

*Tube gets hot would be more accurate than cavity.

ok.. sure. always a treat to heat my house with gas and pretty light

Envy intensifies...



[swamidog]

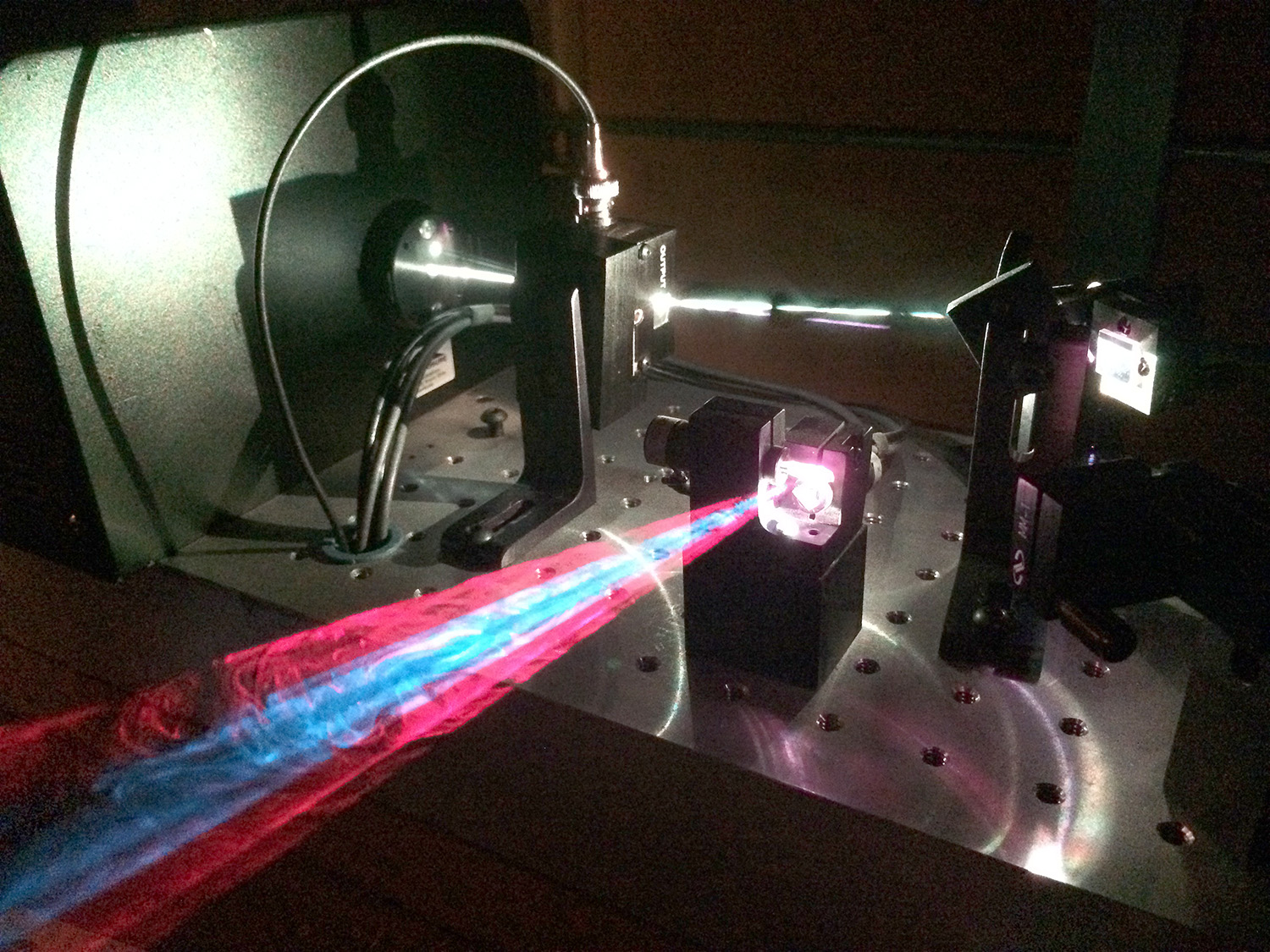

i had to get an additional 220v outlet wired up so i could run the little ArKr in my living room.. 'cause geek

Envy intensifies...



[vk2fro]

ok.. sure. always a treat to heat my house with gas and pretty light

OMG that looks awesome. How are you breaking out the colours? notice the beam is white (duh - Ar/Kr), but output from the galvos is different colours (reds and blues)



[diachi]

OMG that looks awesome. How are you breaking out the colours? notice the beam is white (duh - Ar/Kr), but output from the galvos is different colours (reds and blues)

PCAOM before the scanner. You see that box the beam is passing through? The one with the coax and BNC connector? That's the PCAOM. Polychromatic Acousto Optical Modulator for those that don't know.



[swamidog]

PCAOM before the scanner. You see that box the beam is passing through? The one with the coax and BNC connector? That's the PCAOM. Polychromatic Acousto Optical Modulator for those that don't know.

exactly! the rf driver for the pcaom is mounted under the laser. you can see the coax cable coming up from a hole in the breadboard. that's my little holy grail laser with ct620 galvos. such a beautiful little thing:

here's a link to some info on pcaoms. they're really the standard for color and intensity modulation for ion lasers.

Archives and Download - PCAOM basics - www.LaserFX.com



[vk2fro]

Need to get me one of those so I can run my ILT 5500 through it - then onto my DT 40's. Shame mines only an Ar laser, so would need a source of red - DTR's shop o' diodes should help there. And I need to edit my signature. Some of my lasers I no longer own. Otherwise I'd use the Omni. Sold them to fund the purchase of a drone, and I live in an apartment, so only have room really for one air cooled ion.



[swamidog]

scour ebay for them. they show up from time to time. i think the last one i bought was 75$.

PCAOM before the scanner. You see that box the beam is passing through? The one with the coax and BNC connector? That's the PCAOM. Polychromatic Acousto Optical Modulator for those that don't know.

Need to get me one of those so I can run my ILT 5500 through it - then onto my DT 40's. Shame mines only an Ar laser, so would need a source of red - DTR's shop o' diodes should help there. And I need to edit my signature. Some of my lasers I no longer own. Otherwise I'd use the Omni. Sold them to fund the purchase of a drone, and I live in an apartment, so only have room really for one air cooled ion.



[ultimatekaiser]

Yeah I probably should break mine out...its been sitting all summer due to it making my room bloody hot even in winter.



[paul1598419]

Always love seeing these in action. I've got way too many irons in the fire right now. Thanks for showing this here. :yh:



[FRITZ HID]

.....yeahhhhh it's about time to give the 300wc a leg stretching....



[paul1598419]

I'm waiting for cooler weather before I get that room heater going again. Maybe in a couple months. I still have my A/C running.



[FRITZ HID]

I'm waiting for cooler weather before I get that room heater going again. Maybe in a couple months. I still have my A/C running.

damn man, been firing up the boring heaters at night here!
almost time to ignite the main furnace.

personally, i hate firing up my Ar/Kr without an audience. :/



[diachi]

damn man, been firing up the boring heaters at night here!
almost time to ignite the main furnace.

personally, i hate firing up my Ar/Kr without an audience. :/

Send it to me, I'll be the audience.



[LtKernelPanic]

Awesome shot with the galvos. I have a set I ordered in a GB here years ago for a planned DYI projector that I've never even used. I should dig them out and figure out how to hook them up and use them with my argons.

Sadly I've neglected my argons for months since for most of June, July, and August it was balls hot here and I didn't feel like adding more heat to the house.



[LtKernelPanic]

Finally got a new fan for my rectangular head and fired up tonight. Not shockingly even after sitting in storage for seven months it fired on the first pulse. May need fabricobble an adapter so I can use the blower from from cylindrical head since this one might not be moving enough air.
