Radioisotopes Are Your Friends

[madmacmo]

It's astounding
Time is fleeting
Madness takes it's toll . . .

>>>>In Medias Res<<<<

This year is the 70th Anniversary of the Successful Test of the First Atom Bomb at the Trinity Site in New Mexico

The Trinity Site is where the first atomic bomb was tested at 5:29:45 a.m. Mountain War Time on July 16, 1945. The 19-kiloton explosion not only led to a quick end to the war in the Pacific but also ushered the world into the atomic age. All life on Earth has been touched by the event which took place here.

The 51,500-acre area was declared a national historic landmark in 1975. The landmark includes base camp, where the scientists and support group lived, ground zero, where the bomb was placed for the explosion, and the McDonald ranch house, where the plutonium core to the bomb was assembled. Visitors to a Trinity Site Open House see ground zero and the McDonald ranch house. In addition, one of the old instrumentation bunkers is visible beside the road just west of ground zero. . .

(Continue reading . . . WSMR Public > Public Affairs > Trinity Site > History)

Trinity Site Open House will be conducted on Saturday October 3, 2015 for the hours of 8 a.m. - 2 p.m with access via the Stallion Gate.
The Trinity site closes promptly at 3:30 p.m.
This event is free and open to the public. No reservations are required.
New Mexico Highway Stallion Gate Entrance at Exit I-25 on mile marker 139 (San Antonio, N.M.) and Visitors are allowed to enter and exit through this gate unescorted during the open house hours. . .

(Continue reading WSMR Public > Public Affairs > Trinity Site)

TAKEmyTRIP.com - Trinity Atomic Bomb Site White Sands Missile Range, NM

------------------------------------------------

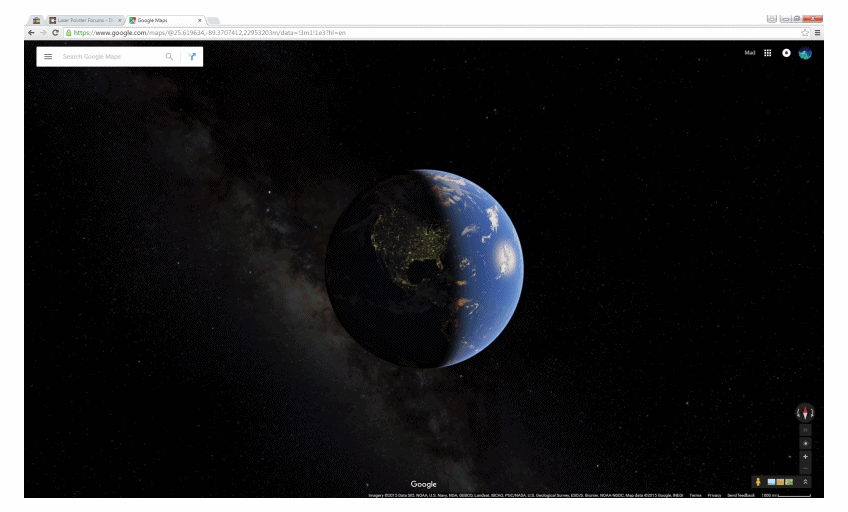

Earth Zoom to Trinity Site

------------------------------------------------

In deciding whether to visit ground zero at Trinity Site, the following information may prove helpful.
Radiation levels in the fenced, ground zero area are low. On an average the levels are only 10 times greater than the region´s natural background radiation. A one-hour visit to the inner fenced area will result in a whole body exposure of one-half to one millirem. . .

(Continue reading . . . WSMR Public > Public Affairs > Trinity Site > Radioactivity)

------------------------------------------------

This is the text of the letter signed by Albert Einstein which was delivered to President Franklin Roosevelt by Alexander Sachs on October 11, 1939. The chief author is believed to be Leo Szilard.

Albert Einstein
Old Grove Rd.
Nassau Point
Peconic, Long Island
August 2d, 1939

F.D. Roosevelt
President of the United States
White House
Washington, D.C.

Sir:

Some recent work by E. Fermi and L. Szilard, which has been communicated to me in manuscript, leads me to expect that the element uranium may be turned into a new and important source of energy in the immediate future. Certain aspects of the situation which has arisen seem to call for watchfulness and, if necessary, quick action on the part of the Administration. I believe therefore that it is my duty to bring to your attention the following facts and recommendations.

In the course of the last four months it has been made probable--through the work of Joliot in France as well as Fermi and Szilard in America--that it may become possible to set up a nuclear chain reaction in a large mass of uranium, by which vast amounts of power and large quantities of new radium-like elements would be generated. Now it appears almost certain that this could be achieved in the immediate future.

This new phenomenon would also lead to the construction of bombs, and it is conceivable--though much less certain--that extremely powerful bombs of a new type may thus be constructed. A single bomb of this type, carried by boat and exploded in a port, might very well destroy the whole port together with some of the surrounding territory. . .

(Continue reading . . . WSMR Public > Public Affairs > Trinity Site > Einstein´s Letter)

Members of the Manhattan Project

Albert Einstein- Originally was a German Scientist but left Germany to escape persecution. Told Franklin D. Roosevelt about how Germany might be planning to build an atomic bomb. Enrico Fermi - originally an Italian Scientist escaped from Fascist Italy to come to American. He helped Einstein convince Roosevelt how Germany might be trying to build an atomic bomb.

Leadership Group - Robert Oppenheimer and project leader
Theoretical Group - Eugene Wigner
Physics Group - Enrico Fermi
Chemical Group - Samuel Allison. . .

[

(Continue reading . . . Members of the Project)

------------------------------------------------

Commissioning of the Trinity Site

On Monday morning July 16, 1945, the world was changed forever when the first atomic bomb was tested in an isolated area of the New Mexico desert. Conducted in the final month of World War II by the top-secret Manhattan Engineer District, this test was code named Trinity. The Trinity test took place on the Alamogordo Bombing and Gunnery Range, about 230 miles south of the Manhattan Project's headquarters at Los Alamos, New Mexico. Today this 3,200 square mile range, partly located in the desolate Jornada del Muerto Valley, is named the White Sands Missile Range and is actively used for non-nuclear weapons testing.

Before the war the range was mostly public and private grazing land that had always been sparsely populated. During the war it was even more lonely and deserted because the ranchers had agreed to vacate their homes in January 1942. They left because the War Department wanted the land to use as an artillery and bombing practice area. In September 1944, a remote 18 by 24 square mile portion of the north- east corner of the Bombing Range was set aside for the Manhattan Project and the Trinity test by the military. . . .

(Continue reading . . . Trinity Atomic Web Site )

Oak Ridge, the Manhattan Project facility where uranium was purified| Photo: Life/Ed Clark, 1945

------------------------------------------------

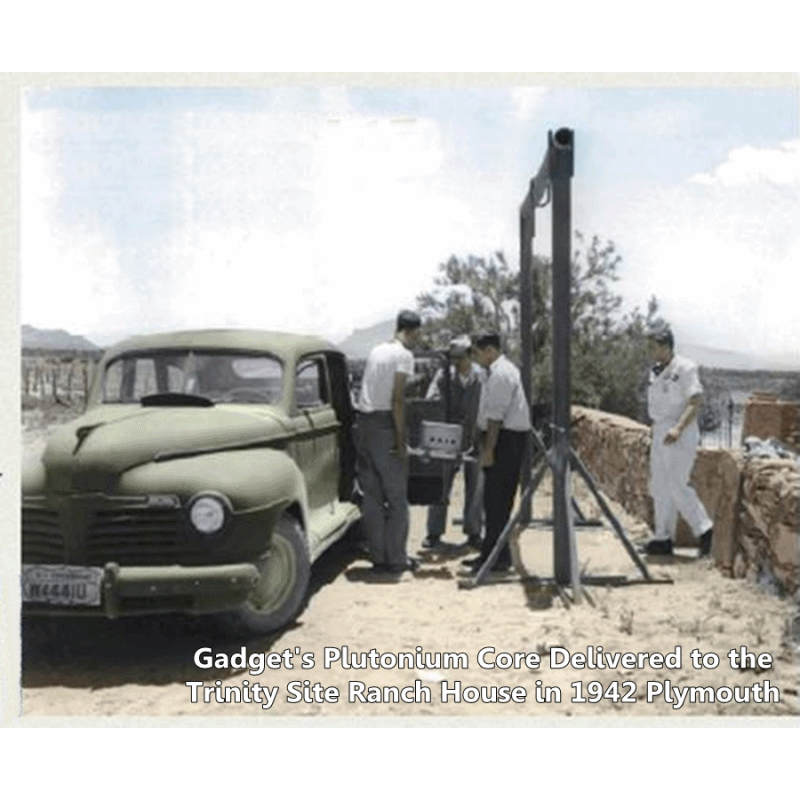

Building the First Atomic Bomb in an Old Ranch House and Hoisting it up the 100’ Test Tower

------------------------------------------------

An Eye Witness Accounting of The First Atomic Test

((Smith watched from Compania Hill near present-day Stallion Range Center))
INTER-OFFICE MEMORANDUM
DATE: 5 September 1945
TO: File
FROM: Ralph Carlisle Smith
SUBJECT: Comments on Trinity Test Shot Trip.

At about 1945 MWT, 15 July 1945, the coordinating council started from the Los Alamos Technical Area, riding in a three bus convoy with three G.I. sedans driven by Convoy Commander Captain George Turner, Mr. David Dow, and Dr. Earl Long and with a G.I. truck carrying spare equipment. The first stop was at the Camel on the Santa Fe Road. Then through back roads of Santa Fe to outskirts of Albuquerque where we stopped twenty minutes for convoy to be reassembled. The truck had broken down and the sedans stopped to get passengers at Santa Fe (Dr. C.A. Thomas).

We then proceeded to Wilson´s garage to get gas, remaining in Albuquerque for about 45 minutes -- the passengers wandering about town. At the Hilton, Sir James Chadwick, William Laurence, William Fouler, Tom Lauritsen, Charles Lauritsen, Major Ackerman, and an Army Captain (S-2) awaited to convoy. 2nd Lt. Dazzo (S-2) was there but was returning to Los Alamos.

We proceeded to Trinity (just beyond San Antonio, N. Mex) on Route U.S. 385 at a turn off marked Harriets Ranch. We were first stopped at the bivouac of Major T.O. Palmer´s Special Detachment of Engineers, who were stationed there for any emergency such as evacuation of personnel. After a brief check we proceeded to the Military Police Post No. 2 which was about 20 miles from zero point and about ten miles from the Trinity Base Camp. This was approximately 0200 to 0230 16 July 1945. About 0500 the searchlights allegedly at 6 miles from zero point started playing about, apparently fixing cloud elevation. At about 0520, the warning came by radio that the test was about to take place in 10 minutes. 1st Lt. Schaeffer, a civilian, and I stretched out on a blanket facing south to the spot where the several searchlights seemed to be focusing on the ground. A glow was appearing in the sky toward the East so that the mountain range stood out quite distinctly. The road was to our right and the buses to the rear of us. It was bright enough that you could identify people several hundred feet away.

1st Lt. Huene fired a rocket at minus six minutes and again at minus three. The latter did not explode in the air, hence another rocket went up about minus one minute. About then you could hear the warning siren at the bivouac area. I was staring straight ahead with my open left eye covered by a welders glass and my right eye remaining open and uncovered. Suddenly, my right eye was blinded by a light which appeared instantaneously all about without any build up of intensity. My left eye could see the ball of fire start up like a tremendous bubble or nob-like mushroom. I Dropped the glass from my left eye almost immediately and watched the light climb upward. The light intensity fell rapidly hence did not blind my left eye but it was still amazingly bright. It turned yellow, then red, and then beautiful purple. . . .

(Continue reading . . . WSMR Public > Public Affairs > Trinity Site > Eyewitness Account )

------------------------------------------------

------------------------------------------------

Aerial Views of The Blast Zone

------------------------------------------------

------------------------------------------------

At Ground Zero Two Months Later

------------------------------------------------

Even though . . .

Trinitite was easily collected by the public from the Trinity Site after the government abandoned it with the ending of WWII, that is for those so inclined to willfully drive way the heck out into the absolute bloody middle of nowhere to pocket the stuff that was also a lot more radioactive back then before the short half life isotopes faded out. As such, the crater of green glass (Trinitite as it became known) remained untouched until 1953, when the AEC had the site cleaned up and the green Trinitite glass buried several miles south of the site. The crater, 2400 feet in diameter, and ten feet deep, was then filled in and graded. A fence, today known as the outer perimeter fence, was erected, and signs were posted restricting the site.

(Continue Reading . . . The Trinity Site at NotPurfect.com)

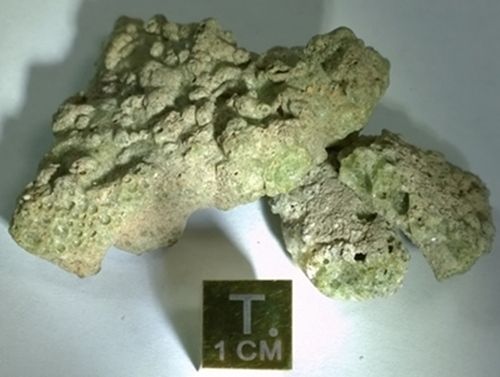

Trinitite, also known as atomsite or Alamogordo glass, is the glassy residue left on the desert floor after the plutonium-based Trinity nuclear bomb test on July 16, 1945, near Alamogordo, New Mexico. The glass is primarily composed of arkosic sand composed of quartz grains and feldspar (both microcline and smaller amount of plagioclase with small amount of calcite, hornblende and augite in a matrix of sandy clay) that was melted by the atomic blast. It is usually a light green, although color can vary. It is mildly radioactive but safe to handle.

In 2005 it was theorized by Los Alamos National Laboratory scientist Robert Hermes and independent investigator William Strickfaden that much of the mineral was formed by sand which was drawn up inside the fireball itself and then rained down in a liquid form. In a 2010 article in Geology Today, Nelson Eby of University of Massachusetts at Lowell and Robert Hermes described Trinitite:

Contained within the glass are melted bits of the first atomic bomb and the support structures and various radionuclides formed during the detonation. The glass itself is marvelously complex at the tens to hundreds of micrometre scale, and besides glasses of varying composition also contains unmelted quartz grains. Air transport of the melted material led to the formation of spheres and dumbbell shaped glass particles. Similar glasses are formed during all ground level nuclear detonations and contain forensic information that can be used to identify the atomic device.

A number of different types of Trinitite have been identified. Green is the most common form. Black contains iron from the tower structure. Red contains copper from the device used in the blast or from the communications cables that led away from the site. Both black and red specimens are extremely rare. Rounded "pearls" also are found, which come from melted silica that returned to solid form before hitting the ground.

The glass has been described as "a layer 1 to 2 centimeters thick, with the upper surface marked by a very thin sprinkling of dust which fell upon it while it was still molten. At the bottom is a thicker film of partially fused material, which grades into the soil from which it was derived. The color of the glass is a pale bottle green, and the material is extremely vesicular with the size of the bubbles ranging to nearly the full thickness of the specimen.

------------------------------------------------

And Now for the Good Stuff

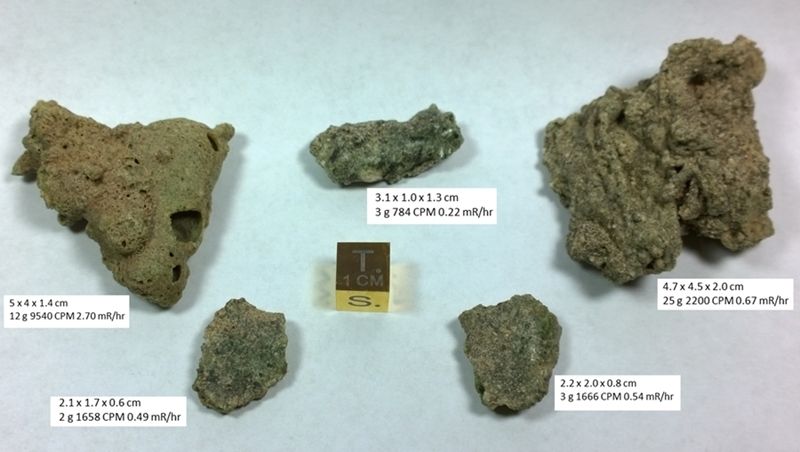

Here are five Trinitite specimens I have been able to collect so far.

The 3 gram piece at top middle I bought from UnitedNuclear.com The other four I found at a rock shop in Roswell, NM last month. It seems the owner, Donald James, acquired a handful of Trinitite from an estate sale of an old New Mexico rancher that had collected the stuff himself back in the late 40’s.

Donald has been super to work with and expressed he will be glad to fill mail orders should anyone wish to contact him for doing so.

He has the specimens priced listed by size, as is the norm among mineral dealers. I used my SEI Inspector radiation detector and spent some time sorting through what he had in order to be able to share what I found with you guys.

I have to state a disclaimer though as the Trinitite readings can vary significantly between just slightly different angles of measurement. Something else worth noting is the fact the Trinitites "smooth side" (being as that side was facing the million degree blast) usually is multiple times higher in count than the much courser reverse side. So figure at least a plus or minus 10% of the CPM numbers I have shown shown.

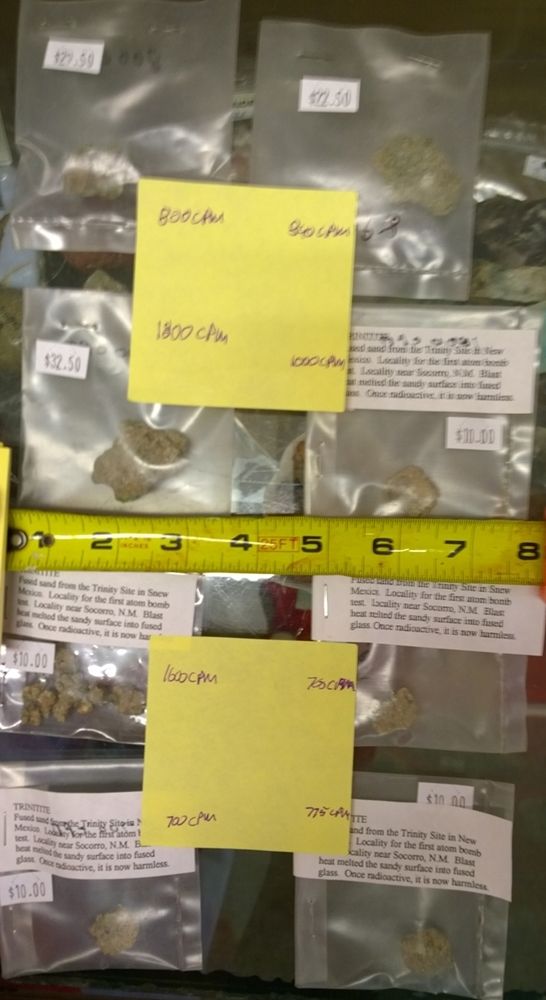

The first two images are the remainder of the larger specimens and the third image is of the few that fall within a middle size. There are about 30 or more small pieces (no images of) about a square centimeter weighing less than a gram, the majority of which at this size read about 200 CPM, some a gnats ass more or so. These are priced mostly around $10.

------------------------------------------------

2013 - Nuclear and Radiological Analysis of Trinitite by Georgia Tech Under Grad

------------------------------------------------

Here are a few other sources:
Mineralogical Research Co.

Paul Swartz at Tucson Meteorites

Radioactive Things
Some really nice large pieces but, holy atomic glass batman, look at the prices!

And as a further disclaimerary, May the Buyer Beware as there have been reports of unscrupulous sources engaging in pawning off fake Trinitite to willingly and unwitted buyers.


btw - I will follow up with anything interesting I may find while kicking some atomic glass at the site's open house next Saturday.



[madmacmo]

Place holder for a bit more



[madmacmo]

Place holder for a bit above and beyond



[madmacmo]

Really odd, really large (absolutely immense would be a better description) nuclear bomb archive - with a lot of the data and link additions made between 2000 to Mar 2005, then just a smattering between 2006 and 2009, until Oct 17 2016 with the deployment of a new and very odd indeed Home Page

Old Home Page - First Pulse Projects.org

New Home Page - First Pulse Projects.net

Index of the Bomb Project



[madmacmo]

David Charles Hahn Obituary – "The Radioactive Boy Scout" Dead at 39
October 30, 1976 - September 27, 2016 Shelby Township, Michigan


David Hahn From Wikipedia


The Radioactive Boy Scout - When a teenager attempts to build a breeder reactor
Article From the November 1998 issue of Harper’s Magazine By Ken Silverstein


Radioactive Boy lives! Student who sparked panic in 1996 after he built a nuclear reactor in his shed survived and now wants to invent a 100-year light bulb... out of 'safe' irradiated paint
By Laura Collins In Utica, Michigan
Published: 15:15 EST, 13 November 2013 | UPDATED: 11:33 EST, 14 November 2013

Published on Nov 26, 2013
Nucleaire scouting boy Part 1 from David Hahn

Published on Nov 26, 2013
Nucleaire scouting boy Part 2 from David Hahn



[Razako]

Interesting thread here.



[Seoul_lasers]

Interesting thread.

Being part of a Hazmat team at dockyard let me handle some pretty interesting items including an old vial of Radium paint from the mid 1930s. The entire glass jar (held about 250g of off-yellow powder) had been purpled/browned from the radiation. The cork was long gone and had popped (acc. to the Rad team leader) from helium build up.
Because the radium paint was no longer sealed, an entire wing of parts facility had to be evacuated while rad team came in and had a chance to remove the items. I found the bottle by accident along with several really large aircraft dials which had instrumentation faces completely covered in the paint. Several had surface measurements well in excess of 200 uSv/hr at the glass surface there were 10 each wrapped with old newspaper from summer of 1939 inside a box made of heavy teakwood or mahogany of so sort (wood alone is valuable). The instrument glasses were also fogged brown due to the intense activity inside the dial.

The area hadn't been seen in years. That was just one of many Radioactive items I found while being a student member of the Hazmat team.


The most radioactive items we handled (not with hands of course) was this
metallurgical source pig used for non destructive testing at Dockyard.
See below. One of these usually hold 65mCi of Co60.



[Benm]

Interesting thread.
Several had surface measurements well in excess of 200 uSv/hr at the glass surface there were 10 each wrapped with old newspaper from summer of 1939 inside a box made of heavy teakwood or mahogany of so sort (wood alone is valuable). The instrument glasses were also fogged brown due to the intense activity inside the dial.

Why would you be worried about 200 uSv/hr exposure?

Even someone not certified for radiological work could safely handle that vial for 10 to 25 hours depending on EU or US standards.

With certification that instantly goes up tenfold to 100 to 250 hours of handling time without exceeding our annual radiation allowance.

In general avoiding exposure to ionizing radiation is recommended, but there rarely is any need to panic over it either. Such small sources should not concern you that much really. By the time exposure reaches a Sievert an hour you should start getting out of the place rapidly.

Radioactivity is not the devil, something like a CT scan could give you a dose of 20 mSv if covering a large area, equal to 100 hours of playing with that vial.

The point where you get acute radiation sickness is much higher though, something in the order of 1 sievert (50 CT scans or messing about with that vial for months). It's fair to say if goes rapidly downhill from there though. An acute exposure to 1 sievert is survivable in most cases, but by the point it gets to 10 sieverts you're more likely to die.



[diachi]

Why would you be worried about 200 uSv/hr exposure?

Even someone not certified for radiological work could safely handle that vial for 10 to 25 hours depending on EU or US standards.

With certification that instantly goes up tenfold to 100 to 250 hours of handling time without exceeding our annual radiation allowance.

In general avoiding exposure to ionizing radiation is recommended, but there rarely is any need to panic over it either. Such small sources should not concern you that much really. By the time exposure reaches a Sievert an hour you should start getting out of the place rapidly.

Radioactivity is not the devil, something like a CT scan could give you a dose of 20 mSv if covering a large area, equal to 100 hours of playing with that vial.

The point where you get acute radiation sickness is much higher though, something in the order of 1 sievert (50 CT scans or messing about with that vial for months). It's fair to say if goes rapidly downhill from there though. An acute exposure to 1 sievert is survivable in most cases, but by the point it gets to 10 sieverts you're more likely to die.

Possibly worried about the risk of ingestion if the Radium was in powder form. That's a much larger risk as far as I know.



[Seoul_lasers]

Why would you be worried about 200 uSv/hr exposure?

Even someone not certified for radiological work could safely handle that vial for 10 to 25 hours depending on EU or US standards.

With certification that instantly goes up tenfold to 100 to 250 hours of handling time without exceeding our annual radiation allowance.

In general avoiding exposure to ionizing radiation is recommended, but there rarely is any need to panic over it either. Such small sources should not concern you that much really. By the time exposure reaches a Sievert an hour you should start getting out of the place rapidly.

Radioactivity is not the devil, something like a CT scan could give you a dose of 20 mSv if covering a large area, equal to 100 hours of playing with that vial.

The point where you get acute radiation sickness is much higher though, something in the order of 1 sievert (50 CT scans or messing about with that vial for months). It's fair to say if goes rapidly downhill from there though. An acute exposure to 1 sievert is survivable in most cases, but by the point it gets to 10 sieverts you're more likely to die.

Actually, individually they are fine as you said, but when they are all packaged together the total field strength is increased considerably actually in this case it was well beyond what was determined as being safe at a distance of 1m, ~50cm, as well as the total surface activity.

Reasons for disposal :
a) These were not marked down as being Radioactive on the product description. No hazard markings.

b) Some of dials had broken faces which then exposed the radium paint dust
particles to the outside air. This is VERY hazardous to people attempting to move them during a massive cleanout of old inventory.

c) Items were packaged in such a way that the total field strength was greater than what was allowed per cm2 at the surface of the container.



Several of these ended of at an Aviation museum in Ontario, but the ones with cracked faces went directly to CNSC disposal team.



[Benm]

Oh, let me be very clear on that: Exposure generally is not that dangerous if the source is kept outside of your body. This includes things like handling radioactively painted watch faces and such carefully.

Something like radium-226 lighted watch hands, signs and such are perfectly safe to have in a watch, but the material is quite dangerous when ingested or inhaled.

The decay of this form of radium is in alpha radiation that is very good for lighting up phosphors and such, but in itself cannot even penetrate your skin, let alone a glass clock face or the metal base of a watch.

When ingested or inhaled however, there is no shielding from the alpha radiation and the potential for damage is large. There is the story of the 'radium girls' that worked in production of illuminated watch hands and sometimes licked the pencils used to appy the paint, putting them at great risk. Wearing the watch would little to no risk however, unless you somehow managed to smash in it into small piece you could inhale.



[Seoul_lasers]

Oh, let me be very clear on that: Exposure generally is not that dangerous if the source is kept outside of your body. This includes things like handling radioactively painted watch faces and such carefully.

Something like radium-226 lighted watch hands, signs and such are perfectly safe to have in a watch, but the material is quite dangerous when ingested or inhaled.

The decay of this form of radium is in alpha radiation that is very good for lighting up phosphors and such, but in itself cannot even penetrate your skin, let alone a glass clock face or the metal base of a watch.

When ingested or inhaled however, there is no shielding from the alpha radiation and the potential for damage is large. There is the story of the 'radium girls' that worked in production of illuminated watch hands and sometimes licked the pencils used to appy the paint, putting them at great risk. Wearing the watch would little to no risk however, unless you somehow managed to smash in it into small piece you could inhale.

Yup.. but in an industrial situation such as a parts storage facility we must play by the exposure limits set out by our Nuclear regulatory watchdog.
Irresponsible grouping of Radioactive items together like what was done there means that in addition to inhalation of dust (Radium paint for example)
the total contact exposure on the surface of the container must also be factored in. In a parts facility we can't legally store items with a past a DOT Class I Radioactive hazard (5.0uSv/hr on outside of the container at contact).

Tubes like the ones mentioned prior when crammed into a large storage box for 40 so years when all together means that the surface field well exceeds Dot class 1 categorization. Technically it would be into Dot Class II range.
Due to this fact this entire box had to be taken to a special Hazmat facility to be disassembled and sorted through. Some of those tubes were sent to museums across Canada, and some ended up in private collections no doubt.
Some like the 1B22/24 are so radioactive that they had to be classed as hazardous waste.


:beer:



[madmacmo]

. . .Some like the 1B22/24 are so radioactive that they had to be classed as hazardous waste . . .

Like this one, perhaps? Found this one on eBay virtually NOS in original WWII packaging. 18.66K counts and 5.10 mR/hr as measured with a Radiation Alert Inspector



[Seoul_lasers]

Yup... quite a few of those in that big'ol box of tubes. good picture of the tube.
:yh:



[Benm]

Regulations are overly strict indeed.

I'd say, so what, if a box had 5 uSv/hr on its surface. Assuming it's radiating from within and not rubbing off from the outside of the box, that box would be perfectly safe to handle.

You should probably not use that box as a pillow (over a year that piles up to about 30 mSv if you slept all day), way too much for a civilian but still acceptable for a radiological worker in the US.

Some safety precautions are just crazy. For example, i could use no more radio label in biochemical experiments because it would pose a hazard if i somehow managed to ingest the entire experimental setup. This in itself would be stupid enough, but these were genetically modified mammalian cell lines, essentially cancer cells.

I'm not sure how mad people presume the average scientist is, but licking clean 20 growing flasks of GMO cells would be rather idiotic regardless if they were radiolabeled or not.

And even if i did all that, the major problem would probably be gastrointestinal problems caused by the antibiotics in the growth medium. Oddly there is NO regulation on the amount of those or exposure to them, apart from the common sense thing of not ingesting your experiments on purpose. I suppose there is no regulation preventing me from having a taste for the heck of it as long as it's not radioactive and i don't bring viable GMO's outside the lab (stomach acid would kill these cells, so that'd be okay, right?).



[Seoul_lasers]

Regulations are overly strict indeed.

I'd say, so what, if a box had 5 uSv/hr on its surface. Assuming it's radiating from within and not rubbing off from the outside of the box, that box would be perfectly safe to handle.

You should probably not use that box as a pillow (over a year that piles up to about 30 mSv if you slept all day), way too much for a civilian but still acceptable for a radiological worker in the US.

Some safety precautions are just crazy. For example, i could use no more radio label in biochemical experiments because it would pose a hazard if i somehow managed to ingest the entire experimental setup. This in itself would be stupid enough, but these were genetically modified mammalian cell lines, essentially cancer cells.

I'm not sure how mad people presume the average scientist is, but licking clean 20 growing flasks of GMO cells would be rather idiotic regardless if they were radiolabeled or not.

And even if i did all that, the major problem would probably be gastrointestinal problems caused by the antibiotics in the growth medium. Oddly there is NO regulation on the amount of those or exposure to them, apart from the common sense thing of not ingesting your experiments on purpose. I suppose there is no regulation preventing me from having a taste for the heck of it as long as it's not radioactive and i don't bring viable GMO's outside the lab (stomach acid would kill these cells, so that'd be okay, right?).

When you are working around a massive amount of boxes containing
all matter of things, tubes, watches, radium paint ..etc all those add up if you are working right next to it.
Rules are rules.

Now, the previous picture with the (handheld) thickness gauge (for non destructive testing) is a whole different story. They exceedingly dangerous
to work with and start at 65mCi of Co60. being near these unshielded easily produces readings over 2mSv/hr.
Larger thickness gauges which are typically 340mCi Co60 need special transportation requirements as their sources are so incredibly hot.
