GH04V01A2GC

[RedCowboy]

Has anyone tested this laser diode ?
They are rated @ 1100mw but the other Sharp MM 5.6 package 405nm offerings rated @ 350mw will do dam near 2W overdriven, I have several that have held up well @ 1.75W, anyway I'm just curious if these new diodes are worth the extra money.

https://jp.sharp/products/device/doc/laser/GH04V01A2GC_e.pdf

https://www.aliexpress.us/item/3256805131033857.html?gatewayAdapt=gloMsite2usaPcglo2usa4itemAdapt



[Gryphon]

It took me way to long to realize the 350mW version has a 'W' in its name and this one has a 'V' with all else being the same. I too would be interested to know how well these handle being over driven, I doubt we will see KLC432FL01WW levels of awesomeness but even 3W of 405nm for $100 would cool.



[ZRaffleticket]

Just keep your eyes open for the next model up

https://global.sharp/products/device/lineup/data/pdf/datasheet/laser/GH04V03Z9G_e.pdf



[Gryphon]

Heres hoping it doesn't come with a $500 price tag!



[RedCowboy]

Ah yes, under development is says, I look forward to it being for sale.

This 425nm @ rated 1600mw could be a neat color ( also under development ) > https://global.sharp/products/device/catalog/e-catalog/laser/index.html#page=23



[WizardG]

Ah yes, under development is says, I look forward to it being for sale.

This 425nm @ rated 1600mw could be a neat color ( also under development ) > https://global.sharp/products/device/catalog/e-catalog/laser/index.html#page=23

Hmm...an indigo laser. i bet it would be fun asking people to tell you what color it is. Probably get a pretty wide range of answers. I see 445 as cobalt blue but many of my friends see it as violet.



[RedCowboy]

Something fun to do is compare a 445 to a 405 side by side and the 445 will look dark blue.
Now compare the 445 to a 465 or a 488 side by side and the 445 will look violet.

Amazing how our brains process vision.
Two people with the same laser and different color wall paint may see the color of the beam differently.



[Gryphon]

This 425nm @ rated 1600mw could be a neat color ( also under development ) > https://global.sharp/products/device/catalog/e-catalog/laser/index.html#page=23

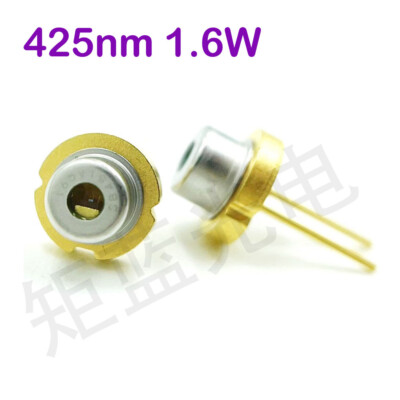

Sharp GH04I01A2G 5.6mm Blue 425nm 1.6W 1600mW Laser Diode | eBay

Find many great new & used options and get the best deals for Sharp GH04I01A2G 5.6mm Blue 425nm 1.6W 1600mW Laser Diode at the best online prices at eBay! Free shipping for many products!

www.ebay.com

It lacks the 'C' at the end of the part number but is still rated for 425nm @1.6W. The 424nm laser in my signature is that diode being driven at 600mW and to my eyes does exactly what you describe above when I compare it to its neighbors, perception based on context is wild



[ZRaffleticket]

Yeah these are available, I need to get to posting pics. I have a few at 425 and one at 420, and even those are noticeably different in color.



[Butch777]

I'm still wondering if anyone has tested this 1.1w 405nm diode.
It's listed on ebay as GH04V01A2GC and also as GH04V01A2G,
without the "C" on the end.



[Darktron]

Just keep your eyes open for the next model up

https://global.sharp/products/device/lineup/data/pdf/datasheet/laser/GH04V03Z9G_e.pdf

But this is 9mm can



[WizardG]

Needs FAC.



[RedCowboy]

So the divergence is not as good I take it ?
I wonder how bad the divergence is on this 3W unit ? Maybe as bad as a nubm44 ? At 520 clams I'm not going to be testing it any time soon.

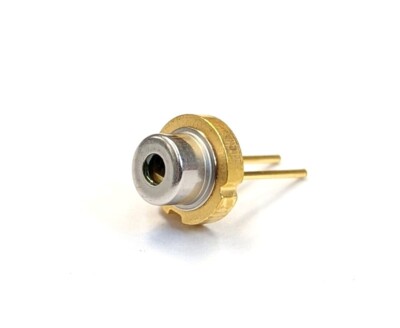

Panasonic 405nm 3W High Power blue-violet Laser Diode KLC432FL01WW φ9mm | eBay

This product is a blue-violet laser diode designed for high power use. Protect your yourself from the laser when you operate on it. We are always ready and will try our best to help you! In order to maximize the device performance.

www.ebay.com



[WizardG]



[RedCowboy]

WOW.... On paper...or on screen that looks good, similar to GH04W10A2GC which says ( Typical- 14 / 41 ) or am I missing something ? Sometimes they say @ half angle, this one says [ NOTE 6 ] which reads " Reference Standards JIS-C-5943 " is that like a camshaft that advertises measured lift @ 0.050 vs. gross ?

Sharp GH04W10A2GC - UV Laser Diode - 350mW-1100mW - 405nm - TO-18/5.6mm Ultra | eBay

You must know what you are doing before hooking these up. A proper CONSTANT CURRENT laser diode driver is required to drive the diode. The current should not exceed 1A CW. The diodes must be installed in to a laser diode module and heatsink before energizing to dissipate heat.

www.ebay.com
