Finally!!! LASOS argon laser!!!!

[9A3DAA]

Have you tried rotating your expansion optics to see if the lines rotate with them?

Yes. I rotated mirror, and optics. Lines stay vertical



[diachi]

Yes. I rotated mirror, and optics. Lines stay vertical

Do they rotate if you rotate the head?



[9A3DAA]

Do they rotate if you rotate the head?

yes they rotate when I rotate head



[diachi]

yes they rotate when I rotate head

Must be the optics on the head then!

Are there any optics in the head other than the HR/OC mirrors on the tube?

Looks like interference patterns caused by gunk (that is in fact the technical term for contaminants ) on the optics. Gunk on the outside of the OC. Perhaps the cleaning method you used left streaks on the OC mirror which have resulted in this interference pattern? If the pattern wasn't there before cleaning then it's most likely that.



[9A3DAA]

There is no other optic in laser head except HR and OC, I cleaned OC and same.
I would love that you guys with argon laser make same experiment and see what you get..
Maybe single line argon don't have this. I dont know...
I am litle disapointed:yabbem::yabbem:



[9A3DAA]

yes they rotate when I rotate head

I am so stupid... they DON'T ROTATE
It was misunderstood:thinking:

Lines are always vertical no matter I rotate LASER head, or optic or mirror...

Sorry



[diachi]

I am so stupid... they DON'T ROTATE
It was misunderstood:thinking:

Lines are always vertical no matter I rotate LASER head, or optic or mirror...

Sorry

So what optics are you not rotating? That would be the source of your interference pattern.



[9A3DAA]

So what optics are you not rotating? That would be the source of your interference pattern.

when I don't rotate mirror or expanding optic, then I rotate head.
and when I rotate mirror or expanding optic, I don't touch head.
I tried all possible combination. I rotate head, and my brother rotate optic so that
rotate all at once in all direction, always lines are vertical position.
Ther is no interference at all, they are perfectly parallel.

Mystery :scared:



[diachi]

when I don't rotate mirror or expanding optic, then I rotate head.
and when I rotate mirror or expanding optic, I don't touch head.
I tried all possible combination. I rotate head, and my brother rotate optic so that
rotate all at once in all direction, always lines are vertical position.
Ther is no interference at all, they are perfectly parallel.

Mystery :scared:

What about the prism?



[9A3DAA]

What about the prism?

It's same, with and without prism



[9A3DAA]

I found problem. It is mirror! I remove mirror and lines disappeared
But still mystery why perfectly parallel lines no matter when I rotate.

I hope you don't mind diachi. It was misunderstand, I am just tired it's 11:00 p.m.
I am going to sleep. See ya tomorrow
And thanks for help!



[paul1598419]

Well, that was interesting. Wasn't here for any of it. I thought it unusual that the interference lines were so evenly spaced throughout the entire expanded beam.



[diachi]

Well, that was interesting. Wasn't here for any of it. I thought it unusual that the interference lines were so evenly spaced throughout the entire expanded beam.

Was thinking the same.

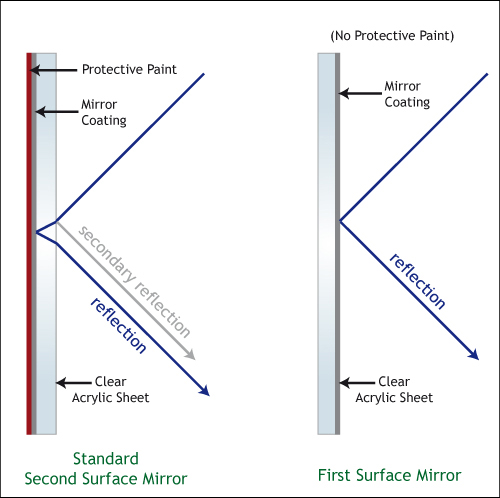

9A3DAA, is it a first surface mirror or a plain old second surface mirror?

Note: You can have internal reflections with the rear surface mirror, though the diagram doesn't show that.



[9A3DAA]

Was thinking the same.

9A3DAA, is it a first surface mirror or a plain old rear surface mirror?

It is rear surface mirror

Everything perfect clear now. Thanks for help. :thanks:



[diachi]

Everything perfect clear now. Thanks for help. :thanks:

Yup, that's likely what was causing it and why the lines weren't rotating when you rotated the mirror.

Also, please avoid double posting. You can edit your last post to update it. If you want to respond to multiple people you can use the multi-quote button. :beer:



[vk2fro]

Wow, you got VK2FRO to post. 73, DE KL7FB.

hehe yes I am still active on these forums, and often here in the gas lasers section, or the laser show section, or checking out the diode sections to see who the new kid (diode) is on the block.

On the subject of not posting much, I've other hobbies I enjoy as well as lasers, and presently the laser budget is a bit thin after having bought a flying camera (drone). I don't need another pointer (happy with my 520nm unit), and would really like to get one of my projectors up and running. I've got my eye on a set of lasers for one of them from a particular seller on ebay that states the spot of the beam is 2mm, which will fit onto my DT40W's without spilling off the sides, and I'll have paypal protection should the seller be telling fibs about the spot size (downside of purchasing the DT40W's with their small mirror size.).
