Boost converter for powering on a reverse camera

[pados1002_Alex_13]

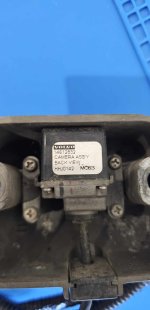

Hey guys, I m Trying to find a boost converter to power a reverse camera for a vehicle. The OEM was burnt. The Vout of the OEM system is around 7.8v and I bought a few sensors to test from Alie but all of them are 12v. Any reliable solution?



[lasersbee]

What current does the Camera Require ?
BTW If you require less than 12VDC then you will need a Buck Converter.

Jerry



[pados1002_Alex_13]

I m not sure what 's the current needed but I hope around 1A max. The only thing I know is that I m getting around 7.8V from the vehicle. I don't know if the camera can do the job in a range of voltages or fixed at 12v. So any suggestions appreciated!



[lasersbee]

I m not sure what 's the current needed but I hope around 1A max. The only thing I know is that I m getting around 7.8V from the vehicle. I don't know if the camera can do the job in a range of voltages or fixed at 12v. So any suggestions appreciated!

If your Vehicle is only giving you 7.8VDC you have a problem with your Vehicle's
Battery. It should be at least 12.8VDC fully Charged.

Where are you Testing/Getting the 7.8VDC ??
What is the Vehicle's Voltage at the Battery Terminals ??

Do you have a link to the Camera ?

Jerry



[pados1002_Alex_13]

7.8V is the voltage coming from the OEM display of the vehicle. Not the Vehicle 's voltage. The vehicle itself is a 24v excavator!



[lasersbee]

Got it....
-The Original Camera worked on 7.8VDC
-The Original Camera is DEAD
-You want to use an Off the Shelf 12VDC Camera to replace it.

Try a Step Up Boost Converter like this:
https://vi.aliexpress.com/item/1005003309480156.html?spm=a2g0o.productlist.main.16.5c0b6ae2o2rqDj&aem_p4p_detail=2025022306492610934283742830000004206706&algo_pvid=938a47a3-03f2-4854-8388-b812cdb941b8&algo_exp_id=938a47a3-03f2-4854-8388-b812cdb941b8-15&pdp_ext_f={"order":"282","eval":"1"}&pdp_npi=4@dis!USD!1.62!1.62!!!1.62!1.62!@2103245417403221667383233e8289!12000025132327097!sea!CA!123309767!X&curPageLogUid=2qeqvE1vjQ3W&utparam-url=scene:search|query_from:&search_p4p_id=2025022306492610934283742830000004206706_4


Choose the XL6009 Model with the 2 Inductors on it
completely to the Right of all choices.

Since it is a switching PS you may need to add more
despiking caps to the output if the Camera image is
not clear.


Jerry



[pados1002_Alex_13]

Thanks a lot for the answer! I ordered a couple and I hope for the best!
