(SOLD): 1.5W+ 637nm Red Pocket Laser in Black Convoy M21B

[Amak87]

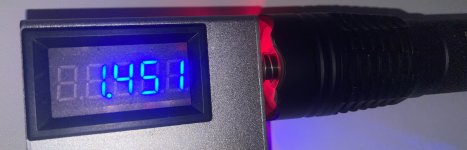

Up for sale is a freshly assembled 1.5W+(1.450W Optical Output w/ G8 lens) Ushio 637nm RED handheld laser in a slightly used black **Convoy M21B (1-21700) host.

**If you don’t like the used M21B host, I can build a new one with a new black M21A, black or MOA(White) M21B host for $150 shipped.

Price: $100/OBO shipped, 48 states.

SPECIFICATIONS:

-LASER DIODE: A brand new Ushio HL63283HD 9mm/T05, 637nm Red laser diode.
-DRIVER: A brand new 17mm Convoy 2.5V/2.5A buck driver.

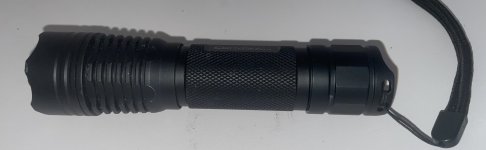

-HOST: A slightly used black Convoy M21B that I had used in its original form as a flashlight. I removed the original SFT40 LED and installed it into one of my spare M21A hosts. There’s a few small scuffs as you can see in the pictures. Nothing major.
-HEATSINK: Jlasers Aluminum for M21B
-OPTICS: slightly used G8, in excellent/like new condition. Comes with a lens cap. Or I can swap it for a Red spectrum 3E lens.
-DUTY CYCLE: 25%: 30 SEC. ON/ 2 MIN. OFF

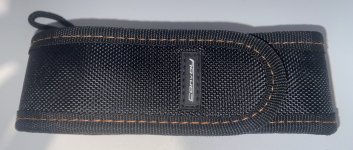

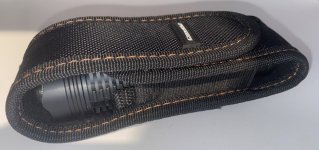

-includes a new Convoy case as shown in pictures.

-NO BATTERIES INCLUDED FOR SHIPPING REASONS.

Let me know if you have any questions!



[Amak87]

Bump



[CoolLaserUser]

That laser pointer looks awesome, nice host!

How does the beam look like?



[Amak87]

That laser pointer looks awesome, nice host!

How does the beam look like?

I’ll post up some night shots of the beam next to a 8W Osram 450nm/Blue for comparison.

As for the diode specs, here are the Ushio Spec sheets. With a G2 lense, the optical output gets near 1.9W, but the beam spot isn’t ideal with the G2 lense, at about 20’, the beam spot/pattern is about 12” wide. The G8 cuts it down to 6-8”, and I can add a Red spectrum 3-Element lens that will allow for about 40% reduction in the beam spot size at the same distance.



[Amak87]

BUMP! Price drop removed. $100 shipped. Includes G8 and 3E lens with lens caps and Convoy belt style case.
