Driver to Power 23 diodes

Joined
Oct 6, 2015
Messages
1,355
Points
113
So i was wondering what driver can power all 23X M140 Japan Version Diodes at the same time, or will 3X M8 drivers work to power 7 diodes at the same time 🤔




Joined
Jul 10, 2015
Messages
9,237
Points
113
You won't like the factory lenses but you can power it up for fun.

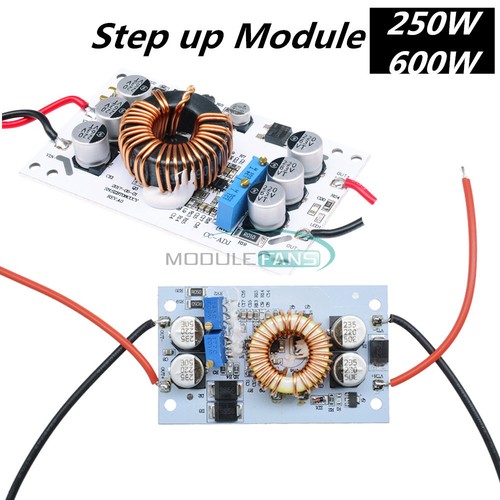

You can use this driver and power the three rows of 8 diodes in series/parallel.

The factory ribbon has K for cathode and A for anode, I cut between each line and solder on wires, you can then power any string of 8 or all 3 strings together.

So each string of 8 in 3 parallel strings around 35V @ 1.5A for each string so if all 3 strings in parallel you can go to 4.5A



Last edited:
Joined
Oct 6, 2015
Messages
1,355
Points
113
Thank you this is amazing i have the same diode block 👀
The CC for Amp, And the CV for Volt.
I'm using mirrors and it will be 1- beam and 1X lens i hope, i will post pic's tomorrow or when i get the driver :alien:

Joined
Jul 10, 2015
Messages
9,237
Points
113
I have bought 4 of these drivers and one came already turned all they way up, so test the driver on a light bulb, don't power the driver without a load connected.

Use an incandescent light bulb as a load and set the driver for say 20V then when you connect your laser diode bank you can simply slowly adjust it up with a volt meter in parallel and I use an inductive meter to check/set the current limit.

Joined
Oct 6, 2015
Messages
1,355
Points
113
I just received the drivers and i tested it using 3X16340 Battery’s and wow the driver drains em out fast and the get hot hehe 😏

Joined
Oct 6, 2015
Messages
1,355
Points
113
If you use the default mirrors you can get a perfect point not far from it i post some pics tomorrow its amazing
