Soldering Iron Recommendations

Joined
Sep 11, 2011
Messages
249
Points
18
Hello All,

I have some soldering experience but not with SMD components. I heard it is possible to solder them with hand but just time consuming and requires a good soldering iron. Which soldering iron would you recommend?

Also, is it needed to solder the central pad to an IC like this? I want to make a couple benboost minis and the PCB has 8 holes under the IC. Do I feed solder through those holes?

Thanks!






Joined
Feb 5, 2008
Messages
6,252
Points
83

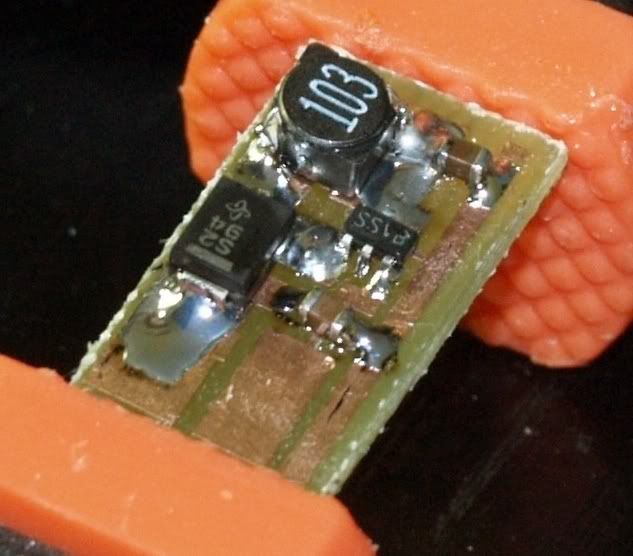

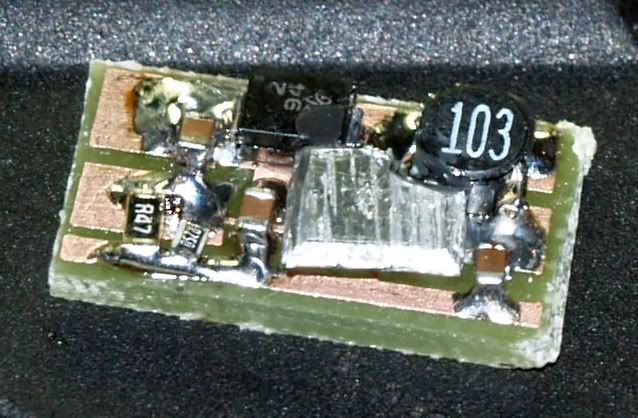

It'd be extremely tough to solder that IC, but I have used LM3410 in my own boost driver designs and they come in standard pin package, like this:

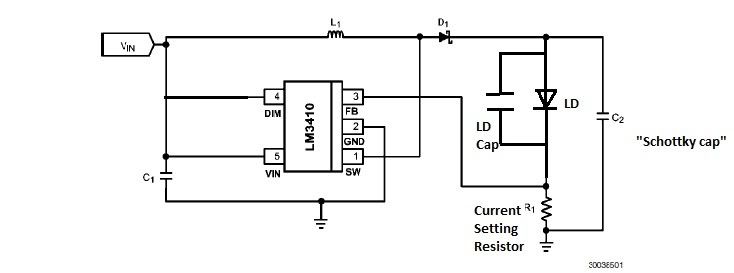

If you need a schematic:



As for the hardware itself, I will always recommend the model I got,
"Aoyue 936". It's cheap, it's awesome. Just get the one with standard analog temperature controller, instead of digital one.

Joined
Sep 11, 2011
Messages
249
Points
18
Hey thanks for the suggestion! Looks good for $45. Also if it's that hard to solder that IC i might just get a toaster oven and make that into a reflow oven with a microcontroller. I'm using the Benboost mini design and it needs that package.

It'd be extremely tough to solder that IC, but I have used LM3410 in my own boost driver designs and they come in standard pin package, like this:






If you need a schematic:



As for the hardware itself, I will always recommend the model I got,
"Aoyue 936". It's cheap, it's awesome. Just get the one with standard analog temperature controller, instead of digital one.
