made some lumia boxes

swamidog

Active member
Joined
Aug 21, 2009
Messages
388
Points
43

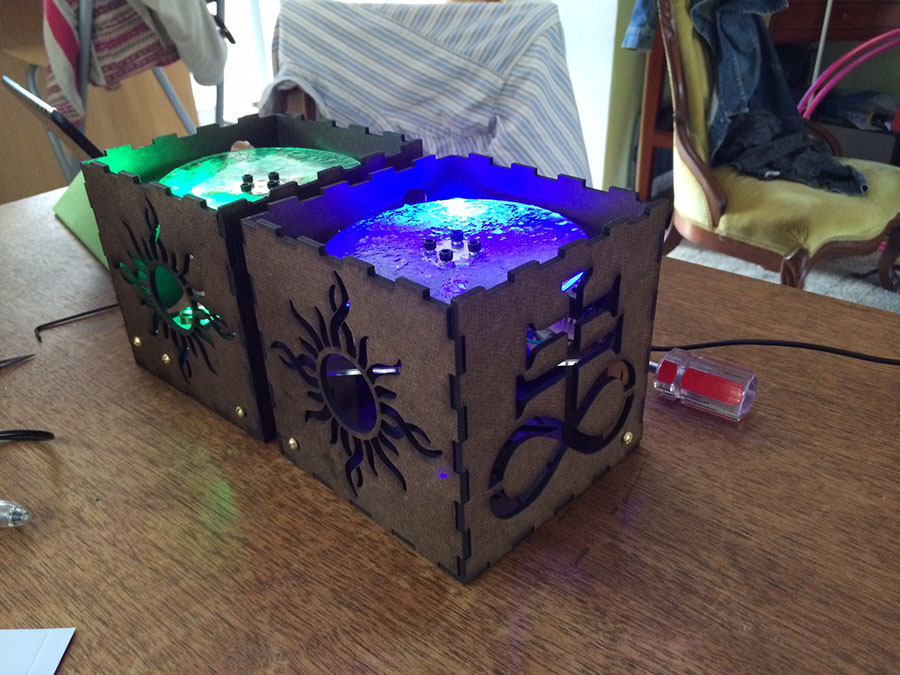

over the last couple of weeks i've been building a 60W laser cutter. it's not complete, but it's up and running and i thought a suitable first project would be using the laser cutter to make a laser projector.

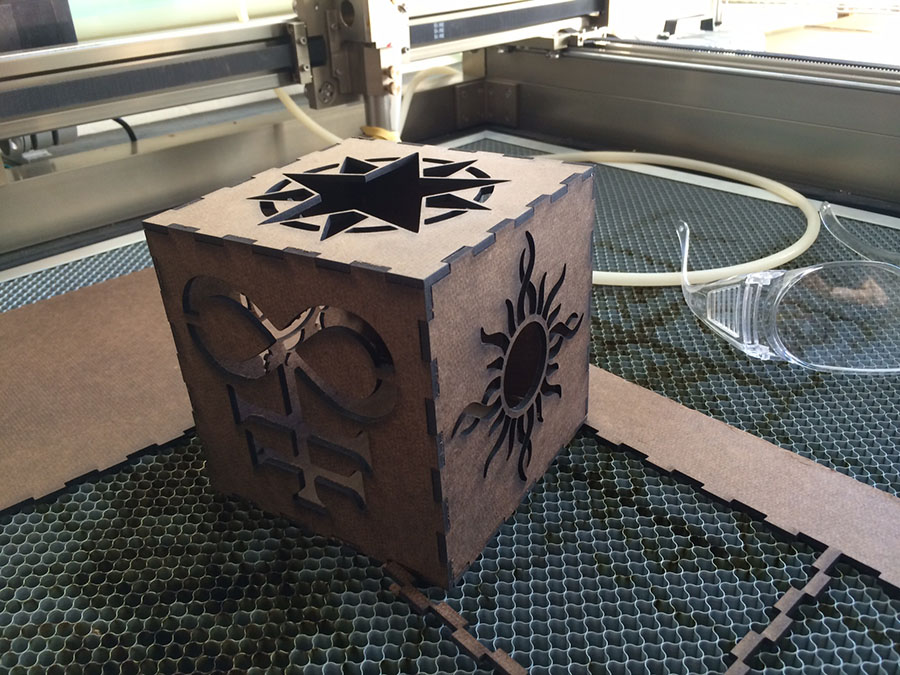

i designed a 5x5" box in inkscape and cut it out of 3.2mm masonite.

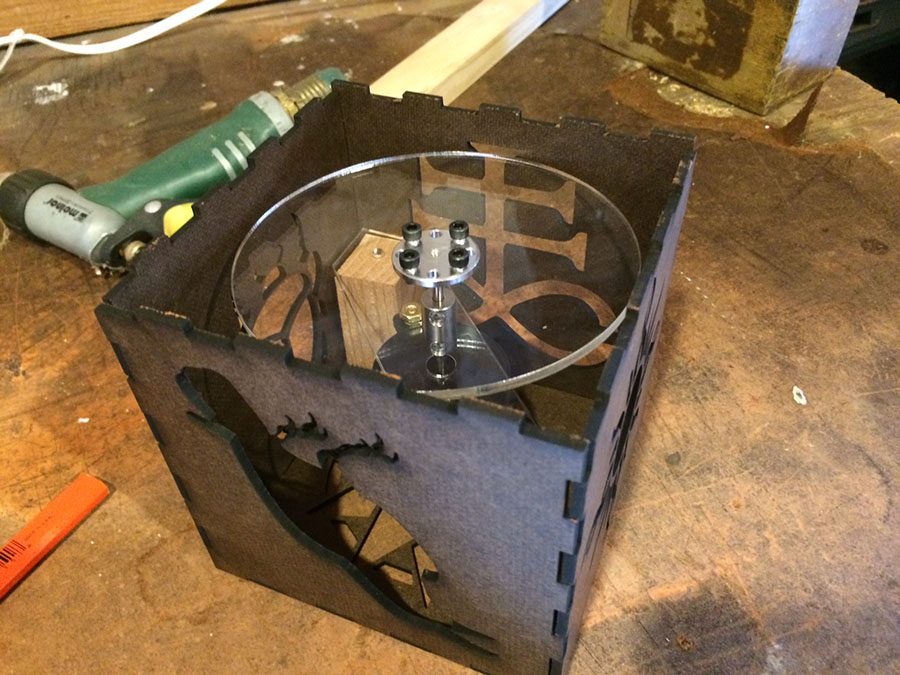

i laser cut acrylic for the mounts and the lumia wheel.



i used clear silicon sealant to add texture to the lumia wheels. the lasers are single mode 450 and 520 diodes and drivers from DTR's shop.



in the dark, lumia reflections off the wheel project out of the cut outs on the side panels.





the projected lumia is very beautiful.







KapHn8d

Active member
Joined
May 9, 2013
Messages
839
Points
43
Sweet project! I love this stuff... I've been hooked ever since hakzaw1 got me a low RPM motor with mounted lumia glass.

Thanks for sharing, man... I'll rep you if I've spread enough :)

cheers!


hakzaw1

Well-known member
Joined
Apr 2, 2009
Messages
10,494
Points
113
wow

sweet work there Chris-- will link this one to

http://laserpointerforums.com/f47/lumia-one-thread-all-85396.html

_ btw--

the LUMIA thread- IMHO LUMIA deserves its OWN section here-
so while we wait on that perhaps we can all work together by posting in my thread- (above)
I am not trying to be a control freak ( at least i dont think i am--lol) J/K

anyhoo if you do we will be honored-- til then I will link away-- len

the cut -outs are very cool-
what is your motor and its speed- tell us more about the lasers you choose too..

+5

Last edited:

swamidog

Active member
Joined
Aug 21, 2009
Messages
388
Points
43
wow

sweet work there Chris-- will link this one to

http://laserpointerforums.com/f47/lumia-one-thread-all-85396.html

_ btw--

the LUMIA thread- IMHO LUMIA deserves its OWN section here-
so while we wait on that perhaps we can all work together by posting in my thread- (above)
I am not trying to be a control freak ( at least i dont think i am--lol) J/K

anyhoo if you do we will be honored-- til then I will link away-- len

the cut -outs are very cool-


+5

oh sure. i'll repost into your thread with some additional pictures.


Flaminpyro

Well-known member
Joined
May 4, 2009
Messages
5,449
Points
113
Very nice build you have done Chris an over the top job I would say they are beautiful +5 my man :gj:

Is there any way I could pay to make me 3 boxes so I could make a RGB set,
You can ship them flat and I'll make em boxes, how much for a set of three please.
I would like the acrylic wheels also if that is a go.

See you at the next LEM ;)

Last edited:

jeffreythe00

Well-known member
Joined
Jan 13, 2010
Messages
2,528
Points
63
WOW! Those are beautiful! +REP! I can see these as a good seller here!


swamidog

Active member
Joined
Aug 21, 2009
Messages
388
Points
43
i do plan to offer kits with everything except the laser.

i'm doing a little redesign work based on the lessons learned from making those two.


swamidog

Active member
Joined
Aug 21, 2009
Messages
388
Points
43
the granite glass makes a very nice effect.. i need to bug displacer and see if he's still cutting and selling wheels.

i'm in the mode of sourcing parts to try to keep cost down.

the resolution of my laser cutter is quite high so i can do much more detailed artwork on the panels.



Very nice lumia boxes, love the effect on a ceiling or used as a wall wash.
I use a granite glass similar to this (see link) in my lumia projector.
Not as fancy as yours, the laser cut panels for the boxes you made really make them a work of art.

Spectrum Stained Glass Clear Granite Free Shipping | eBay


COMMANDR

Member
Joined
May 9, 2008
Messages
321
Points
18
the granite glass makes a very nice effect.. i need to bug displacer and see if he's still cutting and selling wheels.

i'm in the mode of sourcing parts to try to keep cost down.

the resolution of my laser cutter is quite high so i can do much more detailed artwork on the panels.

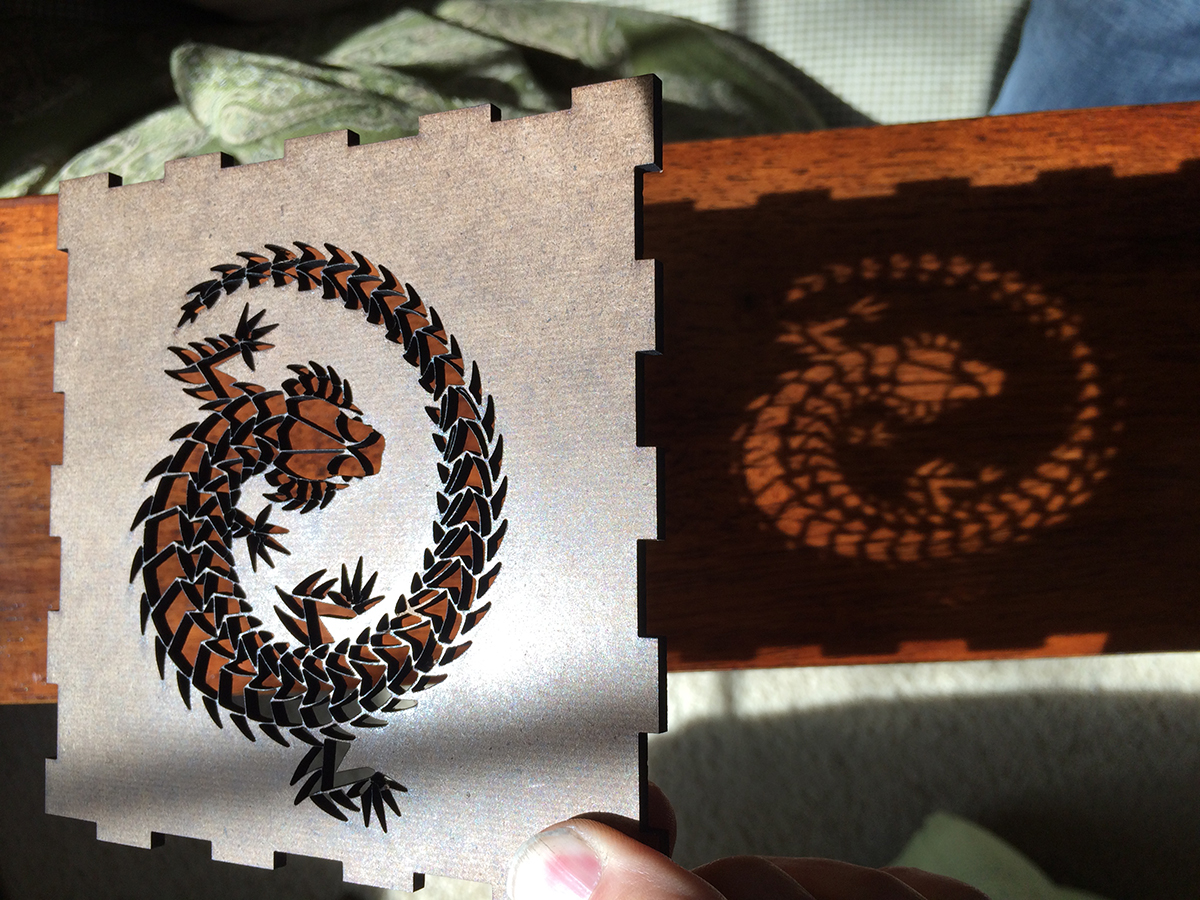

Damn Dude, those panels are drop dead cool. I would be up for a kit or two when you are ready to offer them for sale. Love the dragon!!!! Moon and stars motif is very cool too.
