Gas Lasers and Stuff From The Cellar.

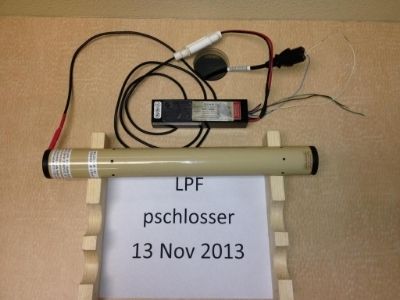

Melles Griot 05-LHR-911 HeNe Laser + PSU $70 (was $80) or Head-only: $20 (was $30)
* Wavelength: 632.8 nm Red; Rated: 2.0 mW; Metered: 1.25 mW
Laser Drive PSU
* Input: 110VAC; Output: 1450 VDC @ 4-6.0 mA
Purchased from LPM member: Cheech226
Includes mounting rings. Short HV lead. (HFST)
Melles Griot 05-LHR-151 HeNe Laser + PSU $80 (was $145) or Head-only: $30 (was $55)
* Wavelength: 632.8 nm Red; Rated 4.0 mW; Metered 6.4 mW
Laser Drive 324T-2400 PSU
* Input: 115/230 VAC; Output: 2400 VDC @ 6.5 mA
Bi-wire to coax HV lead conversion. (DHYK)
JDSU 1675MP HeNe Laser $50 (was $100)
* Wavelength: 543.5 nm Green; Rated 1.0 mW; Metered 1.6 mW
Includes (epoxied) magnetic rings.
Optional PSU 110/220VAC $70 (was $85)
JDSU 314S-2700
* Input: 110/220VAC; Output: 2700VDC @ 5.0mA (IFTD)
JDSU 1685MP HeNe Laser $70 (was $100)
* Wavelength: 543.5 nm Green; Rated 2.0 mW; Metered 1.6 mW
Includes (epoxied) magnetic rings.
Optional PSU 110/220VAC $70 (was $85)
JDSU 314S-2700
* Input: 110/220VAC; Output: 2700VDC @ 5.0mA
Very hot laser for the wavelength.
Two-inch diameter tube!
Includes (epoxied) magnetic rings.
This is a special tube, a product direct from JDS R&D Labs.
To my knowledge, it was never sold commercially. (CFSP)
JDSU 1145AP HeNe Laser 50 (was $100)
* Wavelength: 632.8 nm Red; Rated 21.0 mW; Metered 11.4 mW
Optional PSU 110/220VAC $175
JDSU 380T-3800 (or equivalent)
* Input: 110/220VAC; Output: 3800-4100VDC @ 6.5mA
This thing is huge, over two-feet long.
If you want a PSU, I'll need a couple weeks to order one. (BAQT)

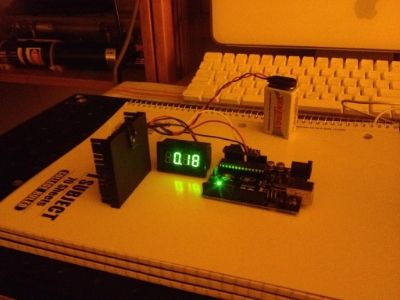

Hobbyist LPM with Data Logging $90 (was $100) or LPM-only $50 (was $65)
Purchased from LPF member: AnthoT 02/2013 for $65.
Original Sales Thread: http://laserpointerforums.com/f39/lpm-sale-79799.html
This was shipped directly to LPF member: ARG/ARGLaser where it was calibrated and data logging added for an additional $65.
This was my first LPM and my only complaint is it doesn't measure below 10mW.
I've measured beams from 30mW to 2000mW with great results.
Contrary to AnthoT's claims, I'd say the accuracy is closer to 10% or less.
Comes with storage case.
Requires 9V battery not included.
Data logging requires Type-B USB cable not included. (NPFD)

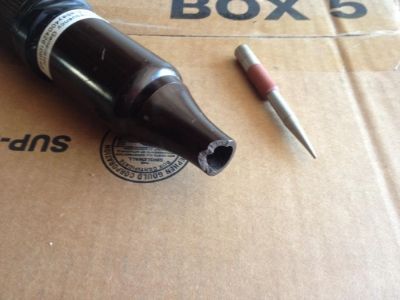

Oudin Coil BD-10 $70 (was $85)
It's been dropped (without the tip installed) and the Bakelite broke some near the tip.
As you can see by the video, it still works well. This is a good coil.
Fluorescent tubes not included. (HABN)
Disclaimer
Pricing shown excludes shipping fees.
Local pickup available.
UPS International Economy shipping a maybe, if buyer assumes all responsibility with customs and damage in transit. I can't have an international shipment coming back on me.
Payment Terms
Paypal, Cash and/or mail-order brides in trade.
Soon to come...
Melles Griot 05-LHR-911 HeNe Laser + PSU $70 (was $80) or Head-only: $20 (was $30)
* Wavelength: 632.8 nm Red; Rated: 2.0 mW; Metered: 1.25 mW
Laser Drive PSU
* Input: 110VAC; Output: 1450 VDC @ 4-6.0 mA
Purchased from LPM member: Cheech226
Includes mounting rings. Short HV lead. (HFST)
Melles Griot 05-LHR-151 HeNe Laser + PSU $80 (was $145) or Head-only: $30 (was $55)
* Wavelength: 632.8 nm Red; Rated 4.0 mW; Metered 6.4 mW
Laser Drive 324T-2400 PSU
* Input: 115/230 VAC; Output: 2400 VDC @ 6.5 mA
Bi-wire to coax HV lead conversion. (DHYK)
JDSU 1675MP HeNe Laser $50 (was $100)
* Wavelength: 543.5 nm Green; Rated 1.0 mW; Metered 1.6 mW
Includes (epoxied) magnetic rings.
Optional PSU 110/220VAC $70 (was $85)
JDSU 314S-2700
* Input: 110/220VAC; Output: 2700VDC @ 5.0mA (IFTD)
JDSU 1685MP HeNe Laser $70 (was $100)
* Wavelength: 543.5 nm Green; Rated 2.0 mW; Metered 1.6 mW
Includes (epoxied) magnetic rings.
Optional PSU 110/220VAC $70 (was $85)
JDSU 314S-2700
* Input: 110/220VAC; Output: 2700VDC @ 5.0mA
Very hot laser for the wavelength.
Two-inch diameter tube!
Includes (epoxied) magnetic rings.
This is a special tube, a product direct from JDS R&D Labs.
To my knowledge, it was never sold commercially. (CFSP)
JDSU 1145AP HeNe Laser 50 (was $100)
* Wavelength: 632.8 nm Red; Rated 21.0 mW; Metered 11.4 mW
Optional PSU 110/220VAC $175
JDSU 380T-3800 (or equivalent)
* Input: 110/220VAC; Output: 3800-4100VDC @ 6.5mA
This thing is huge, over two-feet long.
If you want a PSU, I'll need a couple weeks to order one. (BAQT)
Hobbyist LPM with Data Logging $90 (was $100) or LPM-only $50 (was $65)
Purchased from LPF member: AnthoT 02/2013 for $65.
Original Sales Thread: http://laserpointerforums.com/f39/lpm-sale-79799.html
This was shipped directly to LPF member: ARG/ARGLaser where it was calibrated and data logging added for an additional $65.
This was my first LPM and my only complaint is it doesn't measure below 10mW.
I've measured beams from 30mW to 2000mW with great results.
Contrary to AnthoT's claims, I'd say the accuracy is closer to 10% or less.
Comes with storage case.
Requires 9V battery not included.
Data logging requires Type-B USB cable not included. (NPFD)
Oudin Coil BD-10 $70 (was $85)
It's been dropped (without the tip installed) and the Bakelite broke some near the tip.
As you can see by the video, it still works well. This is a good coil.
Fluorescent tubes not included. (HABN)
Disclaimer
Pricing shown excludes shipping fees.
Local pickup available.
UPS International Economy shipping a maybe, if buyer assumes all responsibility with customs and damage in transit. I can't have an international shipment coming back on me.
Payment Terms
Paypal, Cash and/or mail-order brides in trade.
Soon to come...
