Frequency doubling

PyroJackal

New member
Joined
Nov 12, 2021
Messages
2
Points
1
Hello, I'm new to this forum, but today I was thinking if we could put a KTP crystal (like the ones in green DPSS lasers) on a say 808 nm laser diode to double its frequency and make the output purple, or we could put it on a 720 nm LD to make 360 nm UV light. Is that possible?




Sowee7

Active member
Joined
Feb 1, 2021
Messages
259
Points
28
actually it is possible to double 808nm and 720nm, ive gotten 404nm from 808nm when i was messing around with very high power pump diodes and some LBO, but you would either need a very high power pump, or a slightly lower powered pump and a few mirrors/other optics


CurtisOliver

Well-known member
LPF Site Supporter
Joined
Jun 12, 2015
Messages
7,276
Points
113
You won’t be able to use KTP for outputting short wavelengths. If we could, 473nm would be more efficient and cheaper to obtain. LBO, BBO and BiBO are typically used for producing <500nm. BiBO has the best efficiency but it is expensive and hard to get hold of. LBO is by far the most common crystal to use other than KTP. Crystals require phase matching, so you need to know the angle of which to orient the crystal to produce doubled output. Some crystals are cut with the phase matching angle already considered, so they are easy to use. Bare in mind that with directly doubled diodes the output beam will be dependent on the input beam specs. So poor beam quality in will have poor beam quality out.


PyroJackal

New member
Joined
Nov 12, 2021
Messages
2
Points
1
You won’t be able to use KTP for outputting short wavelengths. If we could, 473nm would be more efficient and cheaper to obtain. LBO, BBO and BiBO are typically used for producing <500nm. BiBO has the best efficiency but it is expensive and hard to get hold of. LBO is by far the most common crystal to use other than KTP. Crystals require phase matching, so you need to know the angle of which to orient the crystal to produce doubled output. Some crystals are cut with the phase matching angle already considered, so they are easy to use. Bare in mind that with directly doubled diodes the output beam will be dependent on the input beam specs. So poor beam quality in will have poor beam quality out.
So I could use it to double the frequency from a 1160 nm LD to make 580 nm yellow light?


CurtisOliver

Well-known member
LPF Site Supporter
Joined
Jun 12, 2015
Messages
7,276
Points
113
Theoretically you could. It has been done.
It wasn’t using KTP in that case however. It was a Yb-fiber doubled by MgO: PPLN.


kecked

Well-known member
Joined
Jun 18, 2012
Messages
672
Points
63
Good luck. Been chasing doubled yellow for a very long time. As he said fiber works but try getting someone to sell it to you under 50k. It’s used for eye surgery.


Sowee7

Active member
Joined
Feb 1, 2021
Messages
259
Points
28
Good luck. Been chasing doubled yellow for a very long time. As he said fiber works but try getting someone to sell it to you under 50k. It’s used for eye surgery.

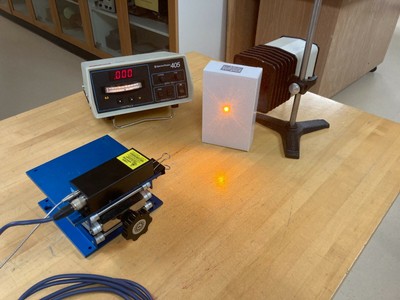

uhh i think i found something


kecked

Well-known member
Joined
Jun 18, 2012
Messages
672
Points
63
they have a lot of nice stuff but too expensive for me. I also want more in the 575nm range.
