Hi folks!

This is my humble contribution for this community.. I'm not good to write stories so here it is:

Arctic's Open Source RGB laser host for Opt Lasers Micro RGB module


NOTE!!

I can not guarantee any other material than PETG and SL 12 Nylon for proper fittings to 3D printed parts.
You can print with ABS and PLA at your own risk!!



























Video Link >>

---------------------------------

PART LIST:

- OptLasers Micro RGB module >>
- Micro RGB Controller from Bigclive.com >>
- Matek Micro 5V & 12V Power Distribution Board >>
- 3D Printed Host >>
- 2pcs 12mm Anti-Vandal LED switch (for RGB controller) >>
- 1pcs Sci Parts - Ø 20,2mm R13 Rocker Switch >>
- 2pcs Fischer Elektronik ICK 40X40 HeatSink (for OptLasers driver board) >>
- 4pcs 20mm battery contact PCB w/ springs
- M3 & M4 bolts & Nuts
- Some resistors, 26AWG silicon wire etc


Recommend to use Flux pen and good soldering station when soldering Matek PDB!

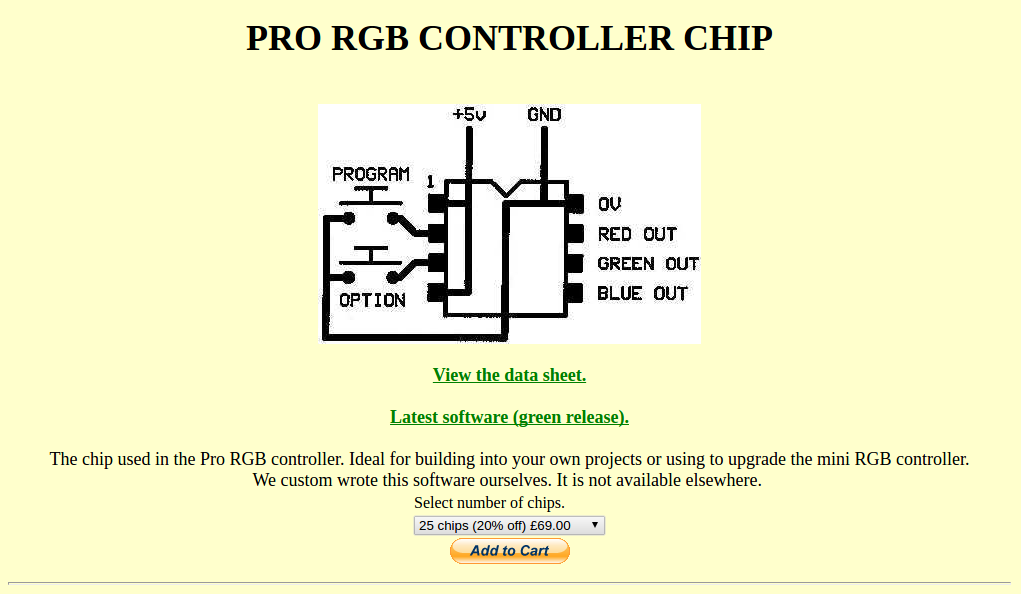

RGB CONTROLLER:


Video link >

Programs:

1. Morph and hold with vibrant colours. Hold adjustable in 16x3 second increments.
2. Morph and hold with over 16 million colours. Hold adjustable in 16 steps.
3. Sweep continually between vibrant colours. Speed adjustable in 16 steps.
4. Rainbow. Can be stopped and started on any colour using option button.
5. Rainbow continuous. Speed adjustable in 64 steps.
6. Colour burst. Steps between random colours at 32 speeds.
7. Colour strobe. 32 speed settings.
8. X-fader. Classic two channel cross fader with 32 speeds.
9. Juddermeister. Shuddering random colours with 16 speeds.
10. Hazard. Two channel hazard warning strobes in 16 styles.
11. Psychodelatron with 16 speeds (violent).
12. Colour touch. Explore infinite colours with a single button.

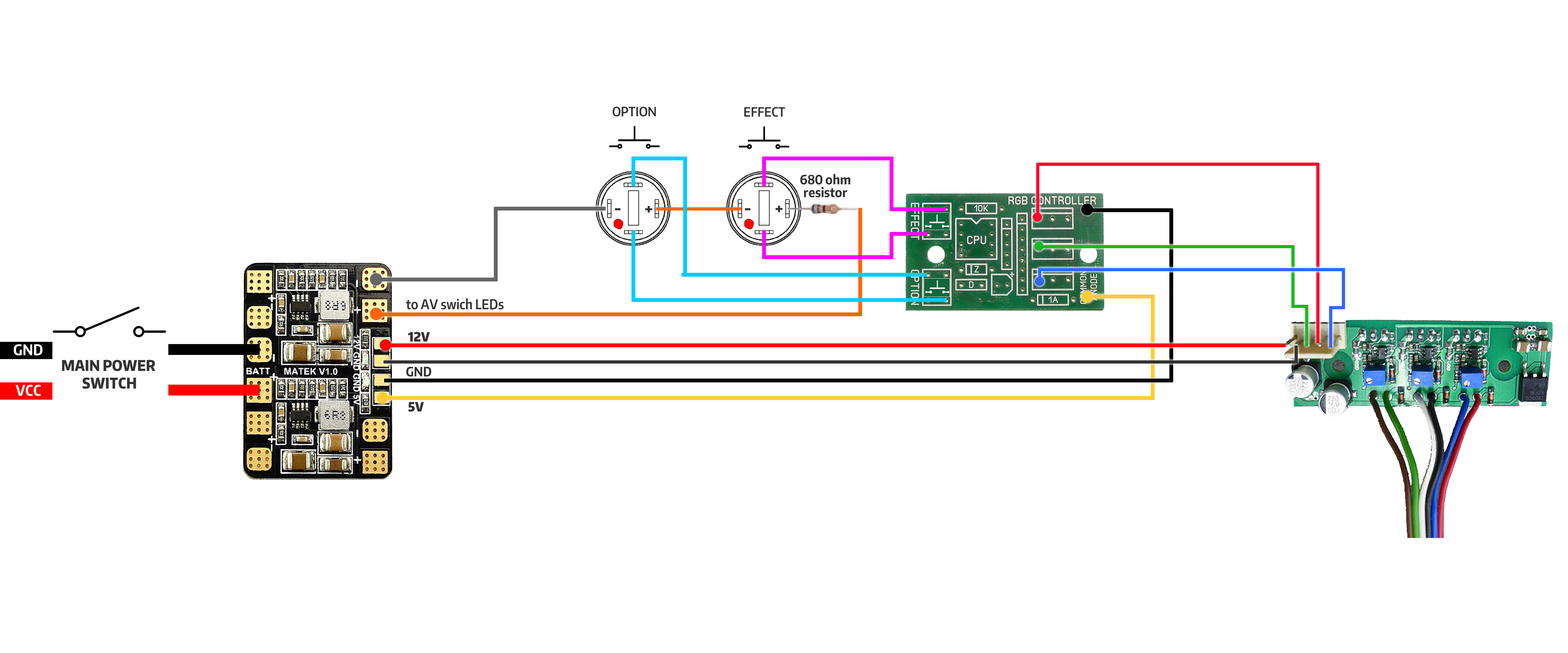

WIRING DIAGRAM:



Wiring Diagram HI-RES >>




---------------------------------------







--------------------------------------

HOST:







--------------------------------

























--------------------------------------

Host Material: Black PETG
Printable Parts: 7 PCS
Plastic volume: 461237.16 mm^3 (461.24 cc)
Filament length: 72301.1 mm (72.30 m)
Plastic weight: 576.55 g (1.27 lb)

3D parts Print Price (PETG): 300€


Explore 3D View >




3D Files (Rev 11) D/L link:
DOWNLOAD >>

This host is released with Creative Commons CC0 license. DO whatever you want whit it, Host design is 100% FREE!

:beer:


Cheers!

Last edited:

ElectricPlasma

Super Moderator
Staff member
Joined
Dec 11, 2015
Messages
1,615
Likes
943
Points
113
300€ for it to be printed? That doesn't sound right... especially for only 70m of filament. You could buy a 3D printer for 300€.

Either way, great effort put into the design. I'll have to look into it. :beer:


ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,179
Likes
1,090
Points
113
300€ for it to be printed? That doesn't sound right... especially for only 70m of filament. You could buy a 3D printer for 300€.

Either way, great effort put into the design. I'll have to look into it. :beer:


300€ for 100 Microns PETG print sounds reasonable for me.. That includes postage fees etc. You clold print this host much cheaper w/ ABS or PLA, but I wanted PETG and I'm happy with that :yh:


Rivem

Well-known member
Joined
Feb 16, 2016
Messages
1,241
Likes
423
Points
83
Really nice work! I was not expecting such idea :)
I will also ask my colleague if maybe it is possible to print such host in different price since he have soem 3D printers.
It can be printed much cheaper if you have a printer you can use. Just depends on the filament you want to use. That module at $400 is the real expensive part though.

Joined
Jul 29, 2014
Messages
100
Likes
24
Points
0
I agree that in laserpointers worls 400USD is not that small amount. Maybe some more people would be interested to create a groupbuy? For like 5 pcs?
I'm happy that many hobbysts are our customers but also we can not lower the price too much because we have our distributors and agreements with them :(


Rivem

Well-known member
Joined
Feb 16, 2016
Messages
1,241
Likes
423
Points
83
I agree that in laserpointers worls 400USD is not that small amount. Maybe some more people would be interested to create a groupbuy? For like 5 pcs?
I'm happy that many hobbysts are our customers but also we can not lower the price too much because we have our distributors and agreements with them :(
The price is pretty reasonable for a good RGB setup. It's just a bit scary to put something like that in a portable host where it might break.

I'm sure some members might be interested in that GB offer though. :D

Last edited:

ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,179
Likes
1,090
Points
113
Test setup with 3x 26650 Li-Ion & Matek micro PDB. Controller has a BigClive's "Green" chip and it has whole lotta FX's!!


Video Link >>

EDIT: Setup looks Waaaayyy much better in real life.. FX chip gives amazingly vibrant colors...

Last edited:

RB astro

Super Moderator
Staff member
Joined
Apr 6, 2014
Messages
2,454
Likes
1,323
Points
113
Test setup with 3x 26650 Li-Ion & Matek micro PDB. Controller has a BigClive's "Green" chip and it has whole lotta FX's!!
EDIT: Setup looks Waaaayyy much better in real life.. FX chip gives amazingly vibrant colors...
That's awesome Arctic !
I can imagine how good it looks in real life.
The colours are simply stunning when you view it in low light.

:beer:


ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,179
Likes
1,090
Points
113
I agree that in laserpointers worls 400USD is not that small amount. Maybe some more people would be interested to create a groupbuy? For like 5 pcs?
I'm happy that many hobbysts are our customers but also we can not lower the price too much because we have our distributors and agreements with them :(
Hey Mateusz!
Could Optlasers perhaps do Optional driver board for micro RGB module with pre-installed FX-chip from BigClive, since Clive is selling FX-chips also in batch. That could be very handy for people whos not so good with electronics. And that would save space too. Clive's chip runs smoothly even whitout RC low-pass filter.



And thank you for such great RGB module!! :thanks:

Last edited:

CDBEAM777

Well-known member
Joined
Feb 25, 2010
Messages
1,116
Likes
477
Points
83
AD...you are KILL'EN ME !!!!! :D:D:D

You render skills are beautiful !!! Whereas...I am stuck in the Standard 2D AutoCAD world !!!...( For now )

That is a beautiful design !!! AND...Perhaps...it is time for me to grapple with 3D printing...to give flight to whatever I can imagine !!!....And...I can imagine quite a lot !!!

You can be sure...that when I build the dual RGB ( White Lightning) units....your work ...and that of RB Astro ...will have blazed a trail for me to follow....especially in the electronic control area !!!

But...alas...unless I evolve to the magic of 3D printing...your design will be just stunning vs. the WL units. I still prefer metal...vs. plastic as a material.....I really admire the look of Aluminum vs. plastic......and... Aluminum is a stronger, more robust, superior heat dissipation choice. BUI...the design possibilities with 3D printing...are staggering !!!!....Hmmmmm ?????

A lot to think about !!! :eg::eg:

CDBEAM :tinfoil::tinfoil:

Last edited:
Joined
Jul 29, 2014
Messages
100
Likes
24
Points
0
Hey Mateusz!
Could Optlasers perhaps do Optional driver board for micro RGB module with pre-installed FX-chip from BigClive, since Clive is selling FX-chips also in batch. That could be very handy for people whos not so good with electronics. And that would save space too. Clive's chip runs smoothly even whitout RC low-pass filter.

And thank you for such great RGB module!! :thanks:
That could be possible, but I'm rather thinking of making the uRGB driver even smaller... I can put elements on two sides and use DC-DC instead of linear it is possible but needs real market need. For example we did some signal converters last year and to be honest we sold 1 pcs only, it was just bad choice but it looked promising. Anyway I will consider it but rather we will program it with MCU ourselves if we decide do so ;)


ArcticDude

Super Moderator
Staff member
Joined
Jun 22, 2016
Messages
2,179
Likes
1,090
Points
113
I just noticed that BigClive'a RGB Controller board mounting holes are not in the middle.. So I had to fix mounting for controller board. I also made few more changes to 3D files and updated DL link..

UPDATED:

- New Mount for RGB Controller

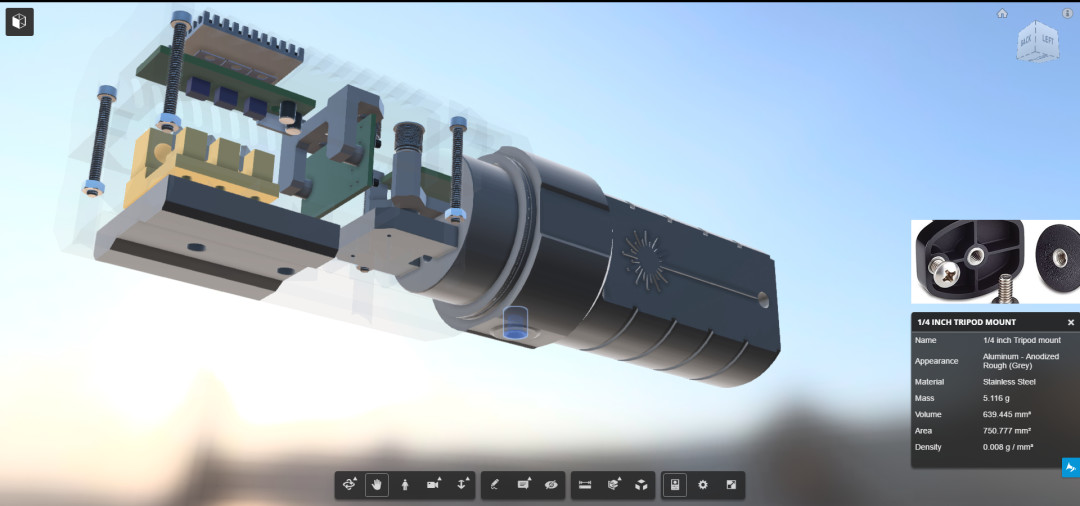

- Insert for 3/4" Tripod mounting
- Top frame mounting
- Battery directions inside the body
