Default Pioneer BDR 203 & 205 SmOC Harvesting tips.

The SmOC is a Small Open Can diode that lives in BDR 203 & 205. Not much is known about this diode when it comes to how hard you can push it and for how long but it is special in it's own right.

some basic information can be found here:

Test - 3.6mm Diode from the Pioneer 203 & 205 Drives

Here are the pros and cons I summarized from Dave's Thread.

Pro's:
1 There is no "line" going through the spot/beam like the LCC's and LOC's diodes have.

2 More efficient than LCC's or LOC's.

3 Stays cooler than LCC's or LOC's.


Con's
1 Open can so dirt can get into it.

2 Smaller than usual diode (3.8mm dia.) so specially machined heat sinks modules or adapters need to be made for them.


Edit: Corrected the 3.6mm dia to be 3.8mm after remeasuring the diode. 3.6mm is the size of hole I machine to make a press fit heat sink for these little guys.



Harvesting Tips.


Harvesting the diode is actually quite easy once you know how.

Step 1. Remove the circuit board off the diode like you would any other.
Step 2. Quickly swipe some solder across the leads to jumper them for static protection. Alternatively you can also attach the leads right away and solder them together for ESD protection.
Step 3. Cover the exit aperture with a small piece of tape.
Step 4. Blow off all the gray heat sink putty with compressed air.

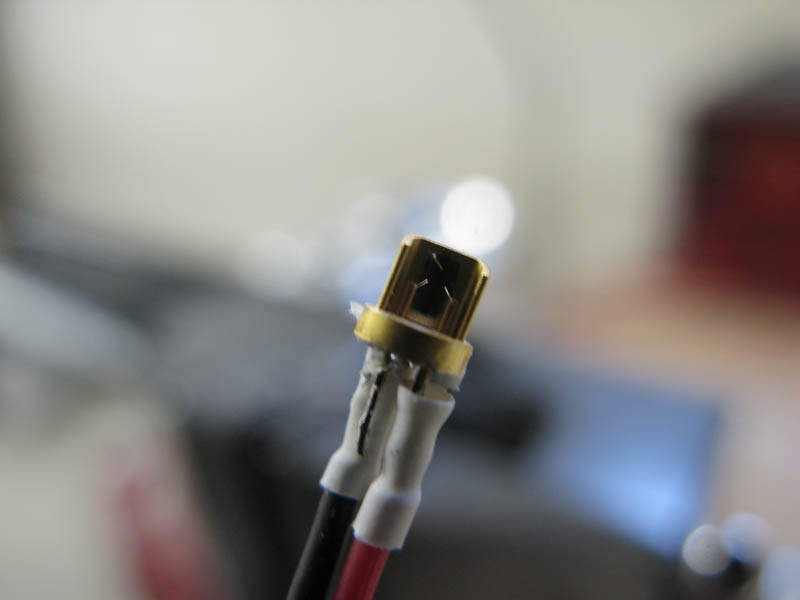

Diode should look like this at this point.

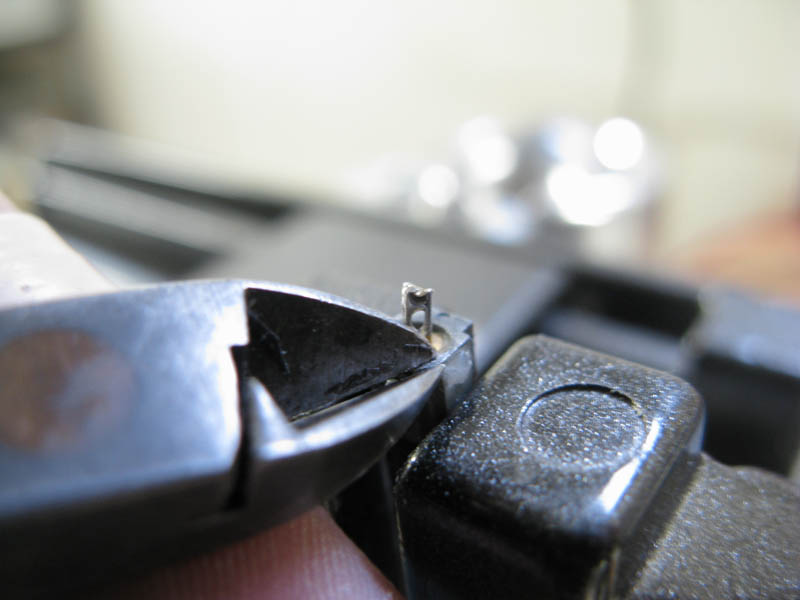

Step 5. Use a set of small wire cutters to grab and peal away the sides of the stock heat sink.


Note: At this point I like to test the diode with 60mA to make sure I didn't kill it yet . It also means I will have some leads attached to hang on to for the next step.

Step 6. Use a razor and work it under the lip of the diode to pry it out of the stock heat sink.




That's it! Another diode liberated from a life of data servitude.
