Default How to extract module from laser pen

I have a laserpen that I want to use in a spirograph, so Im trying to extract the module as intact as possible. The tube can suffer

Do you have some tip of how can I get it?. (I have a dremel multitool that could be useful)

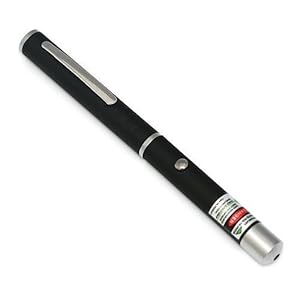

I mean that kind:


__________________
1 x 450nm 1300mW (killed it in 1 week!)
1 x 635nm 330mW
2 x 532nm 100mW
1 x 405nm 500-600mW

Tons of <=100mw R,G,V pens and modules
5 Laser proyectors 300mw
50mw 3 axis homebrew spirograph



Generative laser videolandscapes: laserdelic.com
