Default Stand-alone aixiz

Finally, my DealExtreme Aixiz look-a-likes arrived, so they must be taken apart. ;D

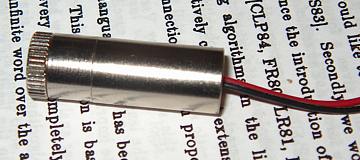

Original (label removed)

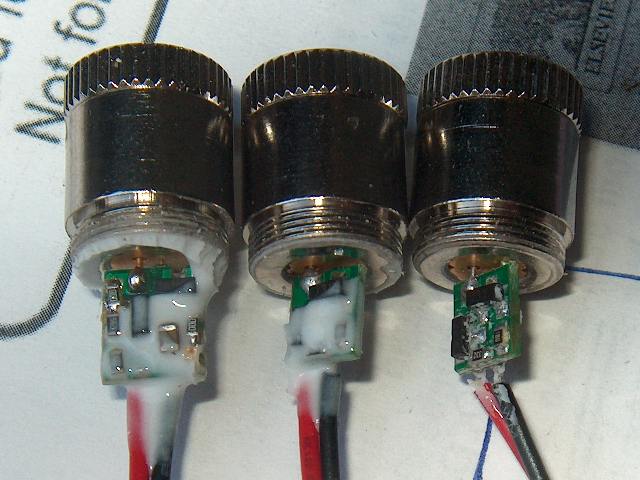

Inside


Strangely enough only one has the infamous yellow led on the driver and two have a smaller driver.

I had an idea that I wanted to put three ag3 batteries inside, but measuring with the calipers, it turned out to be too small. Then I thought why have a driver board at all, when I can have a driver?! :-/ Just a driver, no board

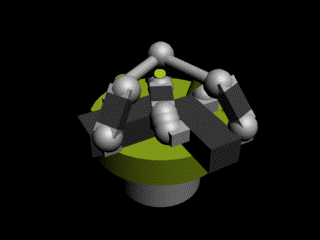

I figured out how I would arrange the electronics so the original circuitry is preserved. I did a simulation in 3dsmax with actual part dimensions, and it turned out it can be done with a profile of only 2.5mm.



After actually building it had an even lower profile. I had to put a spring on the driver to add 2 mm.



I had to drill the rear hole to 2.8mm to fit my long stem microswitch. I had an old battery compartment from a lighter, but it is open on one side so I added another piece of plastic.

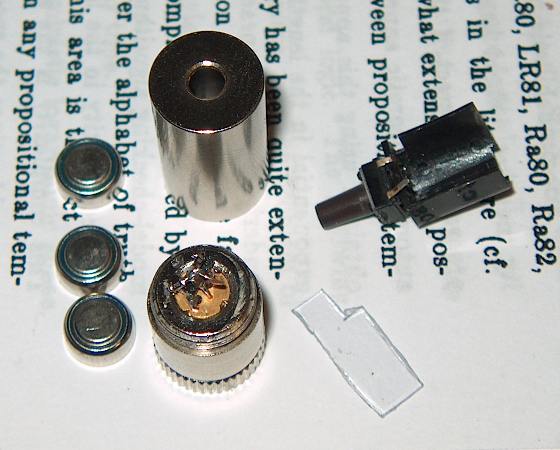

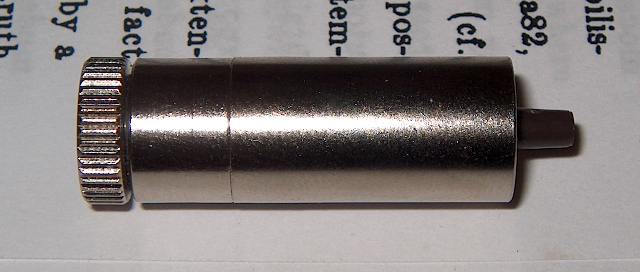

Putting it all together:

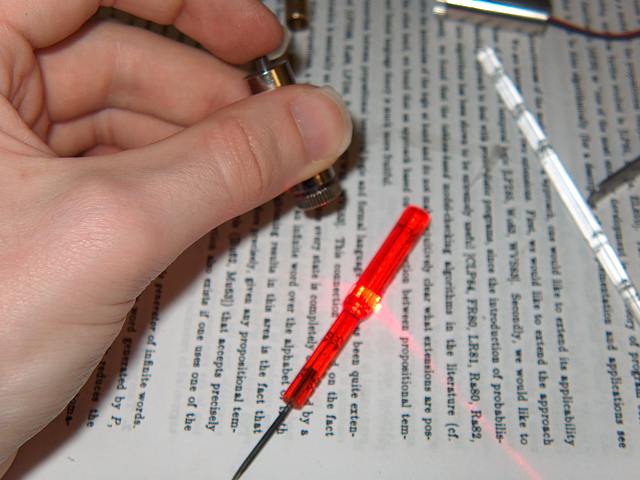

And it works (of course it works, because I tested it during soldering, otherwise I wouldn't be assembling it)



[edit] The output power is something ridiculous. I can see the beam im the dark when holding it at my waist pointing it straight forward. Comparing to my tuned up bullet pointers, I guess 10mW output


__________________
405nm 166mW adjustable lab
405nm 130mW Xtreem
445nm 0.005W@1.7A semi-ghetto peltier-cooled labby-style handheld on batteries (BLL)
532nm 40mW New Wish pointer
630nm 5.00mW stable pointer
630nm <5mW mini (batteris+switch inside Aixiz)
660nm 265mW@0.5A Leadlight
660nm 208mW adjustable lab
808nm ~450mW floodlight, 7-laser, no optics
808nm 140mW IR module
...
Omitted are minor lasers, unworthy lasers, and bare diodes.

Forever wanted: ~505nm laser (and not just one of many lines!)
Zom-B is offline   Reply With Quote







LPF List of Laser Pointer Companies (link opens new window)







Old 05-20-2008, 08:56 PM #2
rog8811's Avatar
Class 3B Laser

Join Date: Jul 2007
Location: Berkshire UK
Posts: 2,749
Rep Power: 193
rog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond repute
rog8811 rog8811 is offline
Class 3B Laser
rog8811's Avatar

Join Date: Jul 2007
Location: Berkshire UK
Posts: 2,749
Rep Power: 193
rog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond reputerog8811 has a reputation beyond repute
Default Re: Stand-alone aixiz

;D I like it! very inventive...

Regards rog8811
__________________
See all of my videos on Vimeo
http://www.vimeo.com/4454150

Lots of tutorials and information on lasers
http://www.rog8811.com/

In the land of the blind the one eyed man..... is most likely holding the laser
rog8811 is offline   Reply With Quote
Old 05-20-2008, 09:00 PM #3
daguin's Avatar
Super Moderator

Join Date: Mar 2008
Location: Sunny Southern California
Posts: 16,636
Rep Power: 1432
daguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond repute
daguin daguin is offline
Super Moderator
daguin's Avatar

Join Date: Mar 2008
Location: Sunny Southern California
Posts: 16,636
Rep Power: 1432
daguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond reputedaguin has a reputation beyond repute
Default Re: Stand-alone aixiz

Now THAT'S cool!

BRAVO!

Peace,
dave
__________________
How To Get Along In and Be Accepted in the Forum

If you got some value out of reading this forum, how about donating $2 to keep it going?
Click Here to donate

Love all, trust a few, do wrong to none.
-William Shakespeare
daguin is offline   Reply With Quote
Old 05-21-2008, 12:14 AM #4
Class 3R Laser

Join Date: Apr 2008
Posts: 2,238
Rep Power: 73
Murudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond repute
Murudai Murudai is offline
Class 3R Laser

Join Date: Apr 2008
Posts: 2,238
Rep Power: 73
Murudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond reputeMurudai has a reputation beyond repute
Default Re: Stand-alone aixiz

That's really cool. All you need to do is find some seriously small, seriously high power batteries and you'll be set

Imagine a burning laser of that size, that would be crazy
Murudai is offline   Reply With Quote
Old 05-21-2008, 12:26 AM #5
pseudolobster's Avatar
Class 3R Laser

Join Date: Jan 2008
Location: BC, Canada
Posts: 1,734
Rep Power: 153
pseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond repute
pseudolobster pseudolobster is offline
Class 3R Laser
pseudolobster's Avatar

Join Date: Jan 2008
Location: BC, Canada
Posts: 1,734
Rep Power: 153
pseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond repute
Default Re: Stand-alone aixiz

Nice!

I've been planning on doing this for idk, half a year now... I've been planning on making this with a fusiondriver, but.. .well... you know.

I did some research into it though, and it seems coin cell batteries can usually only produce something like 10 to 30mA, so it wouldn't work for a burner.

My second thought was that I planned on trying an aerogel capacitor as a power source.. something like 6v, 2 farads.. but I couldn't find a very wide selection of them, it seems very few places sell them and they're quite expensive... not to mention the ones that fit in aixiz modules tend to be 3v..

This has me inspired to look into this again... I hadn't thought of doing the layout in a 3d rendering program though, that's a really good idea. is there any place to download models of standard components, or did you have to make those yourself?
__________________
Custom Text
pseudolobster is offline   Reply With Quote
Old 05-21-2008, 01:21 AM #6
Cereal Eater

Join Date: Dec 2007
Location: Argentina
Posts: 6,333
Rep Power: 331
nikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond repute
Send a message via MSN to nikokapo
nikokapo nikokapo is offline
Cereal Eater

Join Date: Dec 2007
Location: Argentina
Posts: 6,333
Rep Power: 331
nikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond reputenikokapo has a reputation beyond repute
Send a message via MSN to nikokapo
Default Re: Stand-alone aixiz

great job there!! i'd like to see more miniature laser stuff like this
nikokapo is offline   Reply With Quote
Old 05-21-2008, 01:41 AM #7
Bionic-Badger's Avatar
Class 4 Laser

Join Date: Oct 2007
Location: Oregon, USA
Posts: 5,478
Rep Power: 2192
Bionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond repute
Bionic-Badger Bionic-Badger is online now
Class 4 Laser
Bionic-Badger's Avatar

Join Date: Oct 2007
Location: Oregon, USA
Posts: 5,478
Rep Power: 2192
Bionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond repute
Default Re: Stand-alone aixiz

Reminds me of this pathetic little laser pointer that was on top of some pen that was given away at a conference much like the other crap they give out. It was this tiny little laser diode and three button cells. They sure didn't keep the laser bright for long. It had almost the exact same setup as you have there. I ended up taking it apart, but it really never came to much use. It was neat seeing the tiny little spring and lens though.
__________________
You must spread some Reputation around before giving it to <person> again.
Bionic-Badger is online now   Reply With Quote
Old 05-21-2008, 09:16 AM #8
Zom-B's Avatar
Class 2M Laser

Join Date: Mar 2008
Posts: 827
Rep Power: 23
Zom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud of
Zom-B Zom-B is offline
Class 2M Laser
Zom-B's Avatar

Join Date: Mar 2008
Posts: 827
Rep Power: 23
Zom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud of
Default Re: Stand-alone aixiz

I made the 3d components myself. Most are not more than a bunch of colored boxes. The LD was a bit trickier and required boolean CSG.

I doubt the conference giveaway lasers had a driver. most cheap lasers operate with just a limiting resistor. Soldering a driver without the PCB will make the laser incredibly expensive. It took me 20 minutes to solder it like this and I'm a pro.

My batteries will keep running for something like 2-4 hour, just like any other AG3 laser with a driver.
__________________
405nm 166mW adjustable lab
405nm 130mW Xtreem
445nm 0.005W@1.7A semi-ghetto peltier-cooled labby-style handheld on batteries (BLL)
532nm 40mW New Wish pointer
630nm 5.00mW stable pointer
630nm <5mW mini (batteris+switch inside Aixiz)
660nm 265mW@0.5A Leadlight
660nm 208mW adjustable lab
808nm ~450mW floodlight, 7-laser, no optics
808nm 140mW IR module
...
Omitted are minor lasers, unworthy lasers, and bare diodes.

Forever wanted: ~505nm laser (and not just one of many lines!)
Zom-B is offline   Reply With Quote
Old 05-21-2008, 04:05 PM #9
pwnstar's Avatar
Class 2M Laser

Join Date: Sep 2007
Location: NJ, USA
Posts: 712
Rep Power: 36
pwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond repute
Send a message via AIM to pwnstar Send a message via MSN to pwnstar
pwnstar pwnstar is offline
Class 2M Laser
pwnstar's Avatar

Join Date: Sep 2007
Location: NJ, USA
Posts: 712
Rep Power: 36
pwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond reputepwnstar has a reputation beyond repute
Send a message via AIM to pwnstar Send a message via MSN to pwnstar
Default Re: Stand-alone aixiz

your a beast Zom-B!
is that a 635nm laser? I cant imagin the beam being visible if its not.
pwnstar is offline   Reply With Quote
Old 05-21-2008, 04:28 PM #10
Zom-B's Avatar
Class 2M Laser

Join Date: Mar 2008
Posts: 827
Rep Power: 23
Zom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud of
Zom-B Zom-B is offline
Class 2M Laser
Zom-B's Avatar

Join Date: Mar 2008
Posts: 827
Rep Power: 23
Zom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud ofZom-B has much to be proud of
Default Re: Stand-alone aixiz

Definitely 650nm +-10%
__________________
405nm 166mW adjustable lab
405nm 130mW Xtreem
445nm 0.005W@1.7A semi-ghetto peltier-cooled labby-style handheld on batteries (BLL)
532nm 40mW New Wish pointer
630nm 5.00mW stable pointer
630nm <5mW mini (batteris+switch inside Aixiz)
660nm 265mW@0.5A Leadlight
660nm 208mW adjustable lab
808nm ~450mW floodlight, 7-laser, no optics
808nm 140mW IR module
...
Omitted are minor lasers, unworthy lasers, and bare diodes.

Forever wanted: ~505nm laser (and not just one of many lines!)
Zom-B is offline   Reply With Quote
Old 05-21-2008, 04:55 PM #11
Bionic-Badger's Avatar
Class 4 Laser

Join Date: Oct 2007
Location: Oregon, USA
Posts: 5,478
Rep Power: 2192
Bionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond repute
Bionic-Badger Bionic-Badger is online now
Class 4 Laser
Bionic-Badger's Avatar

Join Date: Oct 2007
Location: Oregon, USA
Posts: 5,478
Rep Power: 2192
Bionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond reputeBionic-Badger has a reputation beyond repute
Default Re: Stand-alone aixiz

Oh it definitely was a cheapo driver with a current-limiting resistor soldered to a small PCB board. But I was more commenting on the layout and general arrangement of components you used.
__________________
You must spread some Reputation around before giving it to <person> again.
Bionic-Badger is online now   Reply With Quote
Old 05-22-2008, 06:03 AM #12
Kenom's Avatar
Class 4 Laser

Join Date: May 2007
Posts: 5,629
Rep Power: 304
Kenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond repute
Send a message via MSN to Kenom
Kenom Kenom is offline
Class 4 Laser
Kenom's Avatar

Join Date: May 2007
Posts: 5,629
Rep Power: 304
Kenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond repute
Send a message via MSN to Kenom
Default Re: Stand-alone aixiz

OH see not that's just plain bull that a coin cell wont' work with a burner. I have a host that takes 4 coin cells and it's got a stonetek in it running about 90mw. eats those batteries very quickly. I'll post pictures of it soon.
Kenom is offline   Reply With Quote
Old 05-22-2008, 07:11 AM #13
Kenom's Avatar
Class 4 Laser

Join Date: May 2007
Posts: 5,629
Rep Power: 304
Kenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond repute
Send a message via MSN to Kenom
Kenom Kenom is offline
Class 4 Laser
Kenom's Avatar

Join Date: May 2007
Posts: 5,629
Rep Power: 304
Kenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond reputeKenom has a reputation beyond repute
Send a message via MSN to Kenom
Default Re: Stand-alone aixiz

this little baby is putting out 90mw.

Kenom is offline   Reply With Quote
Old 05-22-2008, 07:47 AM #14
laserrod's Avatar
Class 2 Laser

Join Date: Aug 2007
Location: St Louis
Posts: 341
Rep Power: 97
laserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond repute
Send a message via Yahoo to laserrod
laserrod laserrod is offline
Class 2 Laser
laserrod's Avatar

Join Date: Aug 2007
Location: St Louis
Posts: 341
Rep Power: 97
laserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond reputelaserrod has a reputation beyond repute
Send a message via Yahoo to laserrod
Default Re: Stand-alone aixiz

I want the specs on your tiny titan :

gimee gimee gimee ;D

Very unique
laserrod is offline   Reply With Quote
Old 05-22-2008, 08:16 AM #15
pseudolobster's Avatar
Class 3R Laser

Join Date: Jan 2008
Location: BC, Canada
Posts: 1,734
Rep Power: 153
pseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond repute
pseudolobster pseudolobster is offline
Class 3R Laser
pseudolobster's Avatar

Join Date: Jan 2008
Location: BC, Canada
Posts: 1,734
Rep Power: 153
pseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond reputepseudolobster has a reputation beyond repute
Default Re: Stand-alone aixiz

Quote:
Originally Posted by Kenom
OH see not that's just plain bull that a coin cell wont' work with a burner. I have a host that takes 4 coin cells and it's got a stonetek in it running about 90mw. eats those batteries very quickly. I'll post pictures of it soon.
well... huh.

When I proposed the idea a few months ago I was poo-pooed by everyone saying that coin cells could never produce enough current... what cells did you use? I checked the datasheet for the cr1025's I have and sure enough it says their maximum current output is 30mA. I also had a bunch of people saying it was going to be impossible to point-to-point solder smt components, but I already knew it was doable.
__________________
Custom Text
pseudolobster is offline   Reply With Quote
Old 05-23-2008, 02:27 AM #16
Class 3R Laser

Join Date: Sep 2007
Posts: 1,591
Rep Power: 96
toked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond repute
toked323 toked323 is offline
Class 3R Laser

Join Date: Sep 2007
Posts: 1,591
Rep Power: 96
toked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond reputetoked323 has a reputation beyond repute
Default Re: Stand-alone aixiz

small 1/2 AAA batteries for this stuff here http://www.smallbattery.company.org.uk/sbc_er10250.htm
toked323 is offline   Reply With Quote
Reply





Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


LinkBacks (?)
LinkBack to this Thread: http://laserpointerforums.com/f42/stand-alone-aixiz-26422.html
Posted By For Type Date
Circuits Online - Forum - Show your projects! Part 17. This thread Refback 05-07-2011 07:57 PM










Loading








Green Laser Pointers by Category Blue Laser Pointers by Category Red Laser Pointers by Category
Yellow Laser Pointers by Category Violet Laser Pointers by Category Orange Laser Pointers by Category
Top Laser Pointers by Power - 1 Watt+ Top Laser Pointers by Power - 500mW+ Top Laser Pointers by Power - 250mW+
Laser Pointer Database High Power Laser Pointers Laser Pointer Diodes






Privacy Policy | Advertising Disclaimer | Terms of Use





All times are GMT. The time now is 03:47 AM.


Powered by: vBulletin
Copyright ©2000 - 2017, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO
Privacy Policy | Advertising Disclaimer | Terms of Use
Copyright (C) 2017 Laser Pointer Forums, LLC
