Default Micro-sized custom IR build at 1050mA

This is a laser that I completed a few months ago, but never had an opportunity to present it to the forum.

The laser is housed in a laser made for an airsoft gun. I gutted the internals and drilled out the tailcap and head to fit the components. It uses a standard Aixiz module drilled out for a 9mm diode. The host offers good heatsinking as the head is entirely brass. I have, in fact, left the laser on (by accident of course) with fully charged batteries until the batteries ran out of charge. The laser diode is a 9mm diode from heruursciences, and I call it the "indestructible diode." The diode, not only has been soldered to the Aixiz module, but has both of its pins broken off. I had to perform diode surgery and solder a tiny wire to the pin stub to the negative lead. I'm really surprised it survived all of this The driver is a standard AMC7135 using three 350mA chips, for a total of 1050mA. I haven't checked the actual mA, but from what I recall it is somewhere in that range. The battery is an AW brand lithium 14250, clocking in at 300mAh. The switch is a forward clicky switch with a chrome cap, however it does not have a "strong click." It does not take a lot of force to activate the laser.

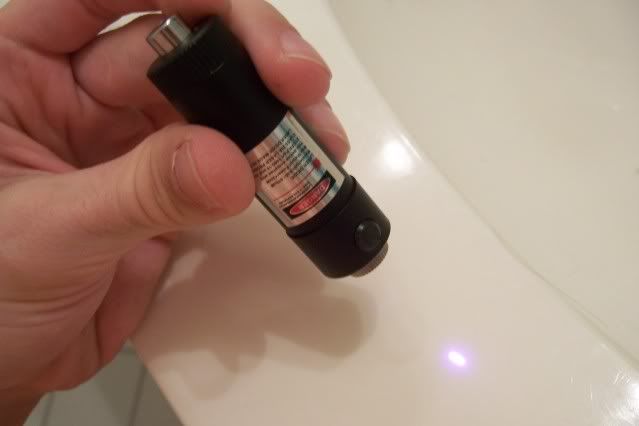

Yes, the laser actually works!

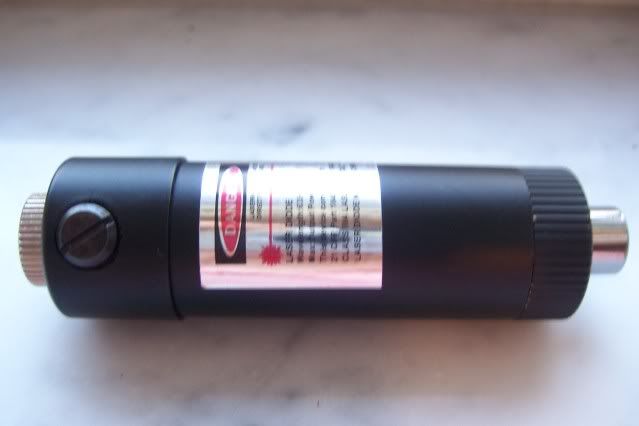

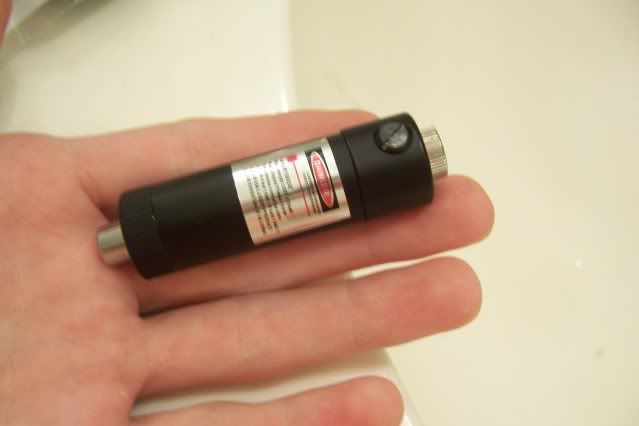

The size is no longer than 3 inches (about 7.5cm) from end to end.

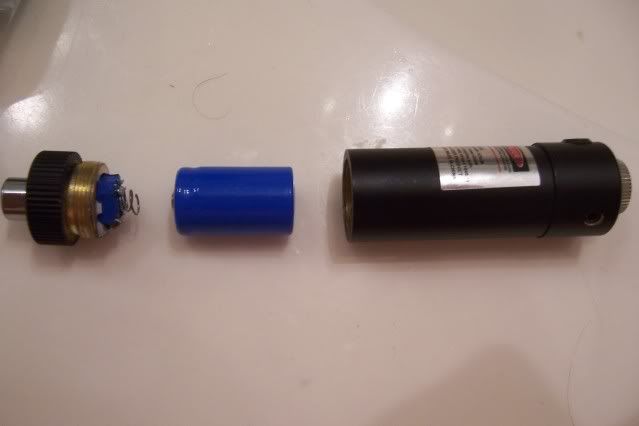

Expanded view.

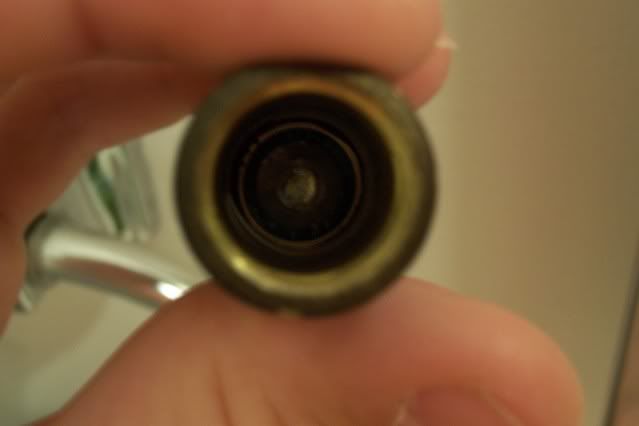

It's a 9mm diode, alright!

Down the battery end of the laser

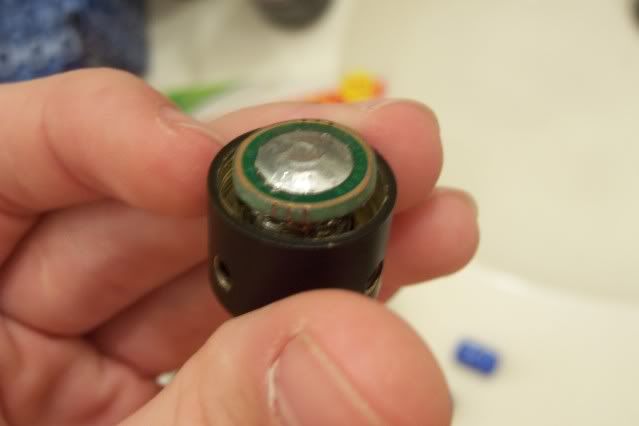

The actual module of the laser. Incredibly compact for it's size.

That is all. Feel free to ask any questions, or give any compliments and suggestions if you wish

Edit:
The host can be found here:
http://cgi.ebay.com/ws/eBayISAPI.dll...m=320378687935
__________________
Current Lasers:
8??nm: 1050mA DIY Micro Sized
658nm: 2mW keychain pointer - DIY 80mA/350mA switchable in Altoids tin - 300mA DIY Micro Sized
635nm: 5mW Focusable Z-Bolt
632.8nm: 10mW Hughes HeNe - 15mW Melles Griot HeNe - 1mW Melles Griot bare tube in a transparent project box
594.1nm: 4mW Meredith Instruments HeNe
543nm: 2mW Melles Griot HeNe - <1mW Multimode 6" HeNe (He's cute!)
532nm: 5mW Lyra-G5 - 70mW DIY by Wannaburn
473nm: 5mW Lab Style
445nm: DIY 650mA in Sonar II Host
405nm: DIY LG 10X at 330mA with Ehgemus host and Microboost - CNI GLP-405 70mW

Visit my blog and my YouTube Channel!

Last edited by Jimmymcjimthejim; 04-09-2010 at 03:27 AM.
Jimmymcjimthejim is online now   Reply With Quote




Old 04-03-2010, 06:49 PM   #2
Class 3R Laser

Morgan's Avatar

Join Date: Feb 2009
Location: Bedfordshire, UK
Posts: 2,179
Rep Power: 100
Morgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond reputeMorgan has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

Hey,

Any ideas on wavelength and mW? Have you tried blasting it at some green crystal assemblies? I got a grab bag a while ago and have been scratching my head as to how to identify them?

Nice little host though! Nice build altogether!

M
__________________
Do you want to build a laser? But, you know nothing about what is needed, right? Then you need to try the, "I Want to Build a Laser", thread! Everything you wanted to know to get started and more! An easy guide as to what you need and why!

Another good guide can be found here from goninanbl00d - "First Build Guide"
(Temporarily Unavailable)

" ... Lasing on a sunny afternoon." The Kinks.

"Lasing on a Sunday Afternoon." Queen.

" Lase-y Sunday afternoon, I've got no mind to worry... " Small Faces.

"... Yes. It died during the night... So I cooked it! It was very nice." My Dad

Assembly services, parts machined and consultations for specialist builds available. PM me if you need something. Thanks.
Morgan is offline   Reply With Quote
Old 04-03-2010, 07:10 PM   #3
Class 3R Laser

Jimmymcjimthejim's Avatar

Join Date: Apr 2008
Location: South Florida
Posts: 1,534
Rep Power: 129
Jimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

I have no clue what the wavelength or power is. I don't have an LPM, but the thing burns like a champ using a VirtualVillage AR coated lens. The wavelength has to be in the 800s-nm range as it is blocked by my laser goggles, which only block up to around 850nm. Unfortunately I don't have any green crystal assemblies, although I'd love to try one out with this puppy
__________________
Current Lasers:
8??nm: 1050mA DIY Micro Sized
658nm: 2mW keychain pointer - DIY 80mA/350mA switchable in Altoids tin - 300mA DIY Micro Sized
635nm: 5mW Focusable Z-Bolt
632.8nm: 10mW Hughes HeNe - 15mW Melles Griot HeNe - 1mW Melles Griot bare tube in a transparent project box
594.1nm: 4mW Meredith Instruments HeNe
543nm: 2mW Melles Griot HeNe - <1mW Multimode 6" HeNe (He's cute!)
532nm: 5mW Lyra-G5 - 70mW DIY by Wannaburn
473nm: 5mW Lab Style
445nm: DIY 650mA in Sonar II Host
405nm: DIY LG 10X at 330mA with Ehgemus host and Microboost - CNI GLP-405 70mW

Visit my blog and my YouTube Channel!
Jimmymcjimthejim is online now   Reply With Quote
Old 04-04-2010, 12:10 AM   #4
Class 1M Laser

AndyR's Avatar

Join Date: Jan 2010
Location: Southern California
Posts: 166
Rep Power: 6
AndyR will become famous soon enoughAndyR will become famous soon enough
Default Re: Micro-sized custom IR build at 1050mA

Very nice, any burning vids anytime soon?
__________________
My Lasers

50 mW Rayfoss waterproof
5 mW cheapie from ebay
200 mW new style Dilda
AndyR is offline   Reply With Quote
Old 04-04-2010, 01:51 AM   #5
Class 3B Laser

Meatball's Avatar

Join Date: Feb 2008
Location: Lincoln, NE
Posts: 2,990
Rep Power: 208
Meatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond reputeMeatball has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

If your camera is picking up the dot this well, there's a good chance you're lasing at 808nm. And at your current level, you might be hitting somewhere near ~700-900mw. But you didn't mention how well it burned. Can you see a faint red rectangle for the dot?
__________________
FIAT LUX

(\__/)
(='.'=)
(")_(")
Meatball is offline   Reply With Quote
Old 04-04-2010, 03:26 AM   #6
Class 3R Laser

Jimmymcjimthejim's Avatar

Join Date: Apr 2008
Location: South Florida
Posts: 1,534
Rep Power: 129
Jimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

Quote:
Originally Posted by Meatball View Post
If your camera is picking up the dot this well, there's a good chance you're lasing at 808nm. And at your current level, you might be hitting somewhere near ~700-900mw. But you didn't mention how well it burned. Can you see a faint red rectangle for the dot?
I wouldn't doubt that the laser is around 800mW. But of course there's no way to tell. It burns excellently. I need to get some more electrical tape so I can give this guy a demo
The laser is faintly visible, and picks up incredibly well on my cell phone camera. There's no doubt that it's in the 800nm range, but it probably isn't spot on 808nm.
__________________
Current Lasers:
8??nm: 1050mA DIY Micro Sized
658nm: 2mW keychain pointer - DIY 80mA/350mA switchable in Altoids tin - 300mA DIY Micro Sized
635nm: 5mW Focusable Z-Bolt
632.8nm: 10mW Hughes HeNe - 15mW Melles Griot HeNe - 1mW Melles Griot bare tube in a transparent project box
594.1nm: 4mW Meredith Instruments HeNe
543nm: 2mW Melles Griot HeNe - <1mW Multimode 6" HeNe (He's cute!)
532nm: 5mW Lyra-G5 - 70mW DIY by Wannaburn
473nm: 5mW Lab Style
445nm: DIY 650mA in Sonar II Host
405nm: DIY LG 10X at 330mA with Ehgemus host and Microboost - CNI GLP-405 70mW

Visit my blog and my YouTube Channel!
Jimmymcjimthejim is online now   Reply With Quote
Old 04-06-2010, 06:55 AM   #7
Class 2 Laser

TheTeslaWarrior's Avatar

Join Date: Aug 2009
Location: California, us
Posts: 404
Rep Power: 56
TheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

lol why did you take the diode out of the host after all a 5 Mega Watt laser should burn great XD
__________________
my wavelengths:

http://laserpointerforums.com/f43/un...0-a-56708.html
TheTeslaWarrior is offline   Reply With Quote
Old 04-09-2010, 03:00 AM   #8
Class 3R Laser

Jimmymcjimthejim's Avatar

Join Date: Apr 2008
Location: South Florida
Posts: 1,534
Rep Power: 129
Jimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

Yeah but unfortunately I had to dismantle the original laser as it burned a hole in my wall. The new laser is much more manageable now
__________________
Current Lasers:
8??nm: 1050mA DIY Micro Sized
658nm: 2mW keychain pointer - DIY 80mA/350mA switchable in Altoids tin - 300mA DIY Micro Sized
635nm: 5mW Focusable Z-Bolt
632.8nm: 10mW Hughes HeNe - 15mW Melles Griot HeNe - 1mW Melles Griot bare tube in a transparent project box
594.1nm: 4mW Meredith Instruments HeNe
543nm: 2mW Melles Griot HeNe - <1mW Multimode 6" HeNe (He's cute!)
532nm: 5mW Lyra-G5 - 70mW DIY by Wannaburn
473nm: 5mW Lab Style
445nm: DIY 650mA in Sonar II Host
405nm: DIY LG 10X at 330mA with Ehgemus host and Microboost - CNI GLP-405 70mW

Visit my blog and my YouTube Channel!
Jimmymcjimthejim is online now   Reply With Quote
Old 04-09-2010, 03:25 AM   #9
Class 2 Laser

TheTeslaWarrior's Avatar

Join Date: Aug 2009
Location: California, us
Posts: 404
Rep Power: 56
TheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond reputeTheTeslaWarrior has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

ah i see one watt is more manageable than five
__________________
my wavelengths:

http://laserpointerforums.com/f43/un...0-a-56708.html
TheTeslaWarrior is offline   Reply With Quote
Old 07-01-2010, 04:42 AM   #10
Class 3R Laser

Jimmymcjimthejim's Avatar

Join Date: Apr 2008
Location: South Florida
Posts: 1,534
Rep Power: 129
Jimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond reputeJimmymcjimthejim has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

Bump of knowledge!
__________________
Current Lasers:
8??nm: 1050mA DIY Micro Sized
658nm: 2mW keychain pointer - DIY 80mA/350mA switchable in Altoids tin - 300mA DIY Micro Sized
635nm: 5mW Focusable Z-Bolt
632.8nm: 10mW Hughes HeNe - 15mW Melles Griot HeNe - 1mW Melles Griot bare tube in a transparent project box
594.1nm: 4mW Meredith Instruments HeNe
543nm: 2mW Melles Griot HeNe - <1mW Multimode 6" HeNe (He's cute!)
532nm: 5mW Lyra-G5 - 70mW DIY by Wannaburn
473nm: 5mW Lab Style
445nm: DIY 650mA in Sonar II Host
405nm: DIY LG 10X at 330mA with Ehgemus host and Microboost - CNI GLP-405 70mW

Visit my blog and my YouTube Channel!
Jimmymcjimthejim is online now   Reply With Quote
Old 02-15-2011, 01:57 PM   #11
Class 2 Laser

Rafa's Avatar

Join Date: Feb 2010
Location: Madrid, Spain
Posts: 438
Rep Power: 13
Rafa is a splendid one to beholdRafa is a splendid one to beholdRafa is a splendid one to beholdRafa is a splendid one to beholdRafa is a splendid one to beholdRafa is a splendid one to beholdRafa is a splendid one to behold
Send a message via MSN to Rafa
Default Re: Micro-sized custom IR build at 1050mA

Great build, +1
How long does the battery last?
__________________
Lasers:
~100mW 405nm from Erdabyz (L) akshakj <- Died once, working again. vid 1 vid 2(repaired)
~980mW 445nm in Ehgemus RPL style host, thanks to MR. DAGUIN vid
~25mW 532nm (potmoded) from DX (dead now, switch died and repair failed...)not moded vid
~50mW 532nm "star cap" style found in the bus. Yeah, lol.
~6mW 635nm diode laser pic 1 pic 2
~250mW 650nm extracted from 20x DVD burner. <- dead vid 1 vid 2
~130mW 650nm extracted from 16X DVD burner. <$15 to make! LPF thread

~100mW 780mn extracted from 52x CD burner. <- dead cremation vid

My Youtube channel
Rafa is offline   Reply With Quote
Old 05-16-2011, 07:56 PM   #12
Class 3B Laser

Wolfman29's Avatar

Join Date: Jan 2011
Location: Scottsdale, AZ
Posts: 3,793
Rep Power: 209
Wolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

How did you manage to fit the 9mm size in the standard Aixiz module? Or am I missing something? I want to get a ~1W IR build, but the stumbling block in front of me is that the only 5.6mm IRs are at most 300mW....
Wolfman29 is online now   Reply With Quote
Old 05-16-2011, 07:59 PM   #13
Class 1M Laser

Join Date: Nov 2010
Location: 60 min away from Dortmund
Posts: 182
Rep Power: 8
Machro is a glorious beacon of lightMachro is a glorious beacon of lightMachro is a glorious beacon of lightMachro is a glorious beacon of lightMachro is a glorious beacon of light
Default Re: Micro-sized custom IR build at 1050mA

He said he drilled the aixiz module out to fit 9mm
__________________
50mw Budgetgadgets CR2 Review

Last edited by Machro; 05-16-2011 at 08:00 PM. Reason: context
Machro is offline   Reply With Quote
Old 05-16-2011, 08:00 PM   #14
Class 3B Laser

Wolfman29's Avatar

Join Date: Jan 2011
Location: Scottsdale, AZ
Posts: 3,793
Rep Power: 209
Wolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

Well I got that part, but then aren't we stuck without the press-fit to the Aixiz module? Because the Aixiz module has two different diameters for the diode so that it is press-fit.
Wolfman29 is online now   Reply With Quote
Old 05-16-2011, 08:05 PM   #15
Class 1M Laser

Join Date: Nov 2010
Location: 60 min away from Dortmund
Posts: 182
Rep Power: 8
Machro is a glorious beacon of lightMachro is a glorious beacon of lightMachro is a glorious beacon of lightMachro is a glorious beacon of lightMachro is a glorious beacon of light
Default Re: Micro-sized custom IR build at 1050mA

Maybe he secured it with thermal adhesive ?
__________________
50mw Budgetgadgets CR2 Review
Machro is offline   Reply With Quote
Old 05-16-2011, 08:14 PM   #16
Class 3B Laser

Wolfman29's Avatar

Join Date: Jan 2011
Location: Scottsdale, AZ
Posts: 3,793
Rep Power: 209
Wolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond reputeWolfman29 has a reputation beyond repute
Default Re: Micro-sized custom IR build at 1050mA

Possibly. And that may solve the problem of a case-negative build, actually....
Wolfman29 is online now   Reply With Quote
Reply

Tags
ir infrared 9mm aixiz








Database of Laser Pointer Companies




Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On









Loading


laser pointer forums top













Top 50 Laser Pointer Companies - Green Lasers Top 50 Laser Pointer Companies - Blue Lasers Top 50 Laser Pointer Companies - Red Lasers
Top 50 Laser Pointer Companies - Yellow Lasers Top 50 Laser Pointer Companies - Purple Lasers Top 50 Laser Pointer Companies - Orange Lasers
Top Laser Pointers by Power - 1 Watt+ Top Laser Pointers by Power - 500mW+ Top Laser Pointers by Power - 250mW+
Laser Pointer Database High Power Laser Pointers Laser Pointer Diodes




All times are GMT. The time now is 08:33 AM.


Powered by: vBulletin
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO
Privacy Policy | Advertising Disclaimer | Terms of Use
Copyright (C) 2014 Laser Pointer Forums, LLC
